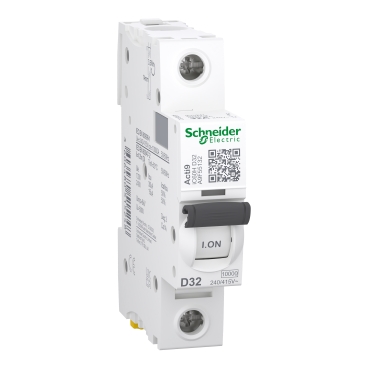

Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 1P, 32A, D curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Home ProductsCircuit ProtectionActi 9Miniature circuit breaker (MCB)

Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 1P, 32A, D curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Item Number: A9F55132

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Depth icon

Depth78.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

Acti9

Product or component type

miniature circuit-breaker

Sustainable offer status

Green Premium product

Physical

[in] rated current

32 A

Control type

toggle

Local signalling

trip indicator

Mounting mode

clip-on

Mounting support

rail

Height

85 mm

Width

18 mm

Depth

78.5 mm

Net weight

0.125 kg

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

single terminal (top or bottom) 1-35 mm² rigid|single terminal (top or bottom) 1-25 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Standards

EN/IEC 60947-2|EN/IEC 60898-1

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1705002EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

132

Product name

Disbo iC60

Device short name

iC60H

Poles description

1P

Number of protected poles

1

Network type

AC/DC

Trip unit technology

thermal-magnetic

Curve code

D

Breaking capacity code

H

Breaking capacity

20 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2|15 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2|10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1|42 kA Icu at 10...60 V AC 50/60 Hz conforming to EN/IEC 60947-2|30 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2|15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2

Utilisation category

category A conforming to EN/IEC 60947-2

Network frequency

50/60 Hz

Magnetic tripping limit

12 x In +/- 20 %

[ics] rated service breaking capacity

21 kA 50 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz|15 kA 50 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz|7.5 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz|7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz|20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC|10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC

Limitation class

3 conforming to EN/IEC 60947-2

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

yes

Connection pitch

18 mm between devices

9 mm pitches

2

Total power losses

2.8 W

Power losses per pole

2.8 W

Provision for padlocking

padlockable

Tightening torque

3.5...3.5 N.m top or bottom

Earth-leakage protection

separate block

Compatibility code

iC60

Pollution degree

3 conforming to EN/IEC 60947-2

Tropicalisation

2 conforming to IEC 60068-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.800 cm

Package 1 width

7.500 cm

Package 1 length

9.000 cm

Package 1 weight

123.000 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.000 cm

Package 2 width

9.500 cm

Package 2 length

22.000 cm

Package 2 weight

1.537 kg

Unit type of package 3

S03

Number of units in package 3

132

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

17.450 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
