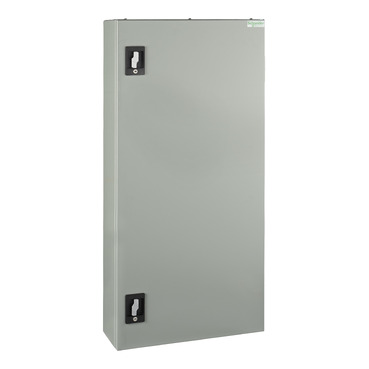

Acti9, MB Encapsulated distribution board, 72 poles, 250A no main switch, 18/27mm, IP42, grey

Home ProductsCircuit ProtectionActi 9MB Encapsulated distribution board

Acti9, MB Encapsulated distribution board, 72 poles, 250A no main switch, 18/27mm, IP42, grey

Item Number: MB272EH0

Datasheet

Product Dimensions

Width icon

Width580 mm

Height icon

Height1200 mm

Depth icon

Depth235 mm

Specifications

Design

Range

Acti9

Product or component type

distribution board

Device application

distribution

Physical

Provided equipment

pole filler| circuit schedule card| enclosure| door| removable gland plates| keys| SAU chassis|2 earth/neutral terminal block - top and bottom 165 A| DIN rail

[ue] rated operational voltage

415 V

[ie] rated operational current

250 A

Number of poles

60 x 18 mm|12 x 27 mm

Height

1200 mm

Width

580 mm

Depth

235 mm

Ip degree of protection

IP42

Others

Package 1 bare product quantity

1

Product name

Acti9 encapsulated DB

Device short name

MB

Enclosure type

standard

Door type

external plain

Network frequency

50 Hz

Breaking capacity

25 kA

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Enclosure mounting

surface

Poles description

3P + N

Enclosure material

steel

Enclosure material

steel

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

25 cm

Package 1 width

60 cm

Package 1 length

121 cm

Package 1 weight

41 kg
