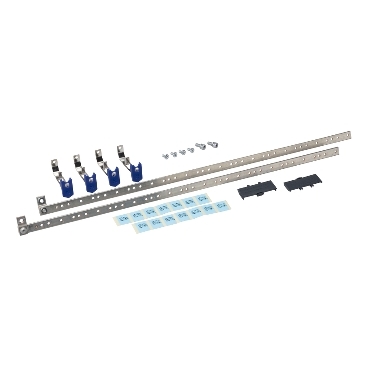

Acti9 DB, Isobar B neutral bar, 1N, for distribution board, 18 ways

Acti9 DB, Isobar B neutral bar, 1N, for distribution board, 18 ways

Item Number: SEA9NB18

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Product or component type

neutral bar

Product destination

distribution board

Surface treatment

epoxy

Surface finish

powder paint

Physical

[ie] rated operational current

250 A at 400/415 V AC

Provided equipment

neutral bar|busbar link 4 |cover

Ip degree of protection

IP2X internal conforming to BS EN 60529|IP3x external conforming to BS EN 60529

Ik degree of protection

IK05 conforming to BS EN 60529

Height

862 mm

Depth

139 mm

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...80 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1602010EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Enclosure type

standard

Door type

overall

Breaking capacity

25 kA

Poles description

3P + N

Protection device name

iC60H

Number of ways

18 ways outgoer

Enclosure material

steel

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.5 cm

Package 1 width

70.0 cm

Package 1 length

8.5 cm

Package 1 weight

780.0 g

Halogen content performance

Halogen free plastic parts product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
