Specifications
Design
Range
Acti9
Product or component type
emergency light test kit
Device application
emergency lighting
Physical
Provided equipment
- 1 contactor
- 1 relay
- 1 selector switch
- 1 DIN rail
[in] rated current
25 A
Rated voltage
230...240 V AC
Control type
selector switch 3 positions
Connections - terminals
cable with cable end
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Accessory / separate part category
enclosure accessory
Pole contact composition
2 NC
Time delay
- 0.1...10 h
- factory set to 2 hrs
Total number of 18 mm modules
5
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.6 cm
Package 1 width
16.6 cm
Package 1 length
17.6 cm
Package 1 weight
546.0 g
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Recycled metal content at cr level
0
Removable battery
N/A
Minimum percentage of recycled plastic content
0
Frequently Asked Questions
Is PBELKIT4 an emergency lighting kit ?
Hide Show
The PBELKIT4 is a emergency lighting kit.
It consists of 4 normally closed (N/C) contacts with selector switch.

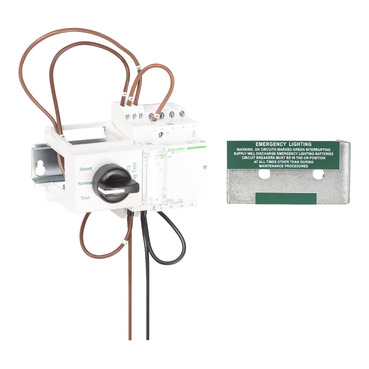

PBELKIT 4
(4N/C) MB / MD Panelboard Add On Kits
- 4 N/C Contactor 25A/240VAC
- 3 position selector switch
- emergency lighting label*
- green marker strip for marked circuits
- delay timer 0.1-10hrs (2hrs factory setting)*
- auxiliary bracket
It consists of 4 normally closed (N/C) contacts with selector switch.
PBELKIT 4
(4N/C) MB / MD Panelboard Add On Kits
- 4 N/C Contactor 25A/240VAC
- 3 position selector switch
- emergency lighting label*
- green marker strip for marked circuits
- delay timer 0.1-10hrs (2hrs factory setting)*
- auxiliary bracket
What is the part number for a replacement selector switch used in PBELKIT2 and PBELKIT4 ?
Hide Show
Part number for the replacement selector switch is
ZB5AD5 - Black Selector switch head Ø22 3-position spring return
For further information, please visit https://www.se.com/au/en/product/ZB5AD5/black-selector-switch-head-%C3%B822-3-position-spring-return/
ZB5AZ105 - Single contact block with body/fixing collar 1NO+1NC screw clamp terminal
For further information, please visit https://www.schneider-electric.us/en/product/ZB5AZ105/single-contact-block-with-body-fixing-collar-1no%2B1nc-screw-clamp-terminal
ZB5AD5 - Black Selector switch head Ø22 3-position spring return
For further information, please visit https://www.se.com/au/en/product/ZB5AD5/black-selector-switch-head-%C3%B822-3-position-spring-return/
ZB5AZ105 - Single contact block with body/fixing collar 1NO+1NC screw clamp terminal
For further information, please visit https://www.schneider-electric.us/en/product/ZB5AZ105/single-contact-block-with-body-fixing-collar-1no%2B1nc-screw-clamp-terminal
