Specifications
Design
Range
Acti9
Product or component type

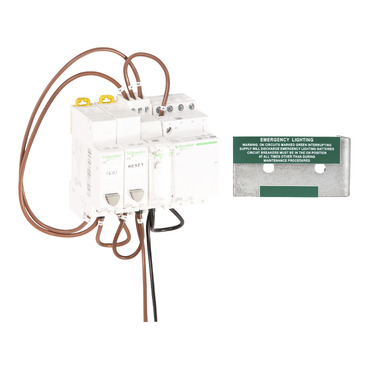

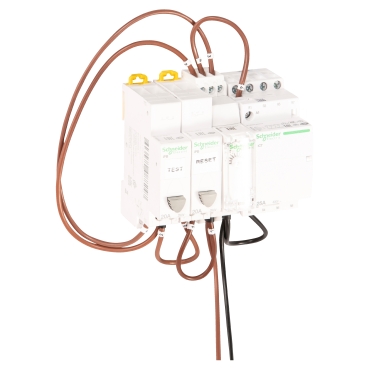

emergency light test kit
Device application
emergency lighting
Physical
Provided equipment
- 1 contactor
- 1 relay
- 2 push buttons
- 1 DIN rail
[in] rated current
25 A
Rated voltage
230...240 V AC
Control type
1 push-button
Connections - terminals
cable with cable end
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Accessory / separate part category
enclosure accessory
Pole contact composition
4 NC
Time delay
- 0.1...10 h
- factory set to 2 hrs
Total number of 18 mm modules
5
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.0 cm
Package 1 width
20.0 cm
Package 1 length
20.0 cm
Package 1 weight
580.0 g
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Recycled metal content at cr level
0
Removable battery
N/A
Minimum percentage of recycled plastic content
0
