Acti9, Contactor, ICT 100A 2NO 220...240V 50Hz

Item Number: A9C20882

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width54 mm

Height icon

Height85 mm

Depth icon

Depth60 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

iCT

Range

Acti9

Product or component type

contactor

Device application

heating-low inductive load

Product compatibility

iACTs|iACTp|iATEt|iACTc

Market segment

small commercial|residential

Warranty

18 months

Physical

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-5...60 °C

Standards

UTE C 61-481|IEC 61095|EN 61095

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

[ie] rated operational current

100 A AC-7A

Control type

remote control

[ue] rated operational voltage

250 V AC 50 Hz

Control signal type

maintained

Local signalling

action indicator

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

85 mm

Width

54 mm

Depth

60 mm

Electrical durability

30000 cycles EN 61095 250 V 16 A AC 50 Hz AC-7A|30000 cycles UTE C 61-481 250 V 6 A AC 50 Hz AC-7A|30000 cycles IEC 61095 250 V AC 50 Hz AC-7A

Connections - terminals

control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid|control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid|control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible|power circuit: tunnel type terminals1 cable(s) 6-35 mm² solid or flexible

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP110308EN

Circularity profile

N/A

Others

Noise level

30 dB

Operating altitude

2000 m

Package 1 bare product quantity

1

Package 2 bare product quantity

4

Package 3 bare product quantity

24

Pollution degree

2

Heat dissipation

2.1...2.1 W at 50/60 Hz

Tropicalisation

2 conforming to EN 60947-4-1

Product name

Acti9 iCT

Device short name

iCT

Poles description

2P

Pole contact composition

2 NO

Network type

AC

Utilisation category

AC-1 conforming to EN 60947-4-1|AC-7A conforming to EN 61095|AC-7A conforming to IEC 61095|AC-7A conforming to UTE C 61-481|AC-1 conforming to IEC 60947-4-1

[uc] control circuit voltage

220...240 V AC 50 Hz

Network frequency

50 Hz

Maximum power

AC-7A: 2.1 W at 250 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz

[uimp] rated impulse withstand voltage

4 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

6.5...6.5 VA

Inrush power in va

53 VA

9 mm pitches

6

Total power losses

18 W

Power losses per pole

9 W

Tightening torque

power circuit: 3.5...3.5 N.m|control circuit: 0.8...0.8 N.m A1 / A2

Compatibility code

iCT

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

11.200 cm

Package 1 length

12.200 cm

Package 1 weight

351.000 g

Unit type of package 2

BB1

Number of units in package 2

4

Package 2 height

11.500 cm

Package 2 width

12.600 cm

Package 2 length

25.000 cm

Package 2 weight

1.485 kg

Unit type of package 3

S03

Number of units in package 3

24

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

9.285 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Bvb url

https://byggvarubedomningen.se/

Scip number

6763a476-30bc-4d05-a4bb-93f8d65c3771

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

474.133057150299
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Certificates (MSDS)

  • Declaration of Conformity

Acti9 ICT 100A contactor 2NO - 3D CAD
ZIP

Acti9 ICT 100A contactor 2NO - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 737 KB
Acti9 iCT - Contactors - Product Environmental Profile
ZIP

Acti9 iCT - Contactors - Product Environmental Profile

VERSION

3.0

DATE

08 Jan 2025

REVISION

3.0

DOWNLOAD (ZIP) 320.4 KB

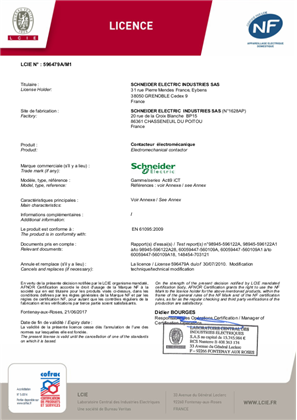

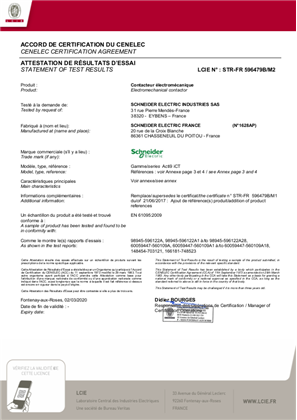

NF certificate LCIE
ZIP

NF certificate LCIE

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 559.1 KB

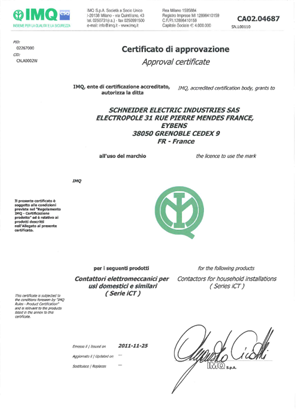

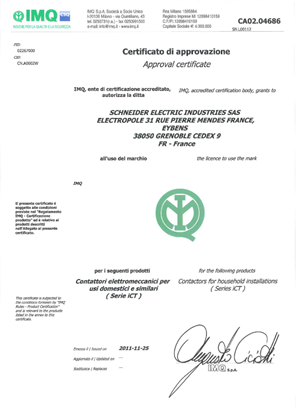

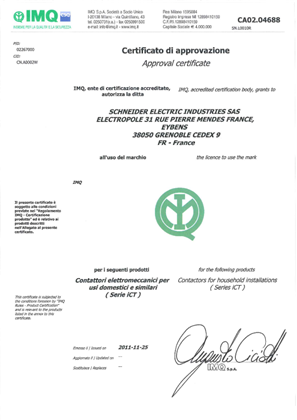

IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
NF certificate LCIE
ZIP

NF certificate LCIE

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 731 KB
LCIE certificate
ZIP

LCIE certificate

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

04 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 864.4 KB

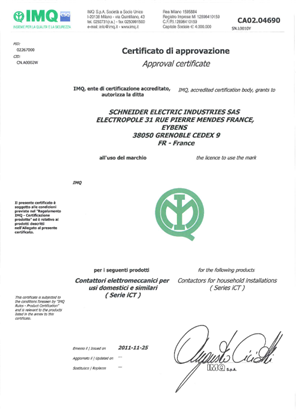

IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 650.8 KB

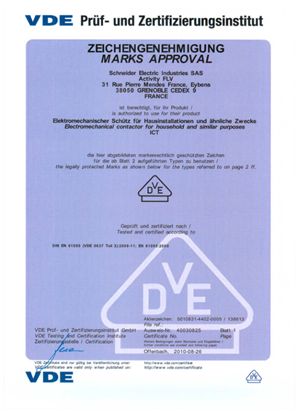

VDE certificate
ZIP

VDE certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 647.8 KB
IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 943.3 KB
IMQ certificate
ZIP

IMQ certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 829.9 KB

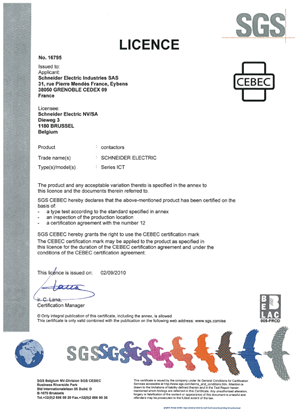

CEBEC certificate
ZIP

CEBEC certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.2 MB

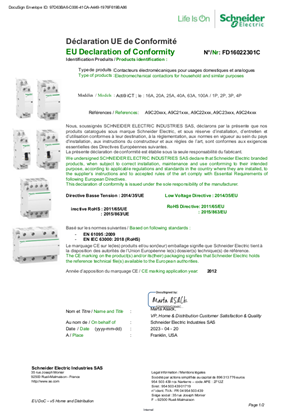

EU Declaration FD16022301C for Contactor Acti9 iCT
