Specifications
Design
Range of product
Range
Product or component type
Device application
- load control
- breaker status monitoring
- basic energy metering E
Market segment
- buildings
- small commercial
Warranty
Physical
Protection type
- against reverse polarity for auxiliary supply
- against reverse polarity for input
- overvoltage at 33 V DC for digital output
Inrush current
- 0.5 A for digital output
- 7 A for power supply
Local signalling
- communication: 1 LED (yellow)
- status: 1 LED (green, orange and red)
Type of setting
- Modbus address 01...99 for address encoders
- reset for address encoders
- reset for plug in, plug out the auxiliary supply
Mounting position
Connections - terminals
- spring-loaded terminal Ti24 qty: 11 for digital input/output, ordered separately
- plug-in connector qty: 1 for supply circuit
- plug-in connector qty: 1 for communication bus
Clamping connection capacity
- 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible with cable end for communication bus
- 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible without cable end for communication bus
- 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid with cable end for communication bus
- 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid without cable end for communication bus
- 1 x 0.2...1 x 1.5 mm², flexible with cable end for control
- 1 x 0.2...1 x 1.5 mm², flexible without cable end for control
- 1 x 0.2...1 x 1.5 mm², rigid with cable end for control
- 1 x 0.2...1 x 1.5 mm², rigid without cable end for control
- 2 x 0.2...2 x 1.5 mm², flexible with cable end for supply circuit
- 2 x 0.2...2 x 1.5 mm², flexible without cable end for supply circuit
- 2 x 0.2...2 x 1.5 mm², rigid with cable end for supply circuit
- 2 x 0.2...2 x 1.5 mm², rigid without cable end for supply circuit
Wire stripping length
- control: 10 mm
- supply circuit: 7 mm
- communication bus: 7 mm
Communication network type
Height
Width
Depth
Net weight
Provided equipment
- set of 1 bus connector
- set of 1 power supply connector
- set of 2 locking clips
Range compatibility
- Acti 9 iTL auxiliary
- Linergy Linergy FM
- Acti 9 iOF+SD 24
- Acti 9 iACT24
- Acti 9 iATL24
- PowerLogic pulse output meter
- Acti 9 RCA iC60
- Acti 9 Acti9 iCT auxiliary
- Acti 9 Acti9 iC60
- Acti 9 Acti9 iID
- Acti 9 Acti9 iSW-NA
- Acti 9 Acti9 iDPN Vigi
- Acti 9 Acti9 C40
- Multi9 Multi9 C60
- Acti 9 Acti9 DT40
- Acti 9 Acti9 DT60
- Acti 9 Acti9 I-NA
- Acti 9 Acti9 ITG40
- Acti 9 Acti9 iDPN
- Acti 9 Acti9 Reflex iC60 Ti24 connector
Ip degree of protection
Ik degree of protection
Environmental characteristic
- corrosive 3C2 conforming to IEC 60721-3-3
- salt mist 2 conforming to IEC 60068-2-52
Relative humidity
Ambient air temperature for operation
Ambient air temperature for storage
Standards
- IEC 61010-2-201
- IEC 61010-1
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Package 1 bare product quantity
Package 2 bare product quantity
Product name
Device short name
Connected auxiliaries
Group of channels
Maximum supply current
[us] rated supply voltage
Connectivity to devices
- digital input and output
- pulse output meter
Communication service
Web server
Application specific i/o
- pulse totalising counter
- pulse converter
Immunity to microbreaks
Reset
- factory reset on front face
- by booted push-button
- by address encoder
- by plug in, plug out the power supply
Input/output type
Input type
Maximum permanent current
Electronic filtering time
Output type
Maximum voltage drop
Location of connection
9 mm pitches
Commissioning interface
Compatibility code
Pollution degree
Electromagnetic compatibility
- resistance to electrostatic discharge (air discharge), class B, 8 kV, conforming to IEC 61000-4-2
- resistance to electrostatic discharge (contact discharge), class B, 4 kV, conforming to IEC 61000-4-2
- resistance to radiated electromagnetic fields (80 MHz...3 GHz), class A, 10 V/m, conforming to IEC 61000-4-3
- power supply: resistance to radiated electromagnetic fields (1.4…6 GHz), class A, 3 V/m, conforming to IEC 61000-4-3
- power supply: resistance to fast transient (5...100 kHz), class B, 2 kV, conforming to IEC 61000-4-4
- input/output: resistance to fast transient, class B, 1 kV, conforming to IEC 61000-4-4
- communication bus: resistance to fast transient (0.15...80 MHz), class B, 1 kV, conforming to IEC 61000-4-4
- conducted EMC (0.15...80 MHz), class A, 3 V, conforming to IEC 61000-4-6
- conducted emission (0.15...30 MHz), class B, conforming to IEC 61326-1
- conducted emission (0.15...30 MHz), class B, conforming to CISPR 11
- radiated emission (30...6000 MHz), class B, conforming to IEC 61326-1
- radiated emission (30...6000 MHz), class B, conforming to CISPR 11
- power supply: surges (DM coupling 42 Ohm), class B, 1 kV, conforming to IEC 61000-4-5
- power supply: surges (CM coupling 42 Ohm), class B, 2 kV, conforming to IEC 61000-4-5
- communication bus: surges (CM coupling 2 Ohm), class B, 1 kV, conforming to IEC 61000-4-5
Vibration resistance
Shock resistance
Fire resistance
- other parts: 650 °C ( 30 s ) conforming to IEC 60695-2-10
- on connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2-10
Tropicalisation
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Scip number
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Other technical guide
-
Environmental Disclosure
-
End of Life Manual
-
Installation Instruction
-
Data Bulletin
-
Operating Manuals
-
Application Notes
-
Declaration of Conformity
-
Firmware - History, Utility & Others
Smart Panels: Embrace the future of power distribution (eBrochure)
VERSION
1.0
DATE
17 Apr 2019
REVISION
1.0
Smart Panels - Connect your buildings to energy savings
VERSION
1.0
DATE
26 May 2016
REVISION
1.0
Smart Panels - Connect your buildings to energy savings
VERSION
1.0
DATE
06 Mar 2016
REVISION
1.0
EcoStruxure I/O Smart Link - User Guide
VERSION
5.0
DATE
27 Feb 2025
REVISION
5.0
Acti9 Smartlink Ethernet Communication System - User Manual
VERSION
2.1
DATE
27 Jun 2024
REVISION
2.1
Acti 9 Smartlink Modbus Communication System - User Manual
VERSION
2.1
DATE
26 Jun 2024
REVISION
2.1
Acti9 Smartlink Modbus - User Manual
VERSION
1.0
DATE
18 Jun 2024
REVISION
1.0
PowerTag System - Design and Commissioning Guide
VERSION
1.0
DATE
03 Nov 2022
REVISION
1.0
EU Declaration - FD16051101A Acti 9 Smartlink A9XMEA08
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0

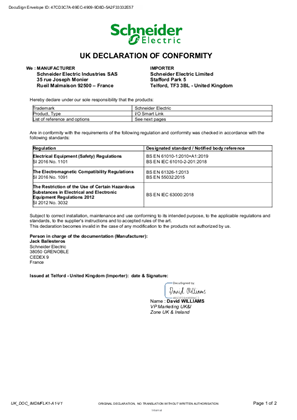

UK Declaration of conformity
VERSION
1.0
DATE
13 Oct 2023
REVISION
1.0
EU Declaration of Conformity
VERSION
1.0
DATE
13 Oct 2023
REVISION
1.0
Frequently Asked Questions
How do you change the Modbus device number on the master Smartlink SI B controller (either in the web page or through the EcoStruxure Power Commission software) from 255 to a lower number?
Hide ShowChange the Modbus device number on the master Smartlink SI B controller from 255 to a lower number
Product Line:
Acti 9 Smartlink
Environment:
Smartlink SI B
Resolution:
The Smartlink SI B (A9XMZA08) has a fixed Modbus Address of 255, it is not possible to change it.
The Smartlink - Modbus RS485 slave (A9XMSB11) address can be configure in the range of 1 to 99. You can set the address adjusting the two thumbwheels:
-The left-hand thumbwheel sets the tens.
-The right-hand thumbwheel sets the units.
Smartlink SI B (A9XMZA08) user guide:
https://download.schneider-electric.com/files?p_Doc_Ref=DOCA0004EN&p_enDocType=User+guide&p_File_Name=DOCA0004EN-06.pdf
