Acti9, Communication Module, Cloud Connected

Home ProductsCircuit ProtectionActi 9Communication Module

Acti9, Communication Module, Cloud Connected

Item Number: A9XELC10

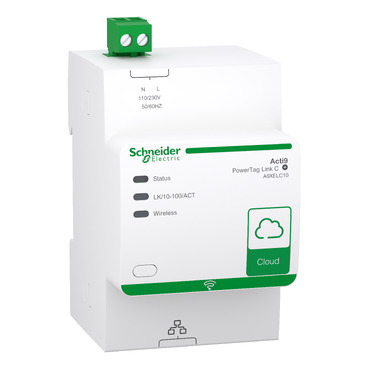

This Acti9 PowerTag Link C is a smart communication module. It is designed for basic energy metering and laod alarming. Up to 20 wireless devoices can be connected on it.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width54 mm

Height icon

Height85 mm

Depth icon

Depth62 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

smart communication module

Device application

basic energy metering|load alarming

Sustainable offer status

Green Premium product

Physical

Protection type

overvoltage at 1 kV for ETHERNET|overvoltage at 0.5 kV for auxiliary supply

Inrush current

3 A

Mounting position

horizontal/vertical on DIN rail

Connections - terminals

RJ45 connector qty: 1 for ETHERNET, ordered separately|plug-in connector qty: 1 for supply circuit

Clamping connection capacity

0.2...1.5 mm², rigid for supply circuit|0.2...1.5 mm², flexible for supply circuit|0.2...1.5 mm², flexible with ferrule for supply circuit

Wire stripping length

supply circuit: 7 mm

Height

85 mm

Width

54 mm

Depth

62 mm

Net weight

133 g

Range compatibility

Acti 9 PowerTag|ComPact PowerTag

Ip degree of protection

IP20|IP40 (modular enclosure)

Environmental characteristic

corrosive 3C2 conforming to IEC 60721-3-3|salt mist 2 conforming to IEC 60068-2-52

Relative humidity

93 % at 40 °C

Ambient air temperature for operation

-25...55 °C

Ambient air temperature for storage

-40...85 °C

Standards

EN 300-328|EN 301-489-1|EN 301-489-17|EN/IEC 60950-1

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1604024

Circularity profile

ENVEOLI1604024

Others

Commercial status history

SESA54230 | Wed Mar 20 23:58:00 EDT 2024 | From Unitary Local | From 08 to 19

Package 1 bare product quantity

1

Package 2 bare product quantity

36

Product name

Acti9 PowerTag Link

Device short name

PowerTag Link C

Connected auxiliaries

up to 20 wireless devices

[us] rated supply voltage

110...230 V AC + 15 %

Supply voltage limits

19.2...28.8 V

Connectivity to devices

wireless energy sensor

Upstream connectivity

cloud

Communication service

Ethernet

Transmission support medium

radio frequency 2.4-2.4835 GHz PowerTag 20

User interface

smartphone app

Immunity to microbreaks

10 ms

Reset

factory reset on front face

Location of connection

upstream

Overvoltage category

III

9 mm pitches

6 useful

Commissioning protocol

Bluetooth

Commissioning interface

mySchneider Electrician eSetup

End user smartphone application

EcoStruxure Facility Expert Small Business

Compatibility code

Acti9 PowerTag Link C

Pollution degree

2

Electromagnetic compatibility

resistance to electrostatic discharge (air discharge), 8 kV, conforming to IEC 61000-4-2|resistance to electrostatic discharge (contact discharge), 4 kV, conforming to IEC 61000-4-2|resistance to radiated electromagnetic fields (80 MHz...3 GHz), 10 V/m, conforming to IEC 61000-4-3|power supply: resistance to fast transient (5...100 kHz), 2 kV, conforming to IEC 61000-4-4|communication bus: resistance to fast transient (5...100 kHz), 1 kV, conforming to IEC 61000-4-4|conducted EMC (0.15...80 MHz), 10 V, conforming to IEC 61000-4-6|immunity to magnetic fields at network frequency (continuous), 30 A/m, conforming to IEC 61000-4-8|immunity to magnetic fields at network frequency (pulsed), 100 A/m, conforming to IEC 61000-4-8|radiated emission (30...1000 MHz), class A, conforming to IEC 61131-3 Ed.3|conducted emission (0.15...30 MHz), class A, conforming to IEC 61131-2

Vibration resistance

1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Fire resistance

other parts: 650 °C ( 30 s ) conforming to IEC 60695-2|on connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2

Tropicalisation

2 conforming to IEC 60068-2

Operating altitude

0...2000 m operating|0...3000 m storage

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.200 cm

Package 1 width

8.400 cm

Package 1 length

11.000 cm

Package 1 weight

168.000 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.480 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Frequently Asked Questions

hide show

What IP addresses and ports should be allowed in connected LAN for Acti9 PowerTag Link C (A9XELC10)?

When an Acti9 PowerTag Link C (A9XELC10) is connected to LAN to be used with cloud connected Facility Expert Small Business (FESB) app, following IP addresses and ports need to be allowed and permitted.

Please see the below details from the FESB Installation Guide.

2021-06-28 13_01_54-files.png

What are the differences between Acti9 PowerTag Link C (A9XELC10) and Acti9 PowerTag Link (A9XMWD20) / Link HD (A9XMWD100)?

Acti9 PowerTag Link C (A9XELC10)
This is a cloud connected communication module which can ONLY be used with Facility Expert Small Business (FESB) app.

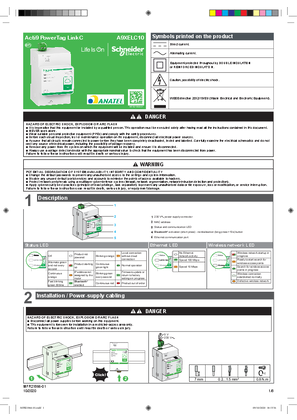

There is no webpage access to connect to Acti9 PowerTag Link C. All the commissioning steps are performed through the eSetup for Electricians app which is connected to PowerTag Link C using Bluetooth connectivity.

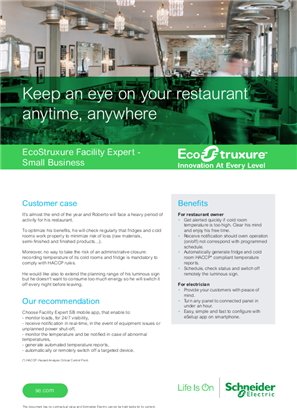

Please see more details in the PowerTagLink C Instruction Sheet and Facility Expert Small Business (FESB) brochure.

Please note that Facility Expert Small Business (FESB) app is not designed to use in residential applications and not supported for solar applications to see energy export values.***

Also, there is no option to log the kWh consumption data in the app or export them as reports.

Please download the Facility Expert SB app from Google Play or App Store and go to ‘Demo Mode’ to explore more.

*** If you are interested in solution for residential applications with solar, please check out our Wiser Energy Management solution.




Acti9 PowerTag Link (A9XMWD20) / Link HD (A9XMWD100)
These are used to monitor small/medium business electrical equipment via your supervision system through PowerTags Energy sensors.

These can be accessed via a webpage or EcoStruxure™ Power Commission software to configure and set notifications. These gateways itself do not log data.

Alternatively, PowerTag Link/Link HD can be connected to a COM’X 210/510 to connect to a cloud based platform, Facility Expert where you are able to see your energy data as well as your asset status. This platform has a yearly subscription fees and the fee depends on the inclusions in your license.

Please refer the below FAQ video and the PowerTag Link Gateway User Guide.
Set a Panel with PowerTag Energy Using PowerTag Link Webpages
https://www.youtube.com/watch?v=olAqAX8H3U8
