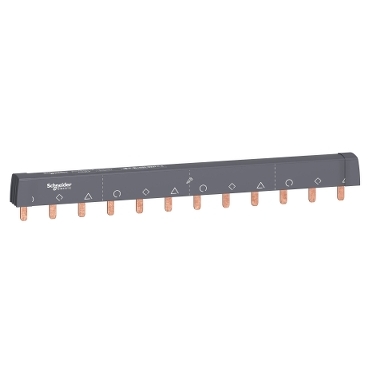

Acti9 Comb Busbar 3L, 18mm pitch, 12 modules, 100A

Acti9 Comb Busbar 3L, 18mm pitch, 12 modules, 100A

Item Number: A9XPH312

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

comb busbar

Warranty

18 months

Physical

Mounting mode

horizontal

Standards

EN/IEC 61439-1

Connector type

tooth

Marking

L1 L2 L3

Device presentation

cuttable

[ie] rated operational current

100 A at 40 °C

[ue] rated operational voltage

415 V AC

Width

220 mm

Range compatibility

  • Acti9 Acti9 iC60
  • Acti9 Acti9 iK60
  • Acti9 Acti9 iID
  • Acti9 Acti9 iID K
  • Acti9 Acti9 iSW
  • Acti9 Acti9 iSW-NA
  • Multi9 Multi9 C60
  • Acti9

Ip degree of protection

IP20 with end-pieces and tooth covers

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2503006EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Accessory / separate part category

connection accessory

Lines description

3L

Total number of 18 mm modules

12

Number of ways

4 ways 3 L

Distribution type

L1 L2 L3

Poles configuration for 1 way

1 x 3P

Connection pitch

18 mm

Distance between way

54 mm

Insulation

insulated

[ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

  • top or bottom on tunnel type terminals
  • top or bottom on double terminal

9 mm pitches

24

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

1.6 cm

Package 1 length

21.2 cm

Package 1 weight

108 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

6 cm

Package 2 width

8.6 cm

Package 2 length

24.8 cm

Package 2 weight

607 g

Unit type of package 3

S03

Number of units in package 3

80

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

10.19 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

41a8b1b0-6424-4682-ac9c-98796ac87431

Green premium status for reporting

Green Premium product

Bvb url

https://byggvarubedomningen.se/

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.5252861935112874

Global warming ; total life cycle​

4 kg CO2 eq.
Show all specifications
