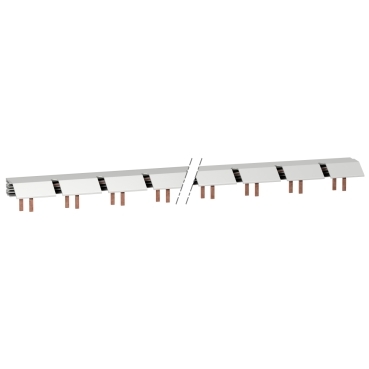

Acti9 Comb Busbar 1L+N with Aux and Vigi, 9mm pitch, 56 modules

Item Number: A9N21037

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

comb busbar

Warranty

18 months

Physical

Mounting mode

horizontal

Standards

EN/IEC 61439-1

Connector type

tooth

Marking

N L

Device presentation

cuttable

[ie] rated operational current

63 A at 40 °C

[ue] rated operational voltage

230 V AC Ph/N

Width

1000 mm

Range compatibility

  • Acti9 Acti9 C40
  • Acti9 Acti9 C40 Vigi
  • Acti9 Acti9 DT40
  • Acti9 Acti9 DT40 Vigi
  • Acti9 Acti9 iDPN
  • Acti9 Acti9 iDPN Vigi
  • Acti9 Acti9 ID C40
  • Acti9 Acti9 IDc
  • Acti9 Acti9 ITG40
  • Multi9 Multi9 N40 Vigi

Ip degree of protection

IP20 with end-pieces and tooth covers

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Accessory / separate part category

connection accessory

Lines description

1L + N

Total number of 18 mm modules

56

Number of ways

22 ways Aux + N + 1 L + Vigi

Poles configuration for 1 way

1 x 1P + N

Connection pitch

9 mm between phase and neutral

Distance between way

45 mm

Insulation

insulated

[ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

top on tunnel type terminals

9 mm pitches

112

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

5 cm

Package 1 length

97.5 cm

Package 1 weight

490 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

9.8 cm

Package 2 width

107 cm

Package 2 length

9.8 cm

Package 2 weight

2.769 kg

Unit type of package 3

P12

Number of units in package 3

40

Package 3 height

45 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

34.152 kg

Scip number

12618b2a-bc0e-4c2d-bb7b-9185c26e01fe

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
