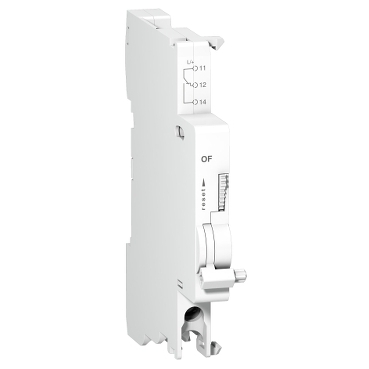

Acti9, Auxiliary contact, OC plus 1 SD and OF AC DC

Home ProductsCircuit ProtectionActi 9Auxiliary contact

Acti9, Auxiliary contact, OC plus 1 SD and OF AC DC

Item Number: A9N26924

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9 mm

Height icon

Height85.3 mm

Depth icon

Depth73.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

C60|I-NA|DPN Vigi|C120|DPN|ID

Product or component type

OC contact

Product compatibility

ITG40|ID C40|C60PV-DC|IDc|C120|iDPN|DPN Vigi|DT40|C40|SW60-DC|C60|DT60|C120NA-DC|C60NA-DC|C60H-DC

Market segment

residential|small commercial

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

AC-12 3 A at 380...415 V, AC 50/60 Hz|AC-12 6 A at 220...240 V, AC 50/60 Hz|DC-12 1 A at 130 V, DC|DC-12 1.5...1.5 A at 60 V, DC|DC-12 2 A at 48 V, DC|DC-12 6 A at 24 V, DC

Standards

EN/IEC 60947-5-1

Product certifications

ASEFA|KEMA|LCIE|ASTA

Range compatibility

Acti9 DPN Vigi|Acti9 RCCB-ID 125A|Acti9 C60H-DC|Acti9 C60PV-DC|Acti9 C40|Acti9 ID C40|Acti9 C120|Acti9 DT40|Acti9 DT60|Acti9 IDc|Acti9 C120NA-DC|Acti9 iDPN|Acti9 ITG40|Acti9 SW60-DC|Acti9 C60NA-DC|Acti9 xC60

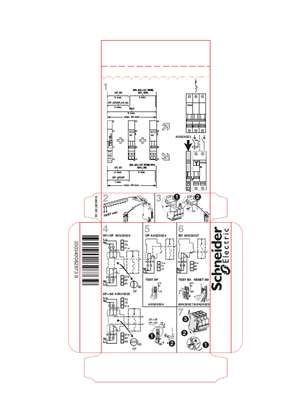

Mounting mode

fixed

Mounting support

DIN rail

Height

85.3 mm

Width

9 mm

Depth

73.5 mm

Net weight

30 g

Connections - terminals

screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible|screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - rigid|screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule

Wire stripping length

9 mm

Ip degree of protection

IP20 conforming to EN/IEC 60947-5-1

Ambient air temperature for operation

-25...50 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2206015EN

Circularity profile

ENVEOLI2206015

Others

Commercial status history

SESA301466 | Wed Aug 14 22:49:00 EDT 2024 | From Import Local | From 18 to 19

Package 4 bare product quantity

864

Package 3 bare product quantity

108

Package 2 bare product quantity

12

Package 1 bare product quantity

1

Device short name

OF

Signal contacts composition

1 C/O

[uc] control circuit voltage

24...415 V AC 50/60 Hz|24...130 V DC

9 mm pitches

1

Comb busbar and distribution block compatibility

top: YES

Tightening torque

1 N.m

Compatibility code

OF

Pollution degree

3 conforming to EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.9 cm

Package 1 width

2.1 cm

Package 1 length

9.4 cm

Package 1 weight

37 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.7 cm

Package 2 width

10 cm

Package 2 length

26.5 cm

Package 2 weight

501 g

Unit type of package 3

S03

Number of units in package 3

108

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

5.088 kg

Scip number

28bfb466-f950-4025-8655-16cfe4e6c6f3

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
