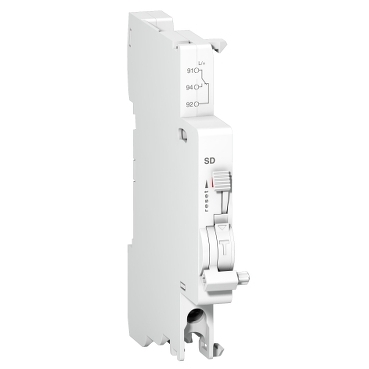

Acti 9, Auxiliary contact alarm, SD AC DC

Home ProductsCircuit ProtectionActi 9Auxiliary contact alarm

Acti 9, Auxiliary contact alarm, SD AC DC

Item Number: A9N26927

Datasheet

Product Dimensions

Width icon

Width9 mm

Height icon

Height85.3 mm

Depth icon

Depth73.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

I-NA|DPN|ID|C120|C60|DPN Vigi|Clario|Librio|ProDis

Product or component type

fault contact

Product compatibility

ID C40|C120|C60H-DC|C60|DT60|C120NA-DC|DT40|IDc|C60NA-DC|C40|SW60-DC|DPN Vigi|C60PV-DC|ITG40|iDPN

Market segment

small commercial|residential

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

AC-12 3 A at 380...415 V, AC 50/60 Hz|AC-12 6 A at 220...240 V, AC 50/60 Hz|DC-12 1 A at 130 V, DC|DC-12 1.5...1.5 A at 60 V, DC|DC-12 2 A at 48 V, DC|DC-12 6 A at 24 V, DC

Range compatibility

Acti 9 Acti9 DPN Vigi|Acti 9 Acti9 iDPN Vigi|Acti 9 Acti9 C60H-DC|Acti 9 Acti9 C60PV-DC|Acti 9 Acti9 C40|Acti 9 Acti9 ID C40|Acti 9 Acti9 C120|Acti 9 Acti9 DT40|Acti 9 Acti9 DT60|Acti 9 Acti9 IDc|Acti 9 Acti9 C120NA-DC|Acti 9 Acti9 iDPN|Acti 9 Acti9 ITG40|Acti 9 Acti9 SW60-DC|Acti 9 Acti9 C60NA-DC|Acti 9 Acti9 C40 Vigi|Acti 9 Acti9 DT40 Vigi|Acti9 xC60

Mounting mode

fixed

Mounting support

DIN rail

Height

85.3 mm

Width

9 mm

Depth

73.5 mm

Net weight

30 g

Connections - terminals

screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible|screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - rigid|screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule

Wire stripping length

9 mm

Standards

EN/IEC 60947-5-1

Product certifications

ASTA|LCIE|KEMA|ASEFA

Ip degree of protection

IP20 conforming to EN/IEC 60947-5-1

Ambient air temperature for operation

-25...50 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2206015EN

Circularity profile

ENVEOLI2206015

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

108

Package 4 bare product quantity

864

Device short name

SD

Signal contacts composition

1 C/O

9 mm pitches

1

Comb busbar and distribution block compatibility

top: YES

Tightening torque

1 N.m

Compatibility code

SD

Pollution degree

3 conforming to EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.000 cm

Package 1 width

2.000 cm

Package 1 length

9.400 cm

Package 1 weight

38.000 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.700 cm

Package 2 width

10.000 cm

Package 2 length

26.500 cm

Package 2 weight

511.000 g

Unit type of package 3

S03

Number of units in package 3

108

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.084 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
