Airflow, Performance Exhaust Fan, Wall Mount, 150mm, Axial

Airflow, Performance Exhaust Fan, Wall Mount, 150mm, Axial

Item Number: 7006A

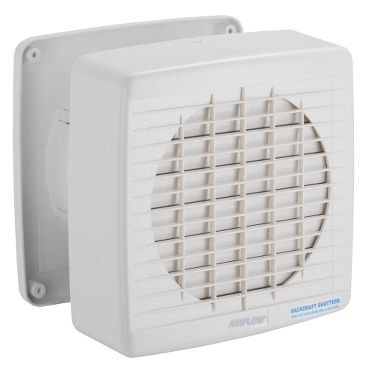

The Clipsal Airflow 150mm Wall Mount Performance Exhaust Fan offers high performance air movement and low noise levels. The wall fans are supplied with unique ductwork that easily fits walls between 110 and 310mm. A flex and plug can be fitted, or they can be wired direct.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

MaxAir|Airflow

Product brand

Clipsal

Physical

[ue] rated operational voltage

230...240 V AC

Power consumption in w

45 W

[in] rated current

0.27 A full load

Ip degree of protection

IPx4

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2302013_V2

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Air flow

360 m3/h

Diameter

148 mm impeller:

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

21.0 cm

Package 1 width

25.0 cm

Package 1 length

25.0 cm

Package 1 weight

1945.0 g
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Other technical guide

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

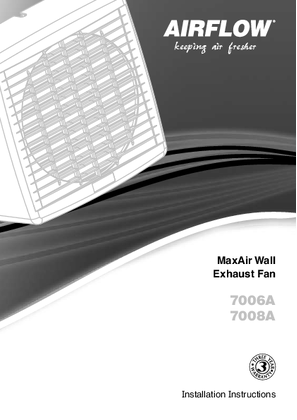

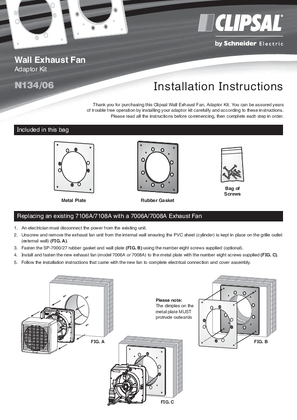

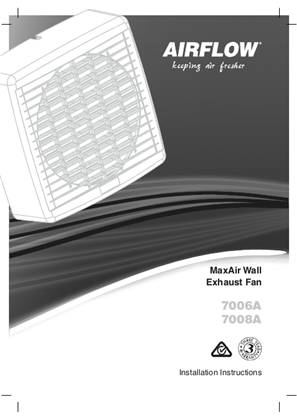

  • Installation Instruction
