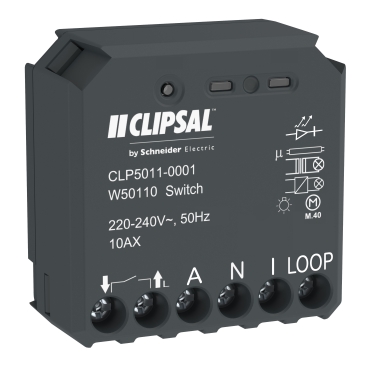

Clipsal Wiser, Light Switch, Micro Module

Item Number: CLP5011-0001

1 PCE 0

Switch micro module designed to switch on/off lighing loads and exhaust fans. Wiser switch with app control and set up options. Functions of the connected device include switch and timer. The device requires separate momentary push-button, and has a 3-wire design. Micro module. Rated current: 10AX. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licensed electrician.

Where To Buy

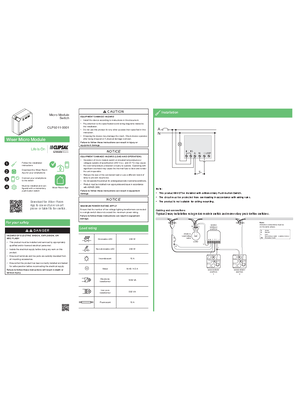

Datasheet

Download

Product Dimensions

Width43 mm

Height43 mm

Depth22 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		9311554794194	-

Specifications

Design

Product brand

Clipsal

Range

Wiser

Product or component type

connected switch

Colour tint

dark grey

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

module

[ue] rated operational voltage

220...240 V AC 50/60 Hz

Rated current

10 AX

Local signalling

programming indication: 1 LED (green/red)

Control type

remote control by auxiliary push-button|remote control Wiser App

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50 m

Wiring configuration

with neutral

Connections - terminals

screw terminal

Clamping connection capacity

1 x 1.5...2 x 2.5 mm² for solid cable(s)|1 x 1.5...2 x 2.5 mm² for solid stranded cable(s)

Mounting support

wall|installation box

Device mounting

flush

Type of installation

indoor installation

Depth

22 mm

Width

43 mm

Height

43 mm

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

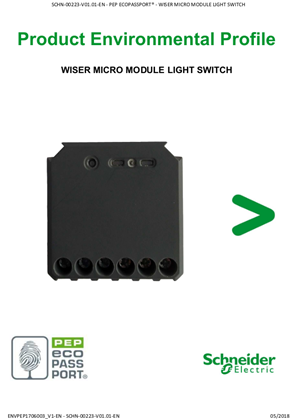

ENVPEP1706003EN

Circularity profile

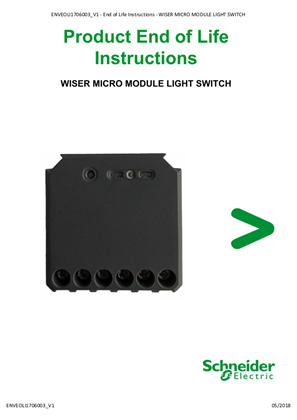

ENVEOLI1706003EN

Others

Commercial status history

SESA301466 | Fri Sep 22 10:16:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

Type number

W50110

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Technology type

electronic

Standby consumption

max. 0.3 W

Associated fuse rating

16 A

Number of outputs

Software name

Wiser App: enable timer mode|Wiser App: management of the pulse generator|Wiser App: upgrade device firmware

Maximum number of connected devices

Zigbee: 15 (smart device)

System requirements

Android 5.1 or higher Wiser App|Apple iOS 10.3 or higher Wiser App|Bluetooth 4.1 or higher Bluetooth|Wiser Home Touch Wiser Home control

Connected auxiliaries

maximum 10 auxiliary push-buttons, distance : 50 m

Number of loop terminals

Shape of screw head

pozidriv No 1 and combi

Tightening torque

0.5 N.m

Main colour tint

dark grey

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.2 cm

Package 1 width

7.5 cm

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 173.6 KB

Frequently Asked Questions

hide show

I have made name changes to my Wiser devices in Wiser by SE how can I get these changes to work with Google voice control?

When setting up Google home and voice control make sure that any changes that are made to devices in Wiser by SE in the naming of mechs or adding/removing items are done on the device that the speaker is linked within google home. Making sure to refresh the Google Home App after the changes are made in Wiser by SE.

The changes will not be recognized If they are done on a device that is not the creator of the Home within the Google Home App that is linked with the voice control speaker. This can be solved by having the creator refresh his Google Home.
Note: Only one Wiser by SE account should be linked with Google home per household. This person should then create the home within Google Home and add members to this home. If more than one Wiser by SE account in the same home is linked to Google Home this can create ‘doubles’ of the Wiser devices within the Google Home App.

How do I swap my Wiser connected switch and dimmer devices from BLE to Zigbee?

To swap from Bluetooth to Zigbee you will need to short press the mechanism 12 times - and allow time for the device to swap modes, this will take roughly 40 seconds. Initially when swapped to Zigbee mode the LED indicator on the mechanism will flash amber indicating it is in pairing mode. If not paired to after roughly 50 seconds this will become solid amber. This amber indicator will remain on until paired with a Hub, the mechanism will function as normal while this indicator is on.

NOTE: Before swapping from Bluetooth/BLE to Zigbee it is strongly recommended that a factory reset be performed on the mechanism before initiating the change.

Is there a Wiser product/device I can use to control my roller door?

If your roller door can have a wired switch installed to operate it, you can use the Micro Module Switch CLP5011WSZ. It requires an active and neutral to operate but has dry contact that can be used in conjunction with wiring from the roller door. Once installed a 1 second timer will have to be implemented by programming a simple Automation in Wiser by SE to create a ‘pulse’ connection similar to how a bell press or momentary switch would operate.
It also requires that all wiring be 240V cabling, installed with proper electrical workmanship by a licensed electrician. Ensuring all terminations, cables and the CLP5011WSZ are restrained and supported correctly.
