Clipsal Wiser IR Converter 100-240V AC, 50/60 Hz, IP20, Black/White

Clipsal Wiser IR Converter 100-240V AC, 50/60 Hz, IP20, Black/White

Item Number: CLP501401

The Wiser IR Converter controls TVs, split air conditioners and HiFi systems via the Wiser by SE app using infrared (IR) technology. It can be mounted on the ceiling or placed on a table top.

Datasheet

Specifications

Design

Range

Wiser

Product or component type

hub

Device application

Zigbee/infrared interface

Colour tint

white and black

Physical

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Connector type

connector(s)1 x micro USB port female for adaptor

[ue] rated operational voltage

AC external adaptor: 100...240 V AC 50/60 Hz

Local signalling

indicator: 2 LEDs (green/red/orange)

Detection angle

  • 180° vertical position
  • 360° horizontal position

Height

32.5 mm

Ambient air temperature for operation

-10...45 °C

Relative humidity

10...90 %

Environmental characteristic

indoor use

Ip degree of protection

IP20

Standards

  • EN 60950-1
  • IEC 60950-1

Product certifications

CE

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1902005EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

8

Package 3 bare product quantity

320

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Battery type

4 AA alkaline

Mobile app name

Wiser by SE

Concentrator compatibility

Wiser hub generation 1

Main colour tint

white and black

[us] rated supply voltage

5 V DC, <1 A

Battery life

1 year(s)

Maximum sensing distance

  • 1 m with extensions cable
  • 8 m infrared Wiser device

Diameter

100 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.3 cm

Package 1 width

18.7 cm

Package 1 length

13.5 cm

Package 1 weight

322 g

Unit type of package 2

S02

Number of units in package 2

8

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.978 kg

Unit type of package 3

P12

Number of units in package 3

320

Package 3 height

75 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

127 kg

Total lifecycle carbon footprint

122 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

15.170386623795357

Carbon footprint of the manufacturing phase [a1 to a3]

15 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.09329110256564946

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.05698697996384687

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

106.07

Carbon footprint of the use phase [b2, b3, b4, b6]

106 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.19582042017751813

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

No

Total lifecycle carbon footprint

121.58648512650235

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI1902005EN

Removable battery

No

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Technical Data Catalogues

  • Other technical guide

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

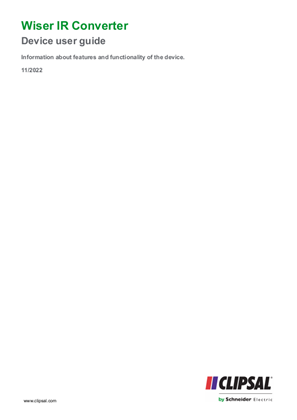

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Frequently Asked Questions

My Wiser switches are not responding to being pressed or control via Wiser by SE, what can I do to troubleshoot the issue?

Hide Show
Begin by taking note of the product/s that are not responding and are they doing anything else different from normal operation? For example, is the backlight flashing in a sequence, does the product respond to three presses and shows the pairing led colouring and what colours are seen. If what is suggested below does not resolve the switches not responding these details can assist the Tech Support team in diagnosing what is occurring.

Once this has been taken note of begin by power cycling your Wiser Hub. This can be done by removing the micro-USB where it connects to the Hub or by turning off the power outlet that supplies power to the Hub. Leave it off for 10 – 15 seconds and then reconnect the Wiser Hub and wait until it completes its reboot procedure at the end of which only 2 LED indicators should be visible on the Wiser Hub. With LEDs at top of Hub - if connected with Ethernet cable (Right and Left Led will turn ON). If connect via WiFi (Middle and Right Led will turn ON)

If this fails to resolve the issue the product failing to respond may need to be power cycled itself. If confidant and able, access the switchboard that has the RCBO’s or Circuit breakers that supply power to the products. Turn the applicable supply off for 10 – 15 seconds and then turn this supply back on.

Note: If uncertain contact your installing electrician for the Wiser system who may advise what is supplying power to the Wiser products. If fuses are installed in your switchboard it is recommended to have your electrician remove the fuse and then re-fit after 10 – 15 seconds. Fuses can be extremely dangerous if not correctly handled by a qualified electrician.

If the switches are still unresponsive contact Tech Support via phone – Australia: 13 73 28 (13 SEAU) New Zealand 0800 652 999, email - techsupport.pz@se.com or via online chat through a link on our support page https://www.clipsal.com/clipsal-support/contact-us or https://www.pdl.co.nz/support


Can I trigger a moment/scene from a Wiser wall switch?

Hide Show

Yes. When a number of Wiser switches/dimmers are paired with the Wiser Hub, this can be achieved with the use of an Automation and would consist of - Condition: Device status = On, Action = Enable or Disable Automation/Trigger Moment, Delay 1s, Run the device = Off.


Note: Only 1 moment can be used within an automation

I have made name changes to my Wiser devices in Wiser by SE how can I get these changes to work with Google voice control?

Hide Show
When setting up Google home and voice control make sure that any changes that are made to devices in Wiser by SE in the naming of mechs or adding/removing items are done on the device that the speaker is linked within google home. Making sure to refresh the Google Home App after the changes are made in Wiser by SE.

The changes will not be recognized If they are done on a device that is not the creator of the Home within the Google Home App that is linked with the voice control speaker. This can be solved by having the creator refresh his Google Home.
Note: Only one Wiser by SE account should be linked with Google home per household. This person should then create the home within Google Home and add members to this home. If more than one Wiser by SE account in the same home is linked to Google Home this can create ‘doubles’ of the Wiser devices within the Google Home App.


Wiser Product Warranty

Hide Show
The Hub, IR converter and all Sensors have a warranty of 12 months.
The 2AX (41E2PBSWM), 10AX (41E10PBSWM), Dimmer (41EPBDWCLM), Micro module dimmer (CLP5010WDZ), Micro module switch (CLP5011WSZ), Micro module blinds (CLP5015WBZ) and the Connected Socket Outlet (3025CSG) all have a 2-year warranty.
This information can be found on the product installation instructions.
