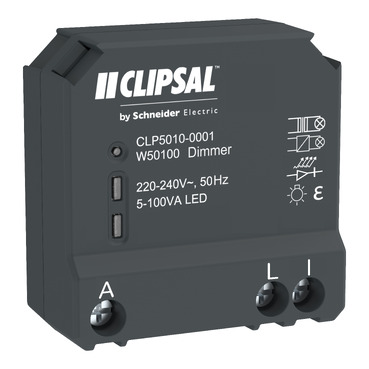

Clipsal Wiser Dimmer Micro Module

The Micro module Dimmer cannot be used with LED indication other than having the indicator always on. This is due to the Switch mechanism required for control being a momentary or Bell press type and using the 2nd terminal and a neutral connection would simply have the LED on permanently unless you were pressing the switch in.

Connecting the LED indicator to the ‘I’ terminal can create a pathway that interferes with the electrical signal the module is triggered with sometimes causing the switch control to not function or the module to behave erratically.

Connecting the LED indicator to the ‘L’ terminal means the module is then actively trying to dim the indicator also and with the led indicators being non-dimmable will cause an error in the module.


Check if you have changed the device/s from BLE to Zigbee mode. Once the mode is changed, the device will lose connection and require manual deletion.

Zigbee – Check that your router, device and Hub are powered. If you are not connected to the local WiFi associated with the Hub you will also need to check if your router and hub are still connected to the internet.

BLE – Check if you are in range of the device and does the device still have power


No, unfortunately this is not possible as it is a 1 way mechanism. When power is lost to this mechanism it is restored to its off state which can ONLY be triggered by that switch and not an additional switch.
If Multi-way pushbutton dimming is required it is recommended to use the Wiser Micro Dimmer Module and Bell press mechanisms ( CLP5010-0001 and 60PBBP)

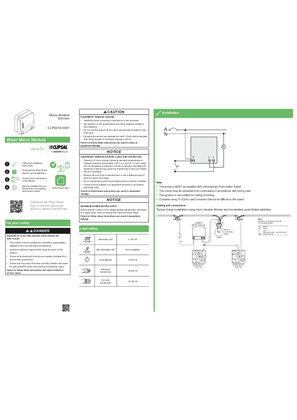

This setup allows a short press to turn on and off the dimmer while a long press will ramp up or ramp down the dimmer.( see attached for wiring diagram)
For further information please visit https://www.clipsal.com/products/detail?CatNo=CLP5010-0001&backto=/search?q=CLP&tab-document-1=0&itemno=CLP5010-0001

---



When setting up Google home and voice control make sure that any changes that are made to devices in Wiser by SE in the naming of mechs or adding/removing items are done on the device that the speaker is linked within google home. Making sure to refresh the Google Home App after the changes are made in Wiser by SE.

The changes will not be recognized If they are done on a device that is not the creator of the Home within the Google Home App that is linked with the voice control speaker. This can be solved by having the creator refresh his Google Home.
Note: Only one Wiser by SE account should be linked with Google home per household. This person should then create the home within Google Home and add members to this home. If more than one Wiser by SE account in the same home is linked to Google Home this can create ‘doubles’ of the Wiser devices within the Google Home App.


To swap from Bluetooth to Zigbee you will need to short press the mechanism 12 times - and allow time for the device to swap modes, this will take roughly 40 seconds. Initially when swapped to Zigbee mode the LED indicator on the mechanism will flash amber indicating it is in pairing mode. If not paired to after roughly 50 seconds this will become solid amber. This amber indicator will remain on until paired with a Hub, the mechanism will function as normal while this indicator is on.

NOTE: Before swapping from Bluetooth/BLE to Zigbee it is strongly recommended that a factory reset be performed on the mechanism before initiating the change.
