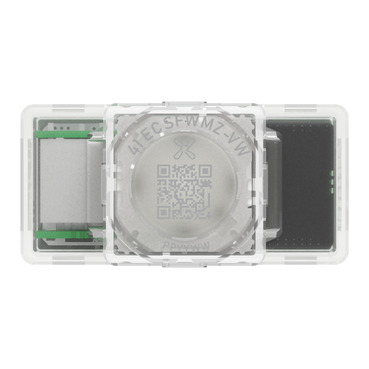

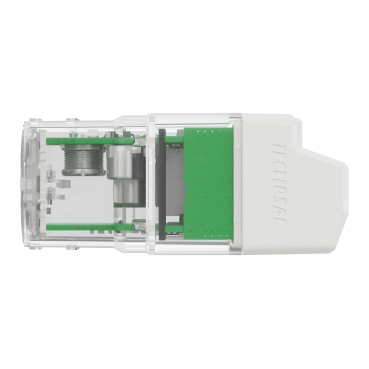

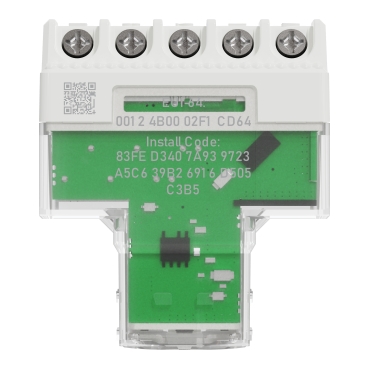

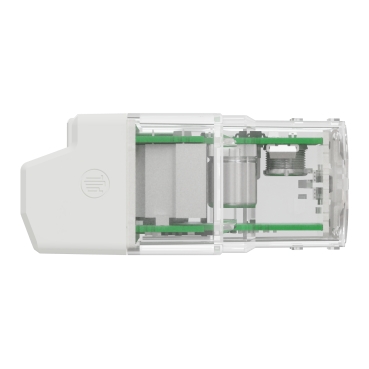

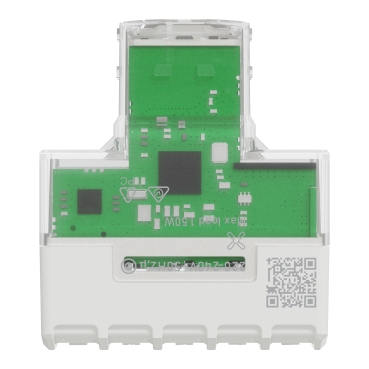

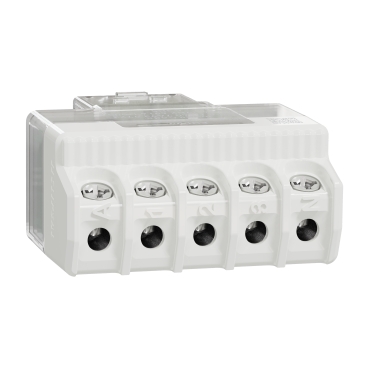

Clipsal Iconic Connected AC Fan Controller Zigbee

Clipsal Iconic Connected AC Fan Controller Zigbee | Vivid White

Item Number: 41ECSFWMZ-VW

The Iconic Connected AC ceiling fan controller provides added comfort and convenience by making any 3 speed 240V ceiling fan part of a Wiser smart home. With Zigbee default mode, control from the Wiser by SE app, wall switch, or voice command and set timers, schedules or integrate into Wiser moments and automations. The modular mechanism design provides installation flexibility and simple upgrade options for Iconic wall plates.

Datasheet

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth53 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand Clipsal
Range of product Iconic
Range Iconic
Aesthetic name
  • Iconic
  • Iconic Essence
  • Iconic Styl
Product or component type connected switch
Colour tint vivid white (VW)

Physical

Device presentation mechanism
Number of rocker 1
Actuator push-button
Load type 230 V AC fan: 150 W
[ue] rated operational voltage 220...240 V AC 50 Hz
Protection type
  • over temperature protection
  • thermal protection
Local signalling fan speed: 1 LED (amber/green/red)
Control type
  • OFF-LOW-MEDIUM-HIGH fan speed controller fan speed control
  • by mobile application
Communication network type wireless (2.4-2.4 GHz), 2.5 mW at < 50 m
Mounting support grid
Device mounting flush
Fixing mode clip-in
Fixing center 84 mm
Type of installation indoor installation
Embedding depth 53 mm
Depth 58 mm
Width 48 mm
Height 22 mm
Ambient air temperature for operation -10...50 °C
Ip degree of protection IP20
Relative humidity 5...90 % non-condensing
Standards
  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP2108010_V1
Reach regulation Reference contains Substances of Very High Concern above the threshold
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant By Exemption

Material

Material plastic

Others

Legacy weee scope In
Package 1 bare product quantity 1
Package 2 bare product quantity 6
Package 3 bare product quantity 48
Package 4 bare product quantity 2304
Average percentage of recycled plastic content 0 %
Outside of Europe
Warranty duration(in months) bmecat 18
Weee label N/A
Weee applicability Component
Weee exclusion rationale Component not in scope – non independent function
Concentrator compatibility Wiser hub generation 1
Mobile app name Wiser by SE
Technology type electronic
Number of modules 1 module
Signalling function fan speed
Software name Wiser by SE App: fan control
Maximum number of connected devices 3 (switch)
Technology type
  • Zigbee default
  • bluetooth low energy
Memory description
  • backup memory - date and time for 6 h
  • backup memory - program for indefinite period
Main colour tint vivid white
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 4.2 cm
Package 1 width 8 cm
Package 1 length 9.6 cm
Package 1 weight 72 g
Unit type of package 2 BB1
Number of units in package 2 6
Package 2 height 16.7 cm
Package 2 width 10.5 cm
Package 2 length 13 cm
Package 2 weight 504 g
Unit type of package 3 CAR
Number of units in package 3 48
Package 3 height 23 cm
Package 3 width 26.7 cm
Package 3 length 34.1 cm
Package 3 weight 4.32 kg
Green premium status for reporting Green Premium product
Total lifecycle carbon footprint 5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 4.2330777202072545
Carbon footprint of the manufacturing phase [a1 to a3] 4 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 0.009289616580310881
Carbon footprint of the distribution phase [a4] 0 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.0016744041450777204
Carbon footprint of the installation phase [a5] 0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 0.9133125
Carbon footprint of the use phase [b2, b3, b4, b6] 0.9 kg CO2 eq.
Sustainable packaging No
Carbon footprint of the end-of-life phase [c1 to c4] 0.030834404145077716
Carbon footprint of the end-of-life phase [c1 to c4] 0 kg CO2 eq.
Pvc free Yes
Halogen-free status Halogen free product
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 5.410601533678756
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic No
Halogen-free status Halogen free product
Pvc free Yes
End of life manual availability ENVEOLI2108010EN
Take-back No
Warranty (in months) 18

Documents & downloads

Filter items
  • All

  • Product Brochures

  • Other technical guide

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

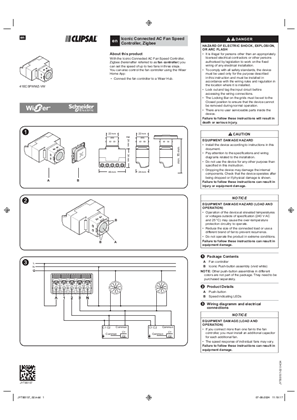

  • Installation Instruction

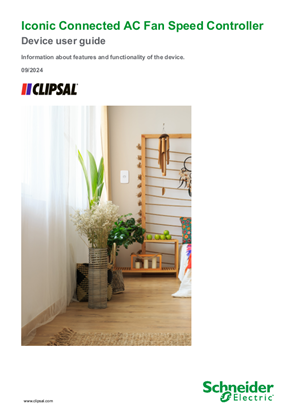

  • Operating Manuals

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Frequently Asked Questions

I have ceiling fans in my home, can you use the 4-position rotary mechanisms with Solis or Solis T?

Hide Show
No – Unfortunately the 4-position rotary mechanisms, 40RSM3 and 40CSFM, do not fit into the Solis range.
If you require ceiling fan control you will need to use the Wiser ZigBee fan controller, 41ECSFWMZ-VW, and either the toggle or push-button Wiser adaptor.
