Clipsal - Smoke Alarms Photoelectric Smoke Alarm Surface Mount, 220-240V a.c. Mains Power, rechargeable lithium battery backup
Item Number: 755RLPSMA4
755RLPSMA4 photoelectric smoke alarm helps to detect smouldering fire types. It can be used as a single mains powered battery backed alarm or can be interconnected with other 755 series smoke alarms to give complete home protection. It’s sealed-in rechargeable battery means no more replacing backup batteries annually.

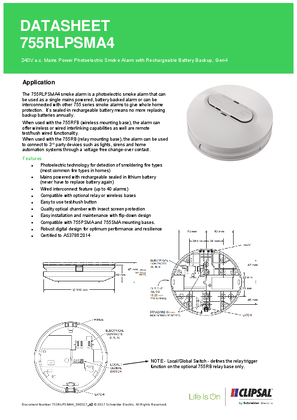

Datasheet
Specifications
Design
| Range | Fire Tek |
|---|---|
| Product brand | Clipsal |
| Product or component type | smoke detector |
| Device application | early detection of smouldering fires and open fires |
Physical
| Type of packing | carton |
|---|---|
| Supply | mains |
| Function available |
|
| Control type | button (test/hush function) |
| Operating distance |
|
| Local signalling |
|
| Connections - terminals |
|
| Type of installation | indoor |
| Device mounting | surface |
| Mounting support |
|
| Fixing mode | by screws |
| Height | 47 mm |
| Ip degree of protection | IP20 |
| Ambient air temperature for operation | 0...45 °C |
| Ambient air temperature for storage | -20...60 °C |
| Relative humidity | 5...95 % |
| Product certifications |
|
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1907002_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | thermoplastic |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Other technical guide
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Operating Manuals
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Clipsal Electric Home Design Magazine
VERSION
1.0
DATE
19 May 2026
REVISION
1.0
Clipsal, FireTek Smoke Alarm_LMA Brochure_QA3
VERSION
1.0
DATE
06 Jun 2025
REVISION
1.0
Clipsal FireTek Smoke Alarm Brochure
VERSION
1.0
DATE
24 Apr 2024
REVISION
1.0

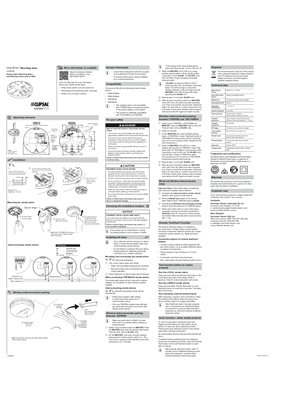

755RFB2 Smoke Alarm Mounting Base
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
Smoke Alarms - General Information
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
755RLPSMA2 Smoke Alarm Instructions
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0

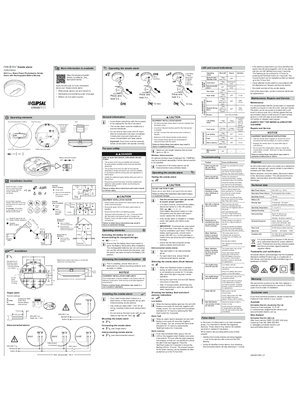

755RLPSMA4 Smoke Alarm Instructions
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
Frequently Asked Questions
What causes the smoke alarm to continuously beep ?
Hide ShowPlease follow the regular maintenance check to avoid this.
Vacuum the smoke alarms using a soft brush attachment-
Keeping your smoke alarm free of dust particles, dirt, kitchen grease or cobwebs will help you reduce false alarms and ensure any smoke can easily reach the internal sensing chamber.
Clean and wipe down around unit-
Clean around the smoke alarm unit and remove any insects or other contamination which may have occurred. Spray bug repellent on a cloth and wipe the ceiling around the smoke alarm to act as a future bug deterrent. Clean every 3-6 months to mitigate insect ingress.
ALWAYS TEST THE SMOKE ALARM AFTER CLEANING.
Attached is the Clipsal smoke alarm troubleshooting guide for more info.
What is the warranty period for the 755 series smoke alarms?
Hide ShowWhere can I find the manufacturing date of a smoke alarm?
Hide Show
Range
Clipsal's Fire Tek range helps protect the most valuable assets; family, friends and the home.
They are backed by the SAI Global 5 ticks certification of quality, offering robust designs for reliability, ensuring early detection and warning from hazardous smoke and fire.
The Australian Building Code mandates all new homes must have AS3786:2014 compliant smoke alarms installed, interconnected and hard wired to mains power.
By having Fire Tek's smoke alarms installed, you will have the best chance of escaping the devastating effects of a house fire.
