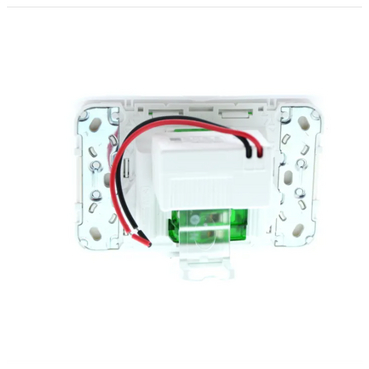

Clipsal Iconic Switched Socket 1xEx2 USB Charger A+C

Clipsal Iconic Switched Socket 1xEx2 USB Charger A+C | Vivid White

Item Number: 3025USBAC-VW

This Clipsal Iconic double Power Point with Type A+C USB outlet is designed to eliminate bulky chargers whilst freeing up Power Points. Two dedicated independent ports optimise charging whilst monitoring the temperature of the device to ensure internal components don't overheat.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth55 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

switched socket

Physical

Type of packing

polybag

Quantity per set

set of 10

Device presentation

complete product

Device mounting

flush

Installation direction

horizontal

Number of rocker

2

Fixing mode

by screw

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for stranded cable(s)

Wire stripping length

16 mm

Height

120 mm

Width

78 mm

Depth

55 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2403023EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

1.2 cm

Package 1 length

7.8 cm

Package 1 weight

135 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

328 cm

Package 2 width

106 cm

Package 2 length

146 cm

Package 2 weight

675 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

12.72333673

Global warming ; total life cycle​

13 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
