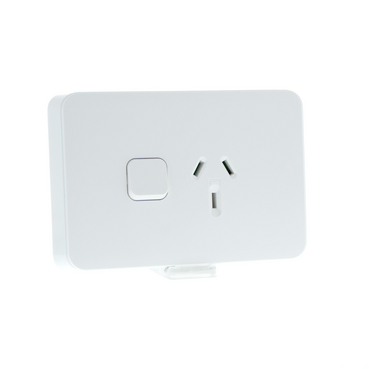

Clipsal Iconic Single Switch Socket Outlet Horizontal Mount, 250V, 10A | Vivid White
Item Number: 3015-VW
The Iconic Single Power Point has a Grid Plate with innovative protective flaps, which help prevent screw access after installation (by a qualified electrician); which means skins can be changed safely at any time.
Specifications
Design
| Range | Clipsal Iconic |
|---|---|
| Product or component type | switched socket |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Socket number | 1 |
| Connections - terminals | screw terminals |
| Installation direction | horizontal |
| Device mounting | flush |
| Number of rocker | 1 |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Fixing mode | by screws |
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Net weight | 100 g |
| Ambient air temperature for operation | 0...45 °C |
| Height | 78 mm |
| Width | 120 mm |
| Depth | 31 mm |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607004EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
| Quantity per set | set of 10 |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
eTechPub
-
Declaration of Conformity (Sustainability)
ZIP
3015-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
3015-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
3015-VW REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
3015-VW REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
3015-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
3015-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
What is the IP rating for the Iconic Outdoor sockets?
Hide Show
All Iconic Outdoor sockets have a rating of IP54.
Do the conduit caps come with the Iconic Outdoor?
Hide Show
No, the conduit caps are supplied separately and come in two sizes 20mm and 25mm.
How do you remove the cover from Iconic Outdoor once its clipped on?
Hide Show
To remove the cover from Iconic Outdoor, push down on the top middle of the cover and pull away from wall.
Does the Iconic Outdoor socket maintain IP54 when a plug is inserted?
Hide Show
Although there is no requirement within Australian Standards to test the IP rating when a plug is inserted into a socket, we recommend using a sealed plug or socket such as 56 Series in wet environments.
Do I need to use any caps or silicone on the mounting screws on the Iconic Outdoor?
Hide Show
All Iconic Outdoor mounting points are outside the wiring area and do not need to be drilled or any additional sealant applied.
Can the Iconic Outdoor O3015T Connected Socket be connected to my Wiser Hub?
Hide Show
The Iconic Outdoor O3015T Connected Socket comes standard setup as a Bluetooth connection, so you can connect to your smart device by the Wiser by SE App. You can convert the Bluetooth device to Zigbee format and connect to the Wiser Hub.
What size conduit entries can be used with Iconic Outdoor?
Hide Show
Iconic Outdoor suits both 20mm and 25mm conduit.
What colours are the new Iconic Outdoor Products available in?
Hide Show
Iconic Outdoor is available in Matte White -XW and Matte Black -BK.
