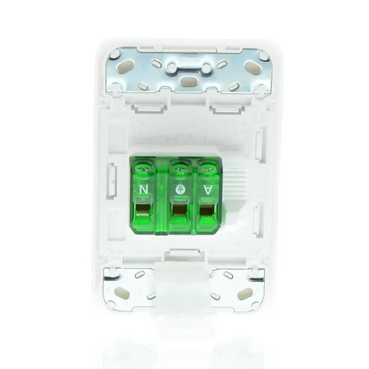

Clipsal Iconic Single Switch Power Point Vertical Mount, 250V, 10A | Vivid White
Item Number: 3015V-VW
Socket outlet assembly for vertical installations. Single switched socket. Iconic skin and socket grid are included. Clipsal Iconic. Colour: Vivid White Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Range | Clipsal Iconic |
|---|---|
| Product or component type | switched socket |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Socket number | 1 |
| Connections - terminals | screw terminals |
| Installation direction | vertical |
| Device mounting | flush |
| Number of rocker | 1 |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Fixing mode | by screws |
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Net weight | 100 g |
| Ambient air temperature for operation | 0...45 °C |
| Height | 120 mm |
| Width | 78 mm |
| Depth | 36 mm |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607004EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
| Quantity per set | set of 10 |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
eTechPub
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
ZIP

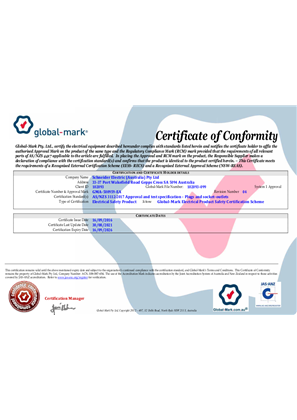

Iconic Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 566.4 KB
ZIP

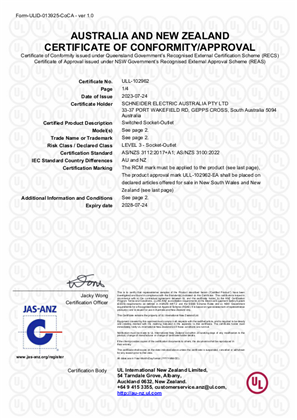

Iconic Series Socket, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 566.4 KB
ZIP

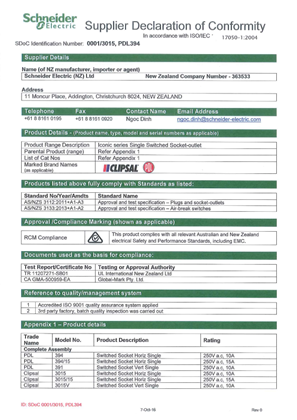

Iconic Single Switched Socket Outlet Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 566.4 KB
