Clipsal Iconic Power Outlet Twin 30mA, RCD Protected, 250V, AC,10A

Clipsal Iconic Power Outlet Twin 30mA, RCD Protected, 250V, AC,10A | Vivid White

Item Number: 3025RCD30-VW

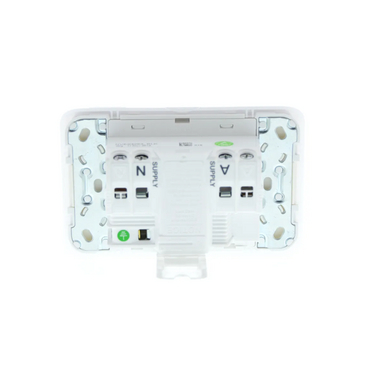

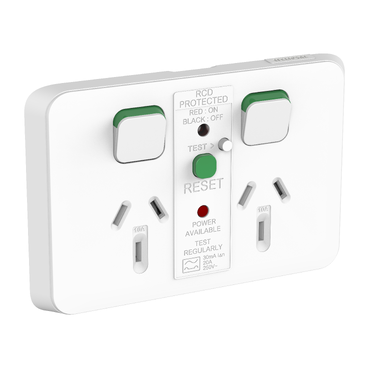

This 30mA RCD protected twin 10A Power Point has large in line floating wrapper wiring terminals. It has slim and modern Clipsal Iconic styling, simple to use test button, LED indicators and shuttered sockets.

Datasheet

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Depth icon

Depth42 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

switched socket

Physical

Device presentation

complete product

Installation direction

horizontal

Device mounting

flush

Number of rocker

2

Fixing mode

by screw

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
  • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)
  • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)

Wire stripping length

16 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Height

78 mm

Width

120 mm

Depth

42 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Quantity per set

set of 4

Others

Commercial status history

  • SESA301466
  • Tue Feb 18 15:13:00 CET 2025
  • From Import Local
  • From 14 to 18

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.2 cm

Package 1 width

7.8 cm

Package 1 length

12 cm

Package 1 weight

110 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

10.6 cm

Package 2 width

14.8 cm

Package 2 length

22 cm

Package 2 weight

1.046 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

12.95175128

Global warming ; total life cycle​

13 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
