Clipsal Iconic Night Walk Sensor Light Motion Activated

Clipsal Iconic Night Walk Sensor Light Motion Activated | Vivid White

Item Number: 3025NW-VW

The Clipsal Iconic Night Walk Sensor Light Smart Skin is a motion-activated skin for outlet sockets with a built-in motion sensor and dual-mode light. A motion-triggered LED light casts just enough light to find your way without turning on a light.

Datasheet

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

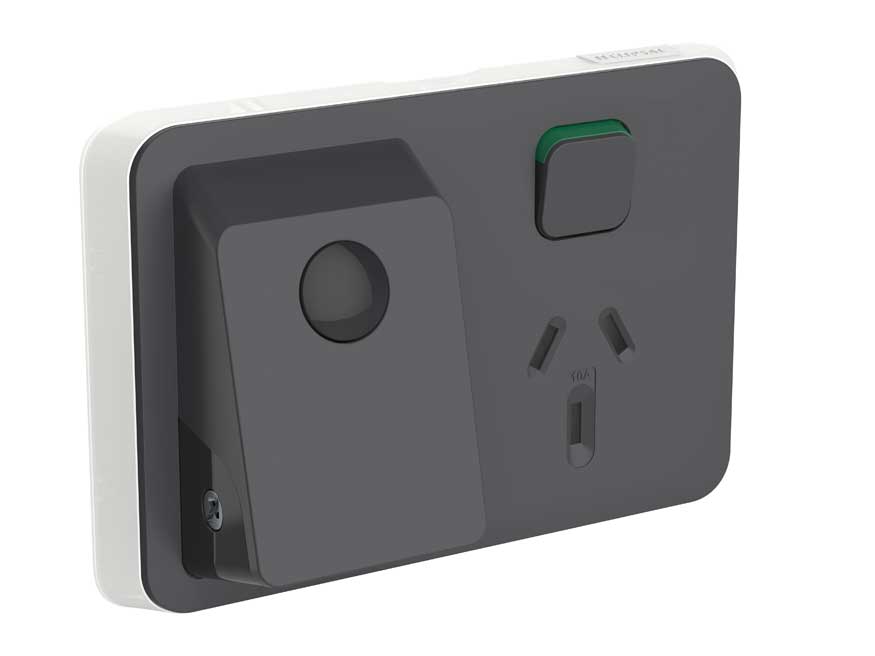

Clipsal-Night-Walk-motion-sensor-night-light-3025NW

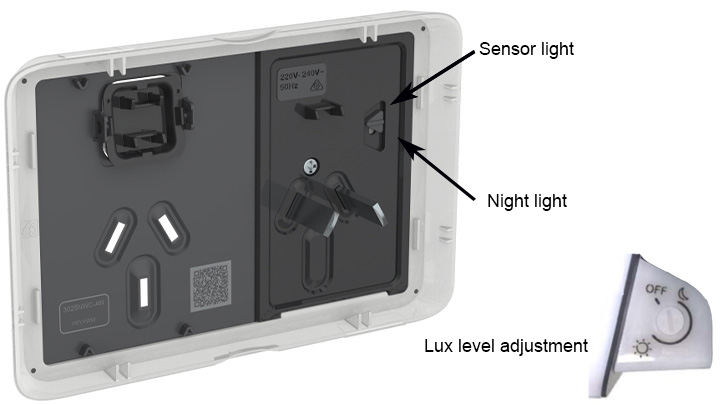

The back of the Clipsal Iconic Night Walk motion sensor night light
Clipsal Iconic Night Walk in Room
Clipsal Iconic Night Walk at night

Clever. Customisable. Future-ready

The Clipsal Iconic Night Walk Sensor Light, detects the slightest human movement, before illuminating a safe path.

The soft LED light is subtle and won't wake up the rest of the house. Featuring two modes, the Night Walk can be used as a sensor light , or as a night light, where a dimmed light will turn on at night time and remain on until morning, increasing in brightness if motion is detected.

Pet friendly, the motion sensor night light is angled to reduce the triggering by small pets.

Specifications

Design

Range of product

Iconic

Range

Iconic

Product or component type

cover frame

Aesthetic name

Iconic

Colour tint

vivid white (VW)

Product destination

  • switched socket
  • sensor

Surface treatment

untreated

Physical

Detection angle

40°

Movement detection area

2 m

Presence detection area

1 m

Operating distance

2 m

Number of rocker

1

Number of power socket outlets

1

Device mounting

flush

Fixing mode

plug-in

Installation direction

horizontal

Type of installation

indoor

Height

78 mm

Width

120 mm

Depth

32 mm

Type of packing

polybag

Quantity per set

set of 1

Ambient air temperature for storage

-5...65 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...85 %

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2106012_V1

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Weee applicability

Finished product

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.2 cm

Package 1 width

7.8 cm

Package 1 length

12.0 cm

Package 1 weight

64 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.00045772582359192385

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0000082574282678002

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

7.649394261424e-7

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

27.274776029351813

Carbon footprint of the use phase [b2, b3, b4, b6]

27 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.00001780619199433227

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.006668500539851222

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

ENVEOLI2106012

Take-back

No

Warranty (in months)

18
