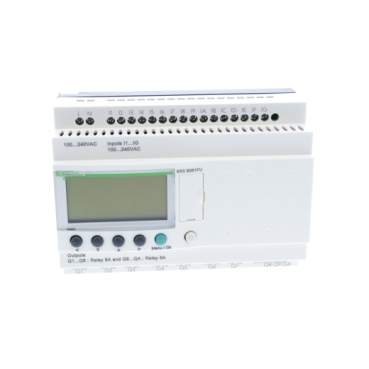

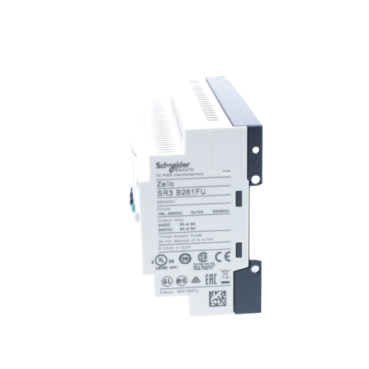

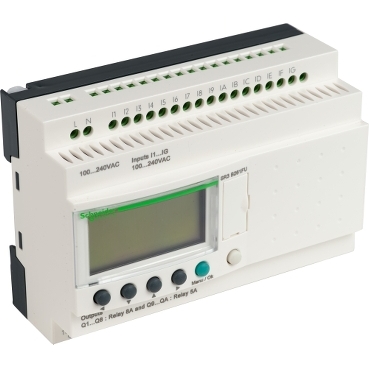

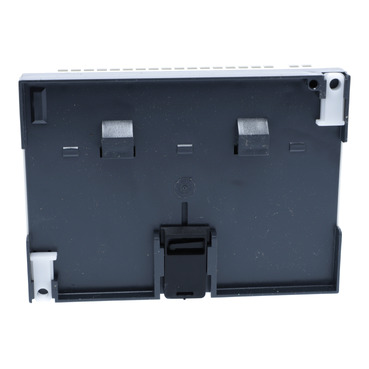

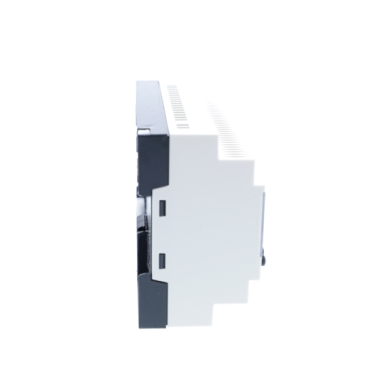

Zelio Logic Modular smart relay 26 I/O, 100...240V AC, clock, display

Item Number: SR3B261FU

1 PCE 0

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110550009	-

Specifications

Design

Range of product

Zelio Logic

Product or component type

modular smart relay

Warranty

18 months

Physical

Backup time

10 years at 25 °C

Protection type

against inversion of terminals (control instructions not executed)

Electrical durability

AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Mechanical durability

10000000 cycles for relay output

Connections - terminals

screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.4 kg

Product certifications

GOST
GL
CSA
UL
C-Tick

Standards

IEC 61000-4-12
IEC 60068-2-27 Ea
IEC 60068-2-6 Fc
IEC 61000-4-6 level 3
IEC 61000-4-5
IEC 61000-4-11
IEC 61000-4-3
IEC 61000-4-2 level 3
IEC 61000-4-4 level 3

Ip degree of protection

IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2
EMC directive conforming to IEC 61000-6-3
EMC directive conforming to IEC 61000-6-4
EMC directive conforming to IEC 61131-2 zone B
low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

-20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2
-20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Package 2 bare product quantity

Legacy weee scope

At least in Europe

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Local display

with

Number or control scheme lines

0...500 with FBD programming
0...240 with ladder programming

Cycle time

6...90 ms

Clock drift

12 min/year at 0-55 °C
6 s/month at 25-25 °C

Checks

program memory on each power up

[us] rated supply voltage

100...240 V

Supply voltage limits

85...264 V

Supply frequency

50/60 Hz

Maximum supply current

100 mA at 100 V (without extension)
50 mA at 240 V (without extension)
60 mA at 240 V (with extensions)
80 mA at 100 V (with extensions)

Power consumption in va

12 VA without extension
17 VA with extensions

Isolation voltage

1780 V

Discrete input number

Discrete input voltage

100...240 V AC

Discrete input current

0.6 mA

Discrete input frequency

47...53 Hz
57...63 Hz

Voltage state 1 guaranteed

>= 79 V for discrete input

Voltage state 0 guaranteed

<= 40 V for discrete input

Current state 1 guaranteed

>= 0.17 mA (discrete input)

Current state 0 guaranteed

<= 0.5 mA (discrete input)

Input impedance

350 kOhm for discrete input

Number of outputs

10 relay

Output voltage limits

5...30 V DC (relay output)
24...250 V AC

Contacts type and composition

NO for relay output

Output thermal current

5 A for 2 outputs for relay output
8 A for 8 outputs for relay output

Switching capacity in ma

>= 10 mA at 12 V (relay output)

Operating rate in hz

0.1 Hz (at Ie) for relay output
10 Hz (no load) for relay output

[uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

with

Response time

50 ms with ladder programming (from state 0 to state 1) for discrete input
50 ms with ladder programming (from state 1 to state 0) for discrete input
50...255 ms with FBD programming (from state 0 to state 1) for discrete input
50...255 ms with FBD programming (from state 1 to state 0) for discrete input
10 ms (from state 0 to state 1) for relay output
5 ms (from state 1 to state 0) for relay output

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Immunity to microbreaks

10 ms

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.800 cm

Package 1 width

10.000 cm

Package 1 length

13.500 cm

Package 1 weight

390.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.267 kg

Total lifecycle carbon footprint

328 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

47.777589501714715

Carbon footprint of the manufacturing phase [a1 to a3]

48 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.7742758466092284

Carbon footprint of the distribution phase [a4]

0.8 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.07329155318438658

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

278.54545857193057

Carbon footprint of the use phase [b2, b3, b4, b6]

279 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.9766928017366592

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Total lifecycle carbon footprint

328.14730827517553

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
