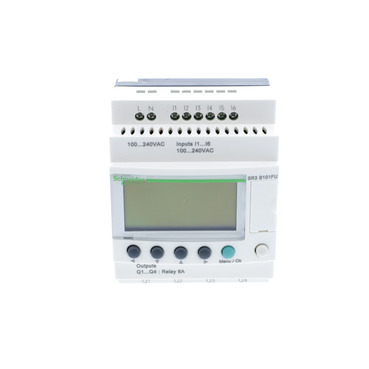

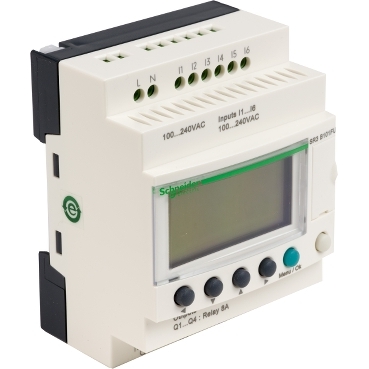

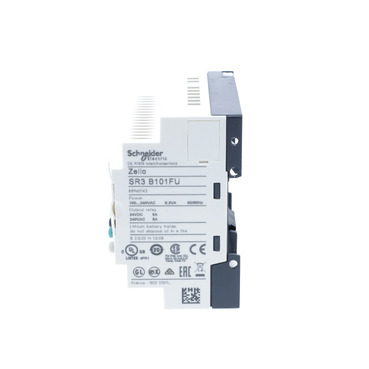

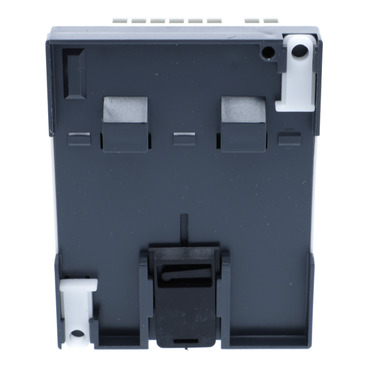

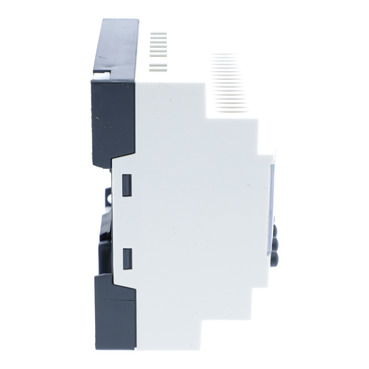

Zelio Logic Modular smart relay 10 I/O, 100...240V AC, clock, display

Item Number: SR3B101FU

1 PCE 0

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 10 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110549911	-

Specifications

Design

Range of product	Zelio Logic
Product or component type	modular smart relay
Warranty	18 months

Physical

Backup time	10 years at 25 °C
Protection type	against inversion of terminals (control instructions not executed)
Electrical durability	AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Mechanical durability	10000000 cycles for relay output
Connections - terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
Net weight	0.25 kg
Product certifications	GOST C-Tick CSA UL GL
Standards	IEC 61000-4-12 IEC 61000-4-4 level 3 IEC 61000-4-6 level 3 IEC 61000-4-3 IEC 61000-4-2 level 3 IEC 61000-4-5 IEC 61000-4-11 IEC 60068-2-6 Fc IEC 60068-2-27 Ea
Ip degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Environmental characteristic	EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B low voltage directive conforming to IEC 61131-2
Ambient air temperature for operation	-20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2 -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
Ambient air temperature for storage	-40...70 °C
Relative humidity	95 % without condensation or dripping water
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0604006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Package 1 bare product quantity	1
Package 2 bare product quantity	30
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Local display	with
Number or control scheme lines	0...500 with FBD programming 0...240 with ladder programming
Cycle time	6...90 ms
Clock drift	12 min/year at 0-55 °C 6 s/month at 25-25 °C
Checks	program memory on each power up
[us] rated supply voltage	100...240 V
Supply voltage limits	85...264 V
Supply frequency	50/60 Hz
Maximum supply current	30 mA at 240 V (without extension) 40 mA at 240 V (with extensions) 80 mA at 100 V (with extensions) 80 mA at 100 V (without extension)
Power consumption in va	12 VA with extensions 7 VA without extension
Isolation voltage	1780 V
Discrete input number	6
Discrete input voltage	100...240 V AC
Discrete input current	0.6 mA
Discrete input frequency	57...63 Hz 47...53 Hz
Voltage state 1 guaranteed	>= 79 V for discrete input
Voltage state 0 guaranteed	<= 40 V for discrete input
Current state 1 guaranteed	>= 0.17 mA (discrete input)
Current state 0 guaranteed	<= 0.5 mA (discrete input)
Input impedance	350 kOhm for discrete input
Number of outputs	4 relay
Output voltage limits	5...30 V DC (relay output) 24...250 V AC
Contacts type and composition	NO for relay output
Output thermal current	8 A for all 4 outputs for relay output
Switching capacity in ma	>= 10 mA at 12 V (relay output)
Operating rate in hz	0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output
[uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Clock	with
Response time	50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output
Tightening torque	0.5 N.m
Overvoltage category	III conforming to IEC 60664-1
Immunity to microbreaks	10 ms
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Pollution degree	2 conforming to IEC 61131-2
Operating altitude	2000 m
Maximum altitude transport	3048 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	9.000 cm
Package 1 length	10.000 cm
Package 1 weight	242.000 g
Unit type of package 2	S03
Number of units in package 2	30
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	7.816 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	195 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	29.64660681901272
Carbon footprint of the manufacturing phase [a1 to a3]	30 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.48044808943444434
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04547834838620911
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	164.00340084141706
Carbon footprint of the use phase [b2, b3, b4, b6]	164 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.6060504051801834
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Total lifecycle carbon footprint	194.7819845034306
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	eee2fc35-1620-4b70-b1d5-206e9240044e
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI0604006EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues

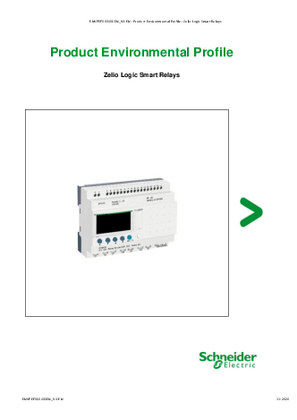

Environmental Disclosure

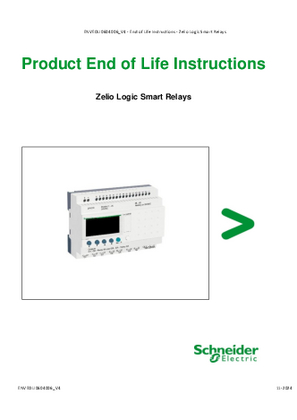

End of Life Manual

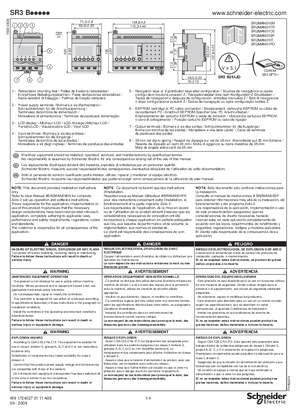

Installation Instruction
Operating Manuals
Technical illustration
Safety Data Sheet (SDS or MSDS)
Certificates (MSDS)
Declaration of Conformity
eTechPub
Declaration of Conformity (Sustainability)
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Zelio Logic Modular smart relay 10 I/O, 100...240V AC, clock, display

Item Number: SR3B101FU

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

End of Life Manual

Installation Instruction

Operating Manuals

Technical illustration

Safety Data Sheet (SDS or MSDS)

Certificates (MSDS)

Declaration of Conformity

eTechPub

Declaration of Conformity (Sustainability)

Software - Release

Compact smart relay Zelio Logic - 10 /12 IO - 3D CAD

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

Zelio Logic Smart Relays

Zelio Logic Smart Relays

SR3B... Logic modular module Zelio with screen

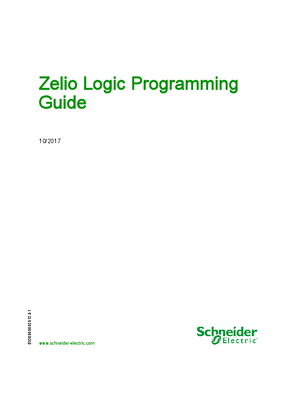

Zelio Logic Programming Guide

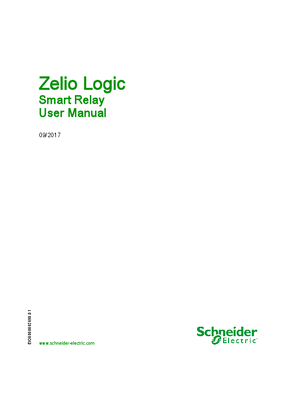

Zelio Logic - Smart Relay, User Manual

Zelio Soft 2 Applications Examples Guide

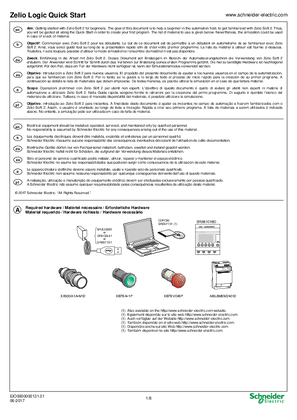

Zelio Logic 2 Quick Start

Technical Illustration for Zelio Logic - Dimension

SDS for Zelio offers with battery

Zelio SR2 SR3 CoC UL

DNV-GL Certificate Zelio

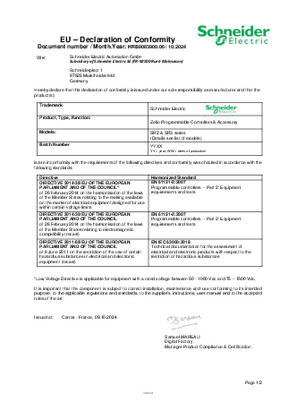

Zelio SR2 SR3 DoC

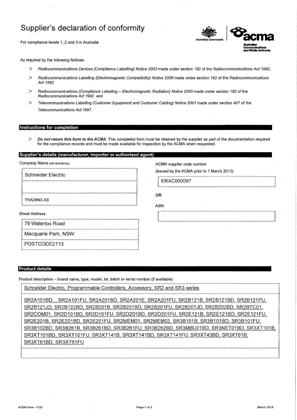

RCM_SR2_SR3_Zelio_Relay
