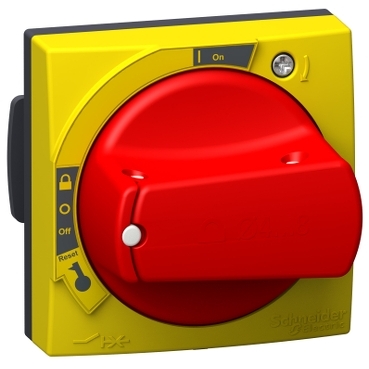

TeSys U Rotary handle TeSys Deca-GV3-U, IP65, red handle, without trip indication

Item Number: GVAPR65

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width60 mm

Height43 mm

Depth60 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480160905	-

Specifications

Design

Range of product	TeSys Deca TeSys Ultra
Range	TeSys
Product or component type	rotary handle
Product compatibility	GV2APN GV3APN LU9APN
Warranty	18 months

Physical

Range compatibility	TeSys TeSys GV2 TeSys TeSys GV3 TeSys TeSys Ultra
Height	43 mm
Width	60 mm
Depth	60 mm
Net weight	0.15 kg
Product certifications	cULus
Ip degree of protection	IP65
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2207006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	GVAP
Accessory / separate part category	control accessory
Handle colour	red
Handle front plate colour	yellow
Rotary handle padlocking	padlock in OFF position
Rotary handle mounting style	direct
Locking options description	1 to 3 padlocks
Compatibility code	GVAP
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.5 cm
Package 1 width	9.0 cm
Package 1 length	13.5 cm
Package 1 weight	182.0 g
Unit type of package 2	S03
Number of units in package 2	32
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	6.569 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.9853319101780165
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05244448220453967
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013779343917312588
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.015510999999999997
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.38430494967805917
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.4513716859779278
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	66ab381c-81b1-42a8-ae7a-ce3f5adb691a
China rohs label	3
End of life manual availability	ENVEOLI2207006
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
