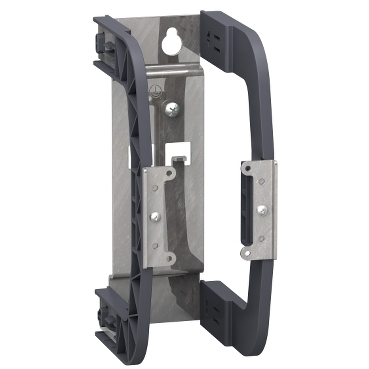

TeSys GV2 Mounting bracket for motor circuit breaker TeSys Deca, alignment of extended rotary handle

Home ProductsIndustrialTeSysMounting bracket for motor circuit breaker

TeSys GV2 Mounting bracket for motor circuit breaker TeSys Deca, alignment of extended rotary handle

Item Number: GVAPH02

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width65 mm

Height icon

Height174 mm

Depth icon

Depth151 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys GV2
  • TeSys Deca

Range

TeSys

Product or component type

mounting bracket

Product compatibility

  • GV2APN01
  • GV2APN02
  • GV2APN03
  • GV2APN04

Warranty

18 months

Physical

Height

174 mm

Width

65 mm

Depth

151 mm

Net weight

0.3 kg

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GVAP

Accessory / separate part category

control accessory

Compatibility code

GVAP

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.2 cm

Package 1 width

18.5 cm

Package 1 length

27.2 cm

Package 1 weight

417.0 g

Unit type of package 2

S03

Number of units in package 2

6

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

2.908 kg

Sustainable packaging

No

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

66ab381c-81b1-42a8-ae7a-ce3f5adb691a

End of life manual availability

ENVEOLI2207006

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Technical Drawing

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys GV2 - BRACKET GV2 - 3D CAD
ZIP

TeSys GV2 - BRACKET GV2 - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 620.7 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB

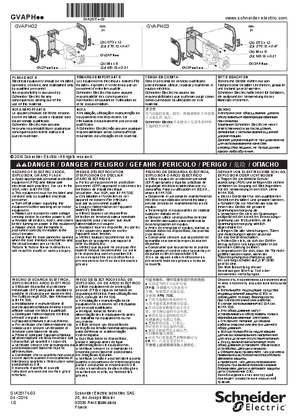

GVAPH - Hard brackets for TeSys GV external operators
