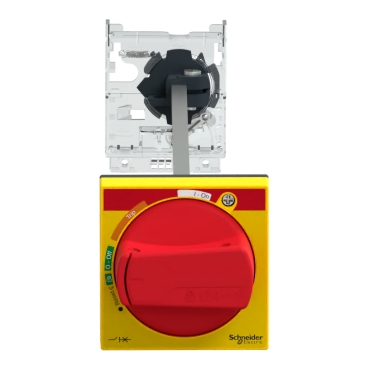

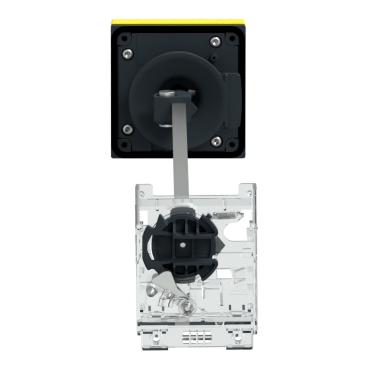

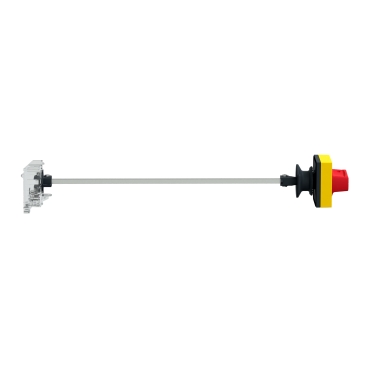

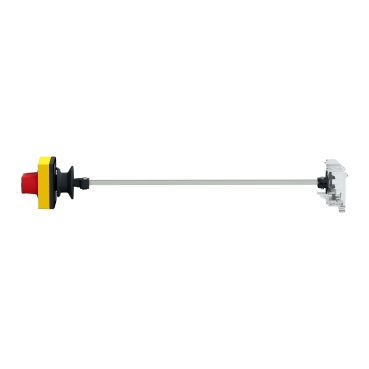

TeSys GV2 Extended rotary handle kit TeSys Deca, IP54, red handle, with trip indication, for GV2L-GV2P

Home ProductsIndustrialTeSysExtended rotary handle kit

TeSys GV2 Extended rotary handle kit TeSys Deca, IP54, red handle, with trip indication, for GV2L-GV2P

Item Number: GV2APN02

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

rotary handle kit

Product compatibility

  • GV2L
  • GV2P

Warranty

18 months

Physical

Net weight

0.3 kg

Product certifications

cULus

Ip degree of protection

IP54

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GV2AP

Accessory / separate part category

control accessory

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

padlock in OFF position

Rotary handle mounting style

extended

Locking options description

1 to 3 padlocks

Back/door distance

140...250 mm

Compatibility code

GV2AP

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.600 cm

Package 1 width

8.900 cm

Package 1 length

37.100 cm

Package 1 weight

349.000 g

Unit type of package 2

S03

Number of units in package 2

12

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.736 kg

Unit type of package 3

P06

Number of units in package 3

96

Package 3 height

77.000 cm

Package 3 width

80.000 cm

Package 3 length

60.000 cm

Package 3 weight

46.260 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

66ab381c-81b1-42a8-ae7a-ce3f5adb691a

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
