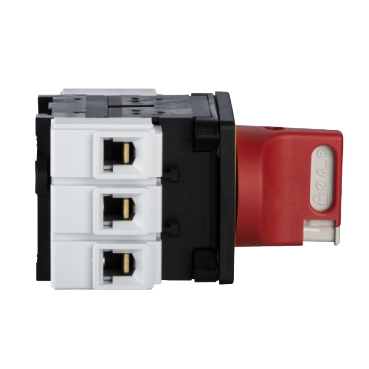

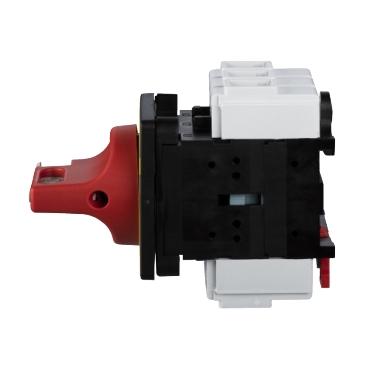

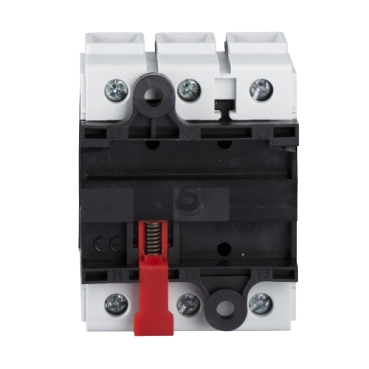

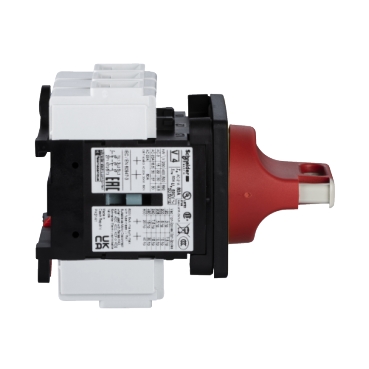

TeSys Mini-Vario Emergency stop switch disconnector 80A, on door

Item Number: VCF4

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110166002	-

Specifications

Design

Range	TeSys
Product or component type	emergency stop switch disconnector
Warranty	18 months

Physical

Mounting support	handle: door switch: door
Fixing mode	by 4 screws for handle
[ue] rated operational voltage	690 V AC 50/60 Hz
[ie] rated operational current	57 A AC-23 Ue: 400 V
Control type	rotary handle
Marking	0 - 1
Mechanical durability	30000 cycles
Electrical durability	30000 cycles AC-21 30000 cycles DC-1...5
Connections - terminals	power circuit: screw clamp terminals25-25 mm² - solid power circuit: screw clamp terminals16-16 mm² - flexible - with cable end
Height	83 mm
Width	60 mm
Net weight	0.56 kg
Standards	IEC 60947-3
Product certifications	CCC GL UL CSA UKCA
Ip degree of protection	IP20 conforming to IEC 60529 IP65
Ambient air temperature for operation	-20...50 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2211006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Material

Device composition	switch handle

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Package 2 bare product quantity	12
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys VARIO
Device short name	VCF
Performance level	high performance
Poles description	3P
Contacts type and composition	3 NO
Rated operational power in w	18.5 kW at 690 V (AC-3) 15 kW at 230...240 V (AC-3) 22 kW at 400...415 V (AC-3) 30 kW at 500 V (AC-3) 30 kW at 690 V (AC-23A) 37 kW at 500 V (AC-23A) 18.5 kW at 230...240 V (AC-23A) 30 kW at 400...415 V (AC-23A)
[ith] conventional free air thermal current	80 A
[ithe] conventional enclosed thermal current	63 A
Making capacity	800 A at 400 V AC-21A 800 A at 400 V AC-22A 800 A at 400 V AC-23A
Breaking capacity	640 A at 400 V (AC-21A) 640 A at 400 V (AC-22A) 640 A at 400 V (AC-23A)
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 80 A aM 10 kA at 400 V - associated fuse 80 A gG
[icm] rated short-circuit making capacity	2.1 kA at 400 V at Ipeak
[icw] rated short-time withstand current	960 A at 400 V duration: 1 s
[uimp] rated impulse withstand voltage	8 kV
Suitability for isolation	yes
Network type	DC AC
Intermittent duty class	30
Rotary handle mounting style	direct
Handle colour	red
Handle front plate colour	yellow
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
Tightening torque	power circuit: 4 N.m - on screw clamp terminals
Base dimension	60 x 60 mm
Protective treatment	TC
Mechanical robustness	vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Fire resistance	960 °C conforming to IEC 60695-2-1
Compatibility code	main switch disconnector
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.000 cm
Package 1 width	8.200 cm
Package 1 length	11.800 cm
Package 1 weight	353.000 g
Unit type of package 2	S02
Number of units in package 2	12
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.506 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	34 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.5374273778846352
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1091253899265686
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04909938306877692
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	28.971796700100345
Carbon footprint of the use phase [b2, b3, b4, b6]	29 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.4850328095210736
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	34.1524816605014
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	63dc4fbe-3f44-4801-881b-22a3bb8008d9
China rohs label	1
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
