TeSys D Auxiliary Contact Block TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

Item Number: LAD8N11

1 PCE 0

TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

Download

Product Dimensions

Width12.5 mm

Height72 mm

Depth71.3 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110384673	-

Specifications

Design

Range	TeSys
Range of product	TeSys Deca
Product or component type	auxiliary contact block

Physical

Range compatibility	TeSys Deca LC1D09…95 AC coil TeSys Deca LC1D115/150 TeSys Deca LC1D40A…80A AC Coil TeSys Deca CAD AC coil TeSys F LC1F
[ue] rated operational voltage	690 V AC 25...400 Hz
[ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications	CB Scheme UL CSA CCC EAC UKCA
Protection type	gG fuse 10 A
Mechanical durability	30 Mcycles
Insulation resistance	> 10 MOhm
Connections - terminals	screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end
Height	72 mm
Width	12.5 mm
Depth	71.3 mm
Environmental characteristic	normal environment
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for storage	-60...80 °C
Ambient air temperature for operation	-5...60 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1108007EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 2 bare product quantity	60
Package 3 bare product quantity	960
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys Deca
Mounting location	side
Pole contact composition	1 NO + 1 NC
Auxiliary contacts operation	instantaneous
[ui] rated insulation voltage	690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA
[ith] conventional free air thermal current	10 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating	100 A 1 s 120 A 500 ms 140 A 100 ms
Minimum switching current	5 mA
Minimum switching voltage	17 V
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Tightening torque	1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2
Shielding continuity terminal	without
Protective treatment	TH conforming to IEC 60068
Operating altitude	3000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.900 cm
Package 1 width	7.300 cm
Package 1 length	8.100 cm
Package 1 weight	60.000 g
Unit type of package 2	S02
Number of units in package 2	60
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.124 kg
Unit type of package 3	P06
Number of units in package 3	960
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	79.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.41771858290220826
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06786586045038151
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.008480726561347006
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.5803
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.15462428493948835
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.2289894548534255
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Technical Drawing
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys D Auxiliary Contact Block TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

Item Number: LAD8N11

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Technical Drawing

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

CONTACTS BLOCK - 3D CAD

LAD8N11_CAD_DOC

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Auxiliary contact block, TeSys Deca

Instruction Sheet - ATS01N2...Q/LY

TeSys Deca - Contactors / Reversing-contactors

2 Auxiliary instantaneous contact block by connection scew clA terminals Technical drawings

2 Auxiliary instantaneous contact bloc by connection scew clA terminal Technical drawings

LAD8N11_2DSalesDrawing_PDF

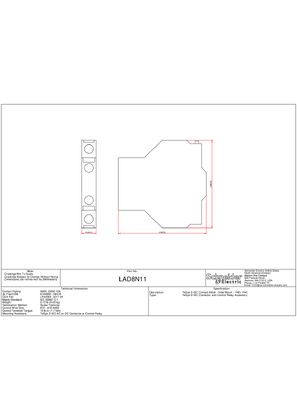

Technical drawing for LAD8N11_CAD_DOC

CB Certificate TeSys D - LAD8N_Batam plant

UL Certificate of Compliance _ TeSys D_LA1DN,LADN,LA1DC,LADC,LA8DN,LAD8N,LADN..R

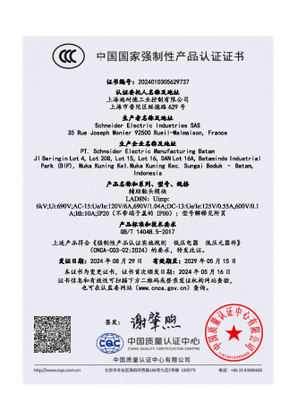

CCC_TeSys Deca_LAD8N
