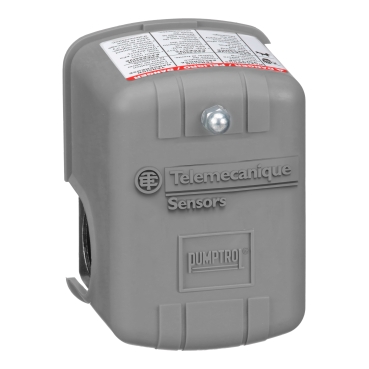

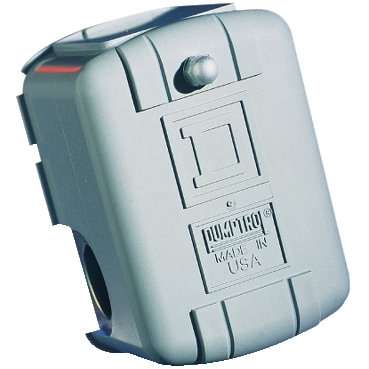

Nema Pressure Switches Pressure Switch 575V Ac 1Hp F +Options

Item Number: 9013FHG12J52B7PU2

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width2.78 in

Height icon

Height3.71 in

Depth icon

Depth3.76 in

See full specifications

Specifications

Design

Range of product

Pumptrol

Warranty

18 months

Physical

Quantity per set

1

Type of packing

individual

Electrical durability

100000 cycles, operating rate <10 cyc/mn

Mechanical durability

300000 cycles

Net weight

1.15 lb(US)

Width

2.78 in

Height

3.71 in

Depth

3.76 in

Standards

  • CE
  • UL 508

Ambient air temperature for operation

-22...158 °F

Ambient air temperature for storage

-22...158 °F

Ip degree of protection

IP20 conforming to IEC 60529

Product certifications

  • UL listed
  • CSA

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Environmental disclosure

ENVPEP111211EN

Circularity profile

ENVEOLI111210EN

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • polypropylene: cover
  • noryl thermoplastic resin or equivalent: cover

Others

Packaging without single use plastic

No

Packaging made with recycled cardboard

No

Package 1 bare product quantity

1

Important message

We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com

Commercial status history

  • SESA301466
  • Fri Dec 01 08:23:00 EST 2023
  • From Import Local
  • From 19 to 19

Pressure sensor name

9013FH

Pressure sensor size

150 psi

Value of setting

off at 125 psi

Electrical circuit type

power circuit

Product specific application

control small electrically driven air compressors

Pressure sensor type

electromechanical pressure switch

Controlled fluid

air (32-158 °F)

Adjustable range on rising pressure

70...150 psi

Approximate fixed differential

30 psi

Destruction pressure

220 psi

Pressure actuator

diaphragm

Pressure switch type of operation

regulation between 2 thresholds

Scale type

fixed differential

Setting

internal

Local display

without

Contacts type and composition

2 NC, snap action, DPST-DB, Form YY

Cable entry number

2 0.88 in cable entries with 0.84 in across flats conforming to UL 508

Electrical connection

slip-on connectors (line and load terminals)

Fluid connection type

0.25 inch NPSF internal conforming to UL 508

Short-circuit protection

20 A cartridge fuse, type gG

Materials in contact with fluid

  • zinc plated steel or equivalent flange
  • nitrile (Buna-N) or equivalent rubber diaphragm

Operating position

any position

Motor power kw

  • 1.1 kW (1.5 hp) at 115 V AC, 1 phase
  • 1.5 kW (2 hp) at 230 V AC, 1 phase
  • 1.5 kW (2 hp) at 115 V AC, 3 phases
  • 2.2 kW (3 hp) at 230 V AC, 3 phases
  • 0.75 kW (1 hp) at 460 V AC, 3 phases
  • 0.75 kW (1 hp) at 575 V AC, 3 phases

Terminal block type

4 terminals

Maximum operating rate

10 cyc/mn

[ui] rated insulation voltage

575 V conforming to UL 508

Repeat accuracy

+/- 3 %

Terminals description iso n°1

  • L1-T1
  • L2-T2

Factory modification

  • supplied with 1 grommet
  • pulsation plug

Protective treatment

none

Nema degree of protection

NEMA 1 conforming to UL 50

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.4 cm

Package 1 width

7.1 cm

Package 1 length

9.6 cm

Package 1 weight

453.592 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
