Modicon M221 Serial line cartridge 1 communication extension

Home ProductsIndustrialModiconSerial line cartridge

Modicon M221 Serial line cartridge 1 communication extension

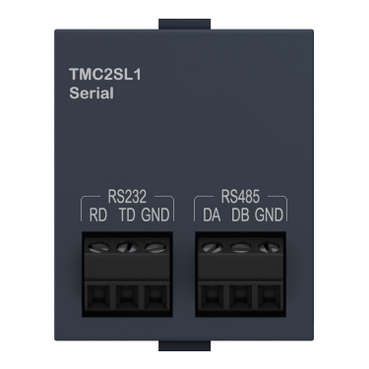

Item Number: TMC2SL1

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width35 mm

Height icon

Height41 mm

Depth icon

Depth15 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon M221

Product or component type

serial line cartridge

Product compatibility

Modicon M221C

Physical

Integrated connection type

  • non isolated serial link - screw terminal block for RS232
  • non isolated serial link - screw terminal block for RS485

Communication port protocol

non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network

Height

41 mm

Depth

15 mm

Width

35 mm

Net weight

0.015 kg

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403017EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

75

Package 3 bare product quantity

2400

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Transmission rate

  • 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232

Insulation

non-insulated between lines and internal logic

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.569 cm

Package 1 width

4.742 cm

Package 1 length

6.985 cm

Package 1 weight

30.0 g

Unit type of package 2

CAR

Number of units in package 2

75

Package 2 height

14.4 cm

Package 2 width

29.2 cm

Package 2 length

39.5 cm

Package 2 weight

3.32 kg

Unit type of package 3

P12

Number of units in package 3

2400

Package 3 height

105 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

111 kg

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1403017EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
