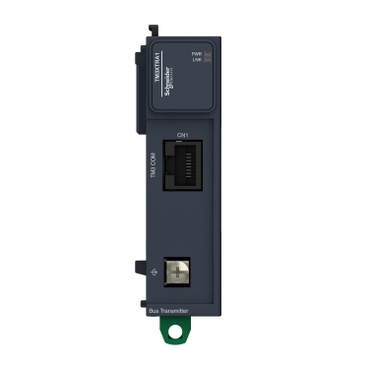

Modicon TM3, Remote transmitter module

Item Number: TM3XTRA1

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width23.65 mm

Height90 mm

Depth73.3 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480611230	-

Specifications

Design

Range of product	Modicon TM3
Product or component type	remote transmitter module

Physical

Range compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262
Local signalling	1 LED green for power supply 1 LED green for Link (Link Status)
Mounting support	top hat type TH35-15 rail conforming to IEC 60715 top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.65 mm
Depth	73.3 mm
Net weight	0.065 kg
Ip degree of protection	IP20
Marking	CE
Product certifications	Merchant Navy C-Tick GOST CSA HazLoc CE UKCA RCM EAC cULus
Standards	CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D UL 1604 Class 1 Division 2 CSA C22.2 No 142 IEC 61131-2 UL 508
Ambient air temperature for operation	-10...55 °C (horizontal installation) -10...50 °C (vertical installation)
Ambient air temperature for storage	-40...70 °C
Relative humidity	5...95 % without condensation
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1403011EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
	At least in Europe
Package 1 bare product quantity	1
Package 2 bare product quantity	18
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Current consumption	100 mA at 5 V DC via bus connector at state on 30 mA at 5 V DC via bus connector at state off
Maximum power dissipation in w	0.6 W
Cable distance between devices	0.5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
Electrical connection	RJ45 connector for connecting the bus receiver screw connector terminal for connecting the functional ground
Dc supply voltage	24 V
Network type	DC
Number of hw interfaces can	0
Number of hw interfaces industrial ethernet	0
Number of hw interfaces profinet	0
Number of hw interfaces serial rs232	0
Number of hw interfaces serial rs422	0
Number of hw interfaces serial rs485	0
Number of hw interfaces serial tty	0
Number of hw interfaces usb	0
Number of hw interfaces parallel	0
Number of hw interfaces wireless	0
Number of hw interfaces other	1
Supporting protocol for ethercat	false
Supporting protocol for tcp/ip	false
Supporting protocol for profibus	false
Supporting protocol for can	false
Supporting protocol for interbus	false
Supporting protocol for asi	false
Supporting protocol for knx	false
Supporting protocol for modbus	false
Supporting protocol for data-highway	false
Supporting protocol for devicenet	false
Supporting protocol for suconet	false
Supporting protocol for lon	false
Supporting protocol for sercos	false
Supporting protocol for profinet io	false
Supporting protocol for profinet cba	false
Supporting protocol for foundation fieldbus	false
Supporting protocol for ethernet/ip	false
Supporting protocol for as-interface safety at work	false
Supporting protocol for devicenet safety	false
Supporting protocol for interbus-safety	false
Supporting protocol for profisafe	false
Supporting protocol for safetybus p	false
Supporting protocol for other bus systems	false
Radio standard bluetooth	false
Radio standard wi-fi 802.11	false
Radio standard gprs	false
Radio standard egprs	false
Radio standard gsm	false
Radio standard lte	false
Radio standard umts	false
Io-link master present	false
System accessory	false
Potential separation present	false
Bearing track assembly possible	true
Wall mounting/direct mounting possible	false
Front installation possible	false
Rack-assembly possible	false
Suitable for safety functions	false
Electromagnetic emission	radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011
Operating altitude	0...2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5-8.4 Hz) on DIN rail 3 gn (f = 8.4-150 Hz) on DIN rail 3.5 mm (f = 5-8.4 Hz) on panel mounting 3 gn (f = 8.4-150 Hz) on panel mounting
Shock resistance	15 gn for 11 ms
Performance level according to en iso 13849-1	none
Appendant operation agent (ex ia)	false
Appendant operation agent (ex ib)	false
Certified for ul hazardous location class i	false
Certified for ul hazardous location class ii	false
Certified for ul hazardous location class iii	false
Certified for ul hazardous location division 1	false
Certified for ul hazardous location division 2	false
Certified for ul hazardous location group a (acetylene)	false
Certified for ul hazardous location group b (hydrogen)	false
Certified for ul hazardous location group c (ethylene))	false
Certified for ul hazardous location group d (propane))	false
Certified for ul hazardous location group e (metal dusts)	false
Certified for ul hazardous location group f (carbonaceous dust)	false
Certified for ul hazardous location group g (non conductive dust)	false
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.500 cm
Package 1 width	10.700 cm
Package 1 length	12.700 cm
Package 1 weight	166.000 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.721 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	27 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4486
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.021856
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00047127
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	25.735
Carbon footprint of the use phase [b2, b3, b4, b6]	26 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.046685
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	27.253
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	91cf81c4-f22d-428b-a036-2e24fcc66509
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI1403011EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
