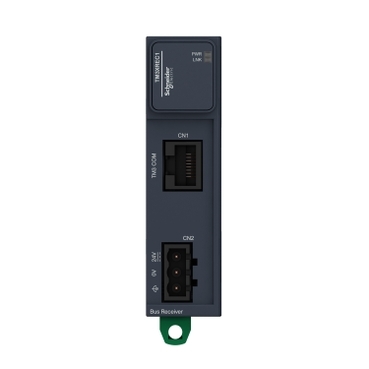

Modicon TM3, Remote receiver module

Item Number: TM3XREC1

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width23.65 mm

Height90 mm

Depth73.3 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480611247	-

Specifications

Design

Range of product	Modicon TM3
Product or component type	remote receiver module

Physical

Range compatibility	Modicon M221 Modicon M251 Modicon M241 Modicon M262
Local signalling	1 LED green for power supply 1 LED green for Link (Link Status)
Mounting support	top hat type TH35-15 rail conforming to IEC 60715 top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.65 mm
Depth	73.3 mm
Net weight	0.075 kg
Ip degree of protection	IP20
Marking	CE
Product certifications	Merchant Navy GOST C-Tick CSA HazLoc CE UKCA RCM EAC cULus
Standards	CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D UL 1604 Class 1 Division 2 CSA C22.2 No 142 IEC 61131-2 UL 508
Ambient air temperature for operation	-10...55 °C (horizontal installation) -10...50 °C (vertical installation)
Ambient air temperature for storage	-40...70 °C
Relative humidity	5...95 % without condensation
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1403011EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Package 2 bare product quantity	18
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Maximum number of i/o expansion module	7
[us] rated supply voltage	24 V DC by external supply (- 15...20 %)
Power supply output current	560 mA 5 V for expansion bus 560 mA 24 V for expansion bus
Current consumption	40 mA at 24 V DC via bus connector
Maximum power dissipation in w	1 W
Cable distance between devices	0.5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
Electrical connection	RJ45 connector for connecting the bus transmitter removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply
Dc supply voltage	24 V
Network type	DC
Number of hw interfaces can	0
Number of hw interfaces industrial ethernet	0
Number of hw interfaces profinet	0
Number of hw interfaces serial rs232	0
Number of hw interfaces serial rs422	0
Number of hw interfaces serial rs485	0
Number of hw interfaces serial tty	0
Number of hw interfaces usb	0
Number of hw interfaces parallel	0
Number of hw interfaces wireless	0
Number of hw interfaces other	1
Supporting protocol for ethercat	false
Supporting protocol for tcp/ip	false
Supporting protocol for profibus	false
Supporting protocol for can	false
Supporting protocol for interbus	false
Supporting protocol for asi	false
Supporting protocol for knx	false
Supporting protocol for modbus	false
Supporting protocol for data-highway	false
Supporting protocol for devicenet	false
Supporting protocol for suconet	false
Supporting protocol for lon	false
Supporting protocol for sercos	false
Supporting protocol for profinet io	false
Supporting protocol for profinet cba	false
Supporting protocol for foundation fieldbus	false
Supporting protocol for ethernet/ip	false
Supporting protocol for as-interface safety at work	false
Supporting protocol for devicenet safety	false
Supporting protocol for interbus-safety	false
Supporting protocol for profisafe	false
Supporting protocol for safetybus p	false
Supporting protocol for other bus systems	false
Radio standard bluetooth	false
Radio standard wi-fi 802.11	false
Radio standard gprs	false
Radio standard egprs	false
Radio standard gsm	false
Radio standard lte	false
Radio standard umts	false
Io-link master present	false
System accessory	false
Potential separation present	false
Bearing track assembly possible	true
Wall mounting/direct mounting possible	false
Front installation possible	false
Rack-assembly possible	false
Suitable for safety functions	false
Electromagnetic emission	radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011
Operating altitude	0...2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5-8.4 Hz) on DIN rail 3 gn (f = 8.4-150 Hz) on DIN rail 3.5 mm (f = 5-8.4 Hz) on panel mounting 3 gn (f = 8.4-150 Hz) on panel mounting
Shock resistance	15 gn for 11 ms
Performance level according to en iso 13849-1	none
Appendant operation agent (ex ia)	false
Appendant operation agent (ex ib)	false
Certified for ul hazardous location class i	false
Certified for ul hazardous location class ii	false
Certified for ul hazardous location class iii	false
Certified for ul hazardous location division 1	false
Certified for ul hazardous location division 2	false
Certified for ul hazardous location group a (acetylene)	false
Certified for ul hazardous location group b (hydrogen)	false
Certified for ul hazardous location group c (ethylene))	false
Certified for ul hazardous location group d (propane))	false
Certified for ul hazardous location group e (metal dusts)	false
Certified for ul hazardous location group f (carbonaceous dust)	false
Certified for ul hazardous location group g (non conductive dust)	false
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.414 cm
Package 1 width	10.483 cm
Package 1 length	12.587 cm
Package 1 weight	160.0 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	3.631 kg
Unit type of package 3	P12
Number of units in package 3	144
Package 3 height	75 cm
Package 3 width	60 cm
Package 3 length	80 cm
Package 3 weight	40 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	21 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3682172373
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0206432113
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0004451192
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	19.5927483525
Carbon footprint of the use phase [b2, b3, b4, b6]	20 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.044094451
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.0261483714
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	91cf81c4-f22d-428b-a036-2e24fcc66509
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI1403011EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Operating Manuals
Technical Drawing
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Compact Hardwired Logic Controller M241 - Wiring Diagram

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 15.2 MB

ZIP

MODULE TM3-BUS RECEIVER - 3D CAD

VERSION

1.0

DATE

11 Jan 2022

REVISION

1.0

DOWNLOAD (ZIP) 4.3 MB

ZIP

Discover catalog for EcoStruxure Automation Expert

VERSION

10.0

DATE

12 Feb 2026

REVISION

10.0

DOWNLOAD (ZIP) 6 MB

ZIP

Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023

VERSION

8.0

DATE

29 Jul 2024

REVISION

8.0

DOWNLOAD (ZIP) 12.8 MB

ZIP

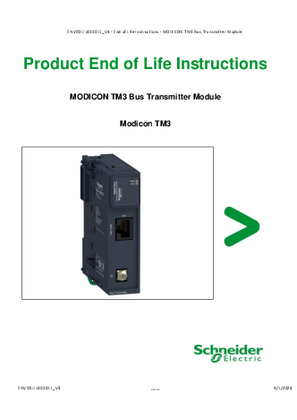

MODICON TM3 Bus Transmitter Module Product End-of-Life Instructions

VERSION

4.0

DATE

14 Oct 2024

REVISION

4.0

DOWNLOAD (ZIP) 330.9 KB

ZIP

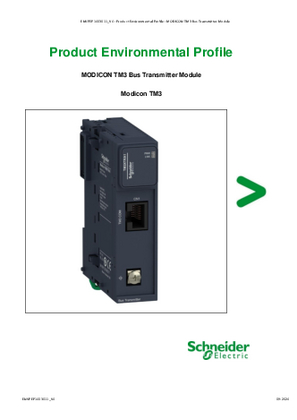

MODICON TM3 Bus Transmitter Module Product Environmental Profile

VERSION

4.0

DATE

14 Oct 2024

REVISION

4.0

DOWNLOAD (ZIP) 275.4 KB

ZIP

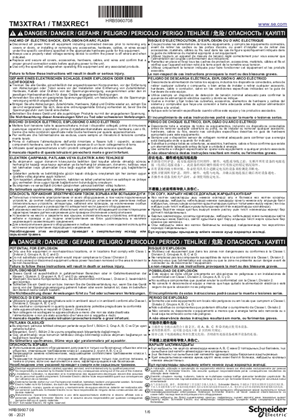

TM3XTRA1 / TM3XREC1 Transmitter receiver Modules - Instruction sheet (EN)

VERSION

6.0

DATE

27 Sep 2023

REVISION

6.0

DOWNLOAD (ZIP) 2.7 MB

ZIP

Modicon TM3 (EcoStruxure Machine Expert - Basic) Expansion Modules, Programming Guide

VERSION

6.0

DATE

18 Dec 2025

REVISION

6.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

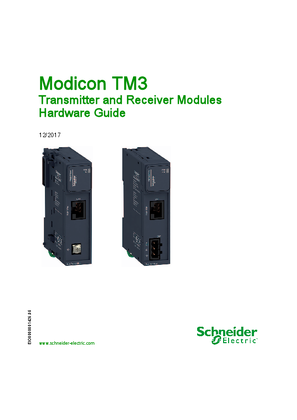

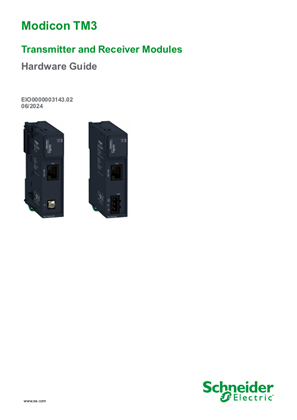

Modicon TM3 Transmitter and Receiver Modules, Hardware Guide

VERSION

3.0

DATE

20 Jul 2024

REVISION

3.0

DOWNLOAD (ZIP) 3.1 MB

ZIP

Modicon TM3 Transmitter and Receiver Modules, Hardware Guide - SoMachine

VERSION

6.0

DATE

20 May 2024

REVISION

6.0

DOWNLOAD (ZIP) 2.2 MB

ZIP

Modicon TM3 - Expansion Modules, Programming Guide - SoMachine

VERSION

8.0

DATE

20 May 2024

REVISION

8.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

Modicon TM3 - Expansion Modules Configuration, Programming Guide - SoMachine Basic

VERSION

9.0

DATE

20 May 2024

REVISION

9.0

DOWNLOAD (ZIP) 2.1 MB

ZIP

Distributed Modbus TCP Logic Controller M251 - Wiring Diagram

VERSION

2.0

DATE

09 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.7 MB

ZIP

Modicon, TM241, TM251, IACS, DNV, Marine

VERSION

2.0

DATE

08 Apr 2026

REVISION

2.0

DOWNLOAD (ZIP) 175.8 KB

ZIP

Modicon, TM241, TM251, IACS, LR, Marine

VERSION

4.0

DATE

29 Aug 2025

REVISION

4.0

DOWNLOAD (ZIP) 914 KB

ZIP

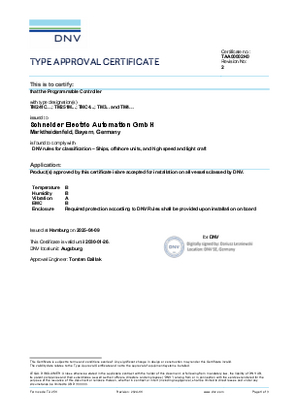

Modicon, TM241, TM251, TMC4, TM3, TM4, DNV, Marine

VERSION

1.0

DATE

16 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 175.8 KB

ZIP

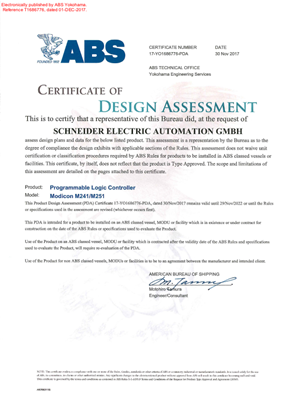

Modicon, TM241, TM251, IACS, ABS, Marine

VERSION

1.1

DATE

04 Mar 2024

REVISION

1.1

DOWNLOAD (ZIP) 4 MB

ZIP

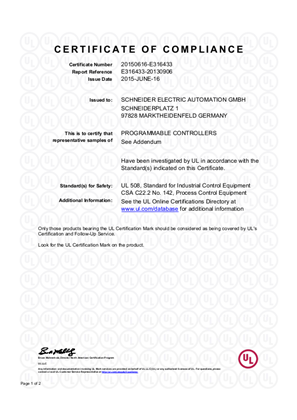

Modicon, TM241, TM251, TMC4, TM3X, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 400.8 KB

ZIP

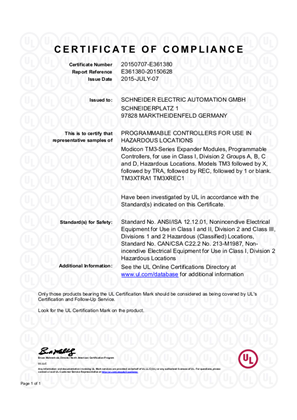

Modicon, TM3XREC1, TM3XTRA1, Certificate, cULus, Hazardous Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 373.1 KB

ZIP

English

VERSION

8.0

DATE

02 Dec 2024

REVISION

8.0

DOWNLOAD (ZIP) 2.5 MB

ZIP

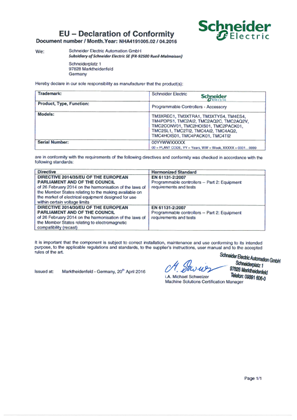

Modicon DoC TM4_TMC_TM3-Expert

VERSION

1.1

DATE

06 Oct 2022

REVISION

1.1

DOWNLOAD (ZIP) 352.9 KB

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

TM3XREC1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

How to check wiring if Communication issue happens from TM3 Remote transmitter module (TM3XTRA1) and receiver module (TM3XREC1)

Hide Show

When there is communication issue happen in between TM3 Remote transmitter module (TM3XTRA1) and receiver module (TM3XREC1), this checklist can be utilized to check if wiring is up to the request.

Colour ()

Modicon TM3, Remote receiver module

Item Number: TM3XREC1

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Technical Drawing

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

Compact Hardwired Logic Controller M241 - Wiring Diagram

MODULE TM3-BUS RECEIVER - 3D CAD

Discover catalog for EcoStruxure Automation Expert

Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023

MODICON TM3 Bus Transmitter Module Product End-of-Life Instructions

MODICON TM3 Bus Transmitter Module Product Environmental Profile

TM3XTRA1 / TM3XREC1 Transmitter receiver Modules - Instruction sheet (EN)

Modicon TM3 (EcoStruxure Machine Expert - Basic) Expansion Modules, Programming Guide

Modicon TM3 Transmitter and Receiver Modules, Hardware Guide

Modicon TM3 Transmitter and Receiver Modules, Hardware Guide - SoMachine

Modicon TM3 - Expansion Modules, Programming Guide - SoMachine

Modicon TM3 - Expansion Modules Configuration, Programming Guide - SoMachine Basic

Distributed Modbus TCP Logic Controller M251 - Wiring Diagram

Modicon, TM241, TM251, IACS, DNV, Marine

Modicon, TM241, TM251, IACS, LR, Marine

Modicon, TM241, TM251, TMC4, TM3, TM4, DNV, Marine

Modicon, TM241, TM251, IACS, ABS, Marine

Modicon, TM241, TM251, TMC4, TM3X, Certificate, cULus, Ordinary Location

Modicon, TM3XREC1, TM3XTRA1, Certificate, cULus, Hazardous Location

English

Modicon DoC TM4_TMC_TM3-Expert

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 China RoHS Regulation

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 EU RoHS Directive

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

TM3XREC1 REACh Regulation

Frequently Asked Questions

How to check wiring if Communication issue happens from TM3 Remote transmitter module (TM3XTRA1) and receiver module (TM3XREC1)

Related products

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller
