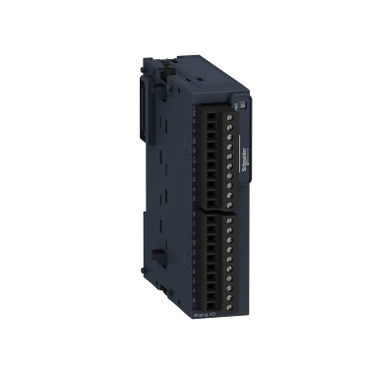

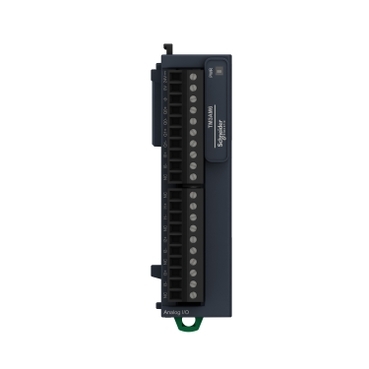

Modicon TM3 Input/output analog module 4 inputs, 2 output (screw) 24VDC

Item Number: TM3AM6

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width23.6 mm

Height90 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480648946	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

input/output analog module

Physical

Range compatibility

Modicon M221
Modicon M241
Modicon M251
Modicon M262

Load type

resistive

Type of cable

twisted shielded pairs cable <30 m for input/output circuit

Local signalling

1 LED (green) for PWR

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715
top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

Height

90 mm

Depth

70 mm

Width

23.6 mm

Net weight

0.11 kg

Standards

IEC 61131-2

Product certifications

CE
UKCA
RCM
EAC
cULus
cULus HazLoc

Ambient air temperature for operation

-10...55 °C horizontal installation
-10...35 °C vertical installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)
10...95 %, without condensation (in storage)

Ip degree of protection

IP20

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Package 1 bare product quantity

Average percentage of recycled plastic content

0 %

Legacy weee scope

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Analogue input number

Analogue input type

current 4...20 mA
current 0...20 mA
voltage 0...10 V
voltage - 10...10 V

Analogue output number

Analogue output type

current: 4...20 mA
current: 0...20 mA
voltage: 0...10 V
voltage: - 10...10 V

Analogue input resolution

12 bits
11 bits + sign

Permissible continuous overload

13 V, analogue input type: voltage
40 mA, analogue input type: current

Input impedance

<= 50 Ohm current
>= 1 MOhm voltage

Analogue output resolution

12 bits
11 bits + sign

Lsb value

2.44 mV 0...10 Vvoltage
4.88 mV - 10...10 Vvoltage
4.88 µA 0...20 mAcurrent
3.91 µA 4...20 mAcurrent

Load impedance ohmic

1 kOhm voltage
300 Ohm current

Stabilisation time

1 ms

Conversion time

1 ms + 1 ms per channel + 1 controller cycle time

Sampling duration

1 ms
10 ms

Absolute accuracy error

+/- 1 % of full scale
+/- 0.2 % of full scale at 25 °C

Temperature drift

+/- 0.01 %FS/°C

Repeat accuracy

+/-0.5 %FS for input
+/-0.5 %FS for output

Non-linearity

+/- 0.2 %FS

Output ripple

20 mV

Cross talk

<= 1 LSB

[us] rated supply voltage

24 V DC

Supply voltage limits

20.4...28.8 V

Current consumption

45 mA at 5 V DC via bus connector no load
55 mA at 5 V DC via bus connector full load
55 mA at 24 V DC via external supply no load
100 mA at 24 V DC via external supply full load

Electrical connection

10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply

Insulation

between input and supply at 1500 V AC
between input and internal logic at 500 V AC
between output and supply at 1500 V AC
between output and internal logic at 500 V AC

Surge withstand

1 kV power supply common mode conforming to IEC 61000-4-5
0.5 kV power supply differential mode conforming to IEC 61000-4-5
1 kV I/O common mode conforming to IEC 61000-4-5
0.5 kV I/O differential mode conforming to IEC 61000-4-5

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2
4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m conforming to IEC 61000-4-8

Resistance to fast transients

1 kV (I/O) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on DIN rail
3 gn at 8.4-150 Hz on DIN rail

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.500 cm

Package 1 width

10.500 cm

Package 1 length

12.500 cm

Package 1 weight

214.000 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

10.027 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

64 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

13.831656049831228

Carbon footprint of the manufacturing phase [a1 to a3]

14 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.04780382750726785

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.005637499620482161

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

50.088756455125555

Carbon footprint of the use phase [b2, b3, b4, b6]

50 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.5118604793570386

Carbon footprint of the end-of-life phase [c1 to c4]

0.5 kg CO2 eq.

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

64.48571431144157

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

3b9533ee-f829-495f-9b87-8bb0822090f1

Pvc free

Yes

End of life manual availability

ENVEOLI1402009EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
