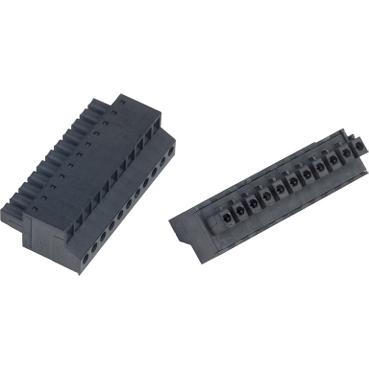

Modicon M221 Connector set for M221M and TM3 I/O

Item Number: TMAT2MSET

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480673481	-

Specifications

Design

Product or component type	terminal block
Product compatibility	discrete I/O module logic controller

Physical

Range compatibility	Modicon TM3 Modicon M221
Net weight	0.127 kg
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Legacy weee scope	Out
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	50
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	connection accessories
Accessory / separate part type	screw terminal block
Accessory / separate part destination	Modicon M221 Modicon TM3
Number of connectors	8 terminal block connector(s)
Electrical connection	removable screw terminal block, 10 terminal(s)for inputs/outputs (pitch 3.81 mm) removable screw terminal block, 11 terminal(s)for inputs/outputs (pitch 3.81 mm)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.500 cm
Package 1 width	5.000 cm
Package 1 length	10.500 cm
Package 1 weight	120.000 g
Unit type of package 2	S02
Number of units in package 2	50
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.005 kg
Sustainable packaging	No
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	c7f21d05-6c92-42e3-989d-d3708bb63262
China rohs label	5
Pvc free	Yes
Take-back	No
Warranty (in months)	18
