Modicon TM3 Analog input module 8 temperature inputs (spring) 24VDC
Item Number: TM3TI8TG
Specifications
Design
Range of product
Product or component type
Physical
Range compatibility
- Modicon M221
- Modicon M241
- Modicon M251
- Modicon M262
Type of cable
Local signalling
Marking
Mounting support
- top hat type TH35-15 rail conforming to IEC 60715
- top hat type TH35-7.5 rail conforming to IEC 60715
- plate or panel with fixing kit
Height
Depth
Width
Net weight
Standards
Product certifications
- CE
- UKCA
- RCM
- EAC
- cULus
- cULus HazLoc
Ambient air temperature for operation
- -10...55 °C horizontal installation
- -10...35 °C vertical installation
Ambient air temperature for storage
Relative humidity
- 10...95 %, without condensation (in operation)
- 10...95 %, without condensation (in storage)
Ip degree of protection
Reach regulation
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 2 bare product quantity
Package 3 bare product quantity
Package 1 bare product quantity
Analogue input number
Analogue input type
- thermocouple - 200...1000 °C with thermocouple J
- thermocouple - 200...1300 °C with thermocouple K
- thermocouple 0...1760 °C with thermocouple R
- thermocouple 0...1760 °C with thermocouple S
- thermocouple 0...1820 °C with thermocouple B
- thermocouple - 200...400 °C with thermocouple T
- thermocouple - 200...1300 °C with thermocouple N
- thermocouple - 200...800 °C with thermocouple E
- NTC 10k thermistor -90...150 °C
- PTC thermistor 100...10000 Ohm
Analogue input resolution
- 16 bits
- 15 bits + sign
Input impedance
- >= 1 MOhm thermocouple
- >= 1 MOhm temperature probe
- >= 1 MOhm thermistor
Lsb value
- 0.1 °Cthermocouple
- 0.1 °C with NTC probe
- 1 Ohm with PTC/NTC probe
Conversion time
Sampling duration
Absolute accuracy error
- +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C
- +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Temperature drift
Repeat accuracy
Non-linearity
Cross talk
[us] rated supply voltage
Supply voltage limits
Current consumption
- 30 mA at 24 V DC via external supply
- 45 mA at 5 V DC via bus connector
- 40 mA at 5 V DC via bus connector
Electrical connection
- 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
- 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Insulation
- between input and supply at 1500 V AC
- between input and internal logic at 500 V AC
Surge withstand
- 1 kV power supply common mode conforming to IEC 61000-4-5
- 0.5 kV power supply differential mode conforming to IEC 61000-4-5
- 1 kV input common mode conforming to IEC 61000-4-5
Resistance to electrostatic discharge
- 8 kV in air conforming to IEC 61000-4-2
- 4 kV on contact conforming to IEC 61000-4-2
Resistance to electromagnetic fields
- 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
- 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
- 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to magnetic fields
Resistance to fast transients
Resistance to conducted disturbances
- 10 V 0.15...80 MHz conforming to IEC 61000-4-6
- 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission
- radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
- radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011
Immunity to microbreaks
Pollution degree
Operating altitude
Storage altitude
Vibration resistance
- 3.5 mm at 5-8.4 Hz on DIN rail
- 3 gn at 8.4-150 Hz on DIN rail
Shock resistance
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Weee
Pvc free
Pvc free
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Global warming ; total life cycle
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

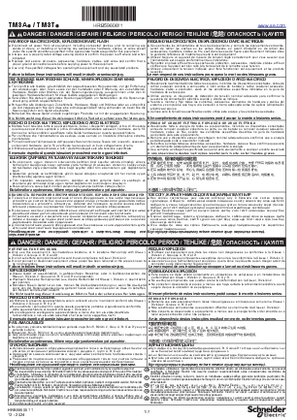

Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Operating Manuals
-
Technical Drawing
-
eTechPub
-
Certificates (MSDS)
-

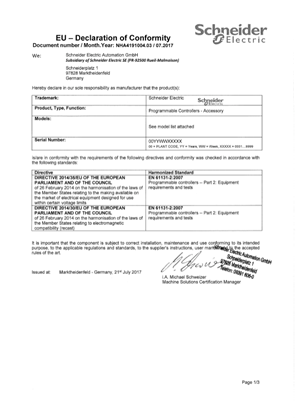

Declaration of Conformity
-
Firmware

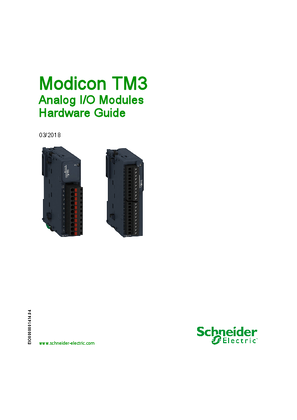

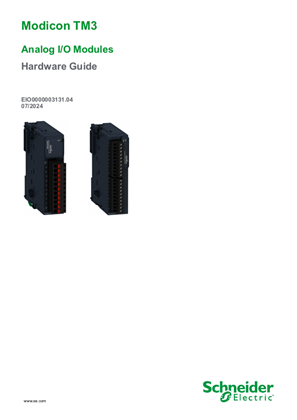

Modicon TM3 - Analog I/O Modules, Hardware Guide
VERSION
5.0
DATE
13 Aug 2024
REVISION
5.0
Modicon TM3 - Analog I/O Modules, Hardware Guide - SoMachine
VERSION
5.0
DATE
20 May 2024
REVISION
5.0

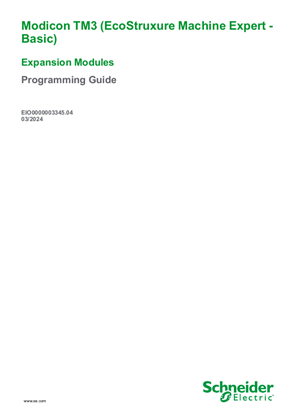

Modicon TM3 - Expansion Modules, Programming Guide - SoMachine
VERSION
8.0
DATE
20 May 2024
REVISION
8.0
Modicon TM3 - Expansion Modules Configuration, Programming Guide - SoMachine Basic
VERSION
9.0
DATE
20 May 2024
REVISION
9.0
Modicon TM3 (EcoStruxure Machine Expert - Basic) - Expansion Modules Configuration, Programming Guide
VERSION
5.0
DATE
09 May 2024
REVISION
5.0
Modicon, TM221, IACS, DNV, Marine
VERSION
1.1
DATE
07 May 2024
REVISION
1.1

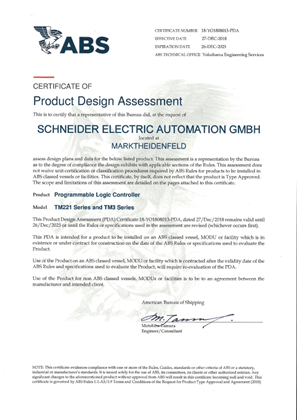

Modicon, TM221, TM3, IACS, ABS, Marine
