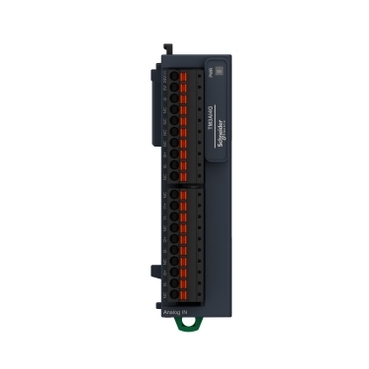

Modicon TM3 Analog input module 4 inputs (spring) 24VDC

Item Number: TM3AI4G

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width23.6 mm

Height90 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480648915	-

Specifications

Design

Range of product	Modicon TM3
Product or component type	analog input module

Physical

Range compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
Type of cable	twisted shielded pairs cable <30 m for input circuit
Local signalling	1 LED green for PWR
Mounting support	top hat type TH35-15 rail conforming to IEC 60715 top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.6 mm
Depth	70 mm
Net weight	0.1 kg
Ip degree of protection	IP20
Marking	CE
Product certifications	CE UKCA RCM EAC cULus cULus HazLoc
Standards	IEC 61131-2
Ambient air temperature for operation	-10...55 °C (horizontal installation) -10...35 °C (vertical installation)
Ambient air temperature for storage	-25...70 °C
Relative humidity	10...95 % without condensation
Standards	IEC 61131-2
Product certifications	CE UKCA RCM EAC cULus cULus HazLoc
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1402009EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Package 2 bare product quantity	9
Package 3 bare product quantity	288
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Analogue input number	4
Analogue input type	current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V
Analogue input resolution	12 bits 11 bits + sign
Permissible continuous overload	13 V, analogue input type: voltage 40 mA, analogue input type: current
Input impedance	<= 50 Ohm >= 1 MOhm
Sampling duration	1 ms
Conversion time	1 ms + 1 ms per channel + 1 controller cycle time
Absolute accuracy error	+/- 0.1 % of full scale at 25 °C +/- 1 % of full scale
Repeat accuracy	+/-0.5 %FS
Cross talk	<= 1 LSB
Electrical connection	10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs
Lsb value	2.44 mV, 0...10 V 4.88 mV, - 10...10 V 4.88 µA, 0...20 mA 3.91 µA, 4...20 mA
Insulation	between input and supply at 1500 V AC between input and internal logic at 500 V AC
Immunity to microbreaks	10 ms
Number of hw interfaces industrial ethernet	0
Number of hw interfaces profinet	0
Number of hw interfaces serial rs232	0
Number of hw interfaces serial rs422	0
Number of hw interfaces serial rs485	0
Number of hw interfaces serial tty	0
Number of hw interfaces parallel	0
Number of hw interfaces wireless	0
Number of hw interfaces usb	0
Number of hw interfaces other	0
Supporting protocol for ethercat	false
Supporting protocol for tcp/ip	false
Supporting protocol for profibus	false
Supporting protocol for can	false
Supporting protocol for interbus	false
Supporting protocol for asi	false
Supporting protocol for knx	false
Supporting protocol for modbus	false
Supporting protocol for data-highway	false
Supporting protocol for devicenet	false
Supporting protocol for suconet	false
Supporting protocol for lon	false
Supporting protocol for profinet io	false
Supporting protocol for profinet cba	false
Supporting protocol for sercos	false
Supporting protocol for foundation fieldbus	false
Supporting protocol for ethernet/ip	false
Supporting protocol for as-interface safety at work	false
Supporting protocol for devicenet safety	false
Supporting protocol for interbus-safety	false
Supporting protocol for profisafe	false
Supporting protocol for safetybus p	false
Supporting protocol for other bus systems	false
Radio standard bluetooth	false
Radio standard wi-fi 802.11	false
Radio standard gprs	false
Radio standard gsm	false
Radio standard umts	false
Io-link master present	false
System accessory	false
Temperature drift	+/- 0.006 %FS/°C
Non-linearity	+/- 0.01 %FS
Dc supply voltage	24 V
Network type	DC
Typical current consumption	35 mA at 5 V DC no load 45 mA at 5 V DC full load 30 mA at 24 V DC
Fieldbus connection over separate bus coupler possible	false
Bearing track assembly possible	false
Wall mounting/direct mounting possible	false
Front installation possible	false
Rack-assembly possible	false
Suitable for safety functions	false
Electromagnetic emission	radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011
Operating altitude	0...2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5-8.4 Hz) on DIN rail 3 gn (f = 8.4-150 Hz) on DIN rail
Shock resistance	15 gn for 11 ms
Performance level according to en iso 13849-1	none
Appendant operation agent (ex ia)	false
Appendant operation agent (ex ib)	false
Certified for ul hazardous location class i	false
Certified for ul hazardous location class ii	false
Certified for ul hazardous location class iii	false
Certified for ul hazardous location division 1	false
Certified for ul hazardous location division 2	false
Certified for ul hazardous location group a (acetylene)	false
Certified for ul hazardous location group b (hydrogen)	false
Certified for ul hazardous location group c (ethylene))	false
Certified for ul hazardous location group d (propane))	false
Certified for ul hazardous location group e (metal dusts)	false
Certified for ul hazardous location group f (carbonaceous dust)	false
Certified for ul hazardous location group g (non conductive dust)	false
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.5 cm
Package 1 width	12.5 cm
Package 1 length	10.5 cm
Package 1 weight	195.0 g
Unit type of package 2	S02
Number of units in package 2	9
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	2.292 kg
Unit type of package 3	P12
Number of units in package 3	288
Package 3 height	80 cm
Package 3 width	105 cm
Package 3 length	125 cm
Package 3 weight	91.24 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	41 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	12.711334999066082
Carbon footprint of the manufacturing phase [a1 to a3]	13 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04393186640076018
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00518087971352722
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	27.321139884613935
Carbon footprint of the use phase [b2, b3, b4, b6]	27 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.47040137511005103
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	40.55198900490436
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	7cc01735-94b8-432b-9a81-f9da4dd7709d
Pvc free	Yes
End of life manual availability	ENVEOLI1402009EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
