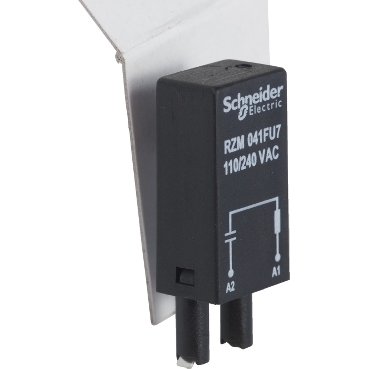

Harmony Electromechanical Relays Protection module RC circuit, for all sockets, 110…240V AC

Home ProductsIndustrialHarmonyProtection module

Harmony Electromechanical Relays Protection module RC circuit, for all sockets, 110…240V AC

Item Number: RZM041FU7

This Harmony RXZ RC circuit has a rated voltage of 110V to 240V AC. It is compatible with RSZ sockets with 1 and 2 changeover contacts. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It can be matched with any relay socket from RSZ range.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

protection module

Product compatibility

  • socket RSZ (1 C/O)
  • socket RSZ (2 C/O)
  • socket RGZ (1 C/O)
  • socket RGZ (2 C/O)

Product destination

RSB relay

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.01 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502012EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

500

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Accessory / separate part category

protection accessories

Accessory / separate part designation

RC circuit

[uc] control circuit voltage

110...240 V AC

[uc] control circuit voltage

110...240 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.000 cm

Package 1 width

1.200 cm

Package 1 length

3.100 cm

Package 1 weight

2.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.000 cm

Package 2 width

7.000 cm

Package 2 length

11.000 cm

Package 2 weight

20.000 g

Unit type of package 3

S01

Number of units in package 3

500

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

1.300 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0273438889

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0002580444

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0000266394

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0002840167

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.0279125894

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
