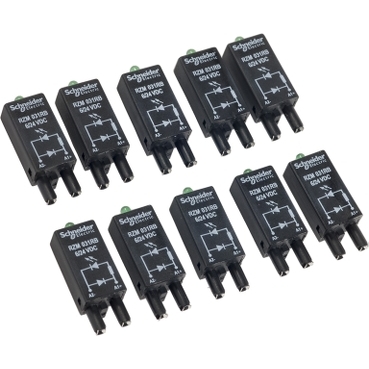

Harmony Electromechanical Relays Protection module diode+green LED, for all sockets, 6…24V DC

Home ProductsIndustrialHarmonyProtection module

Harmony Electromechanical Relays Protection module diode+green LED, for all sockets, 6…24V DC

Item Number: RZM031RB

This Harmony RXZ diode has a rated voltage of 6V to 24V DC. It has a light weight and it is compatible with RSZ socket with 1 and 2 changeover contacts. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It can be matched with any relay socket from RSZ range.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

protection module

Product compatibility

  • socket RSZ (1 C/O)
  • socket RSZ (2 C/O)
  • socket RGZ (1 C/O)
  • socket RGZ (2 C/O)

Product destination

RSB relay

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.004 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502012EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

At least in Europe

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

1500

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Weee label

No

Accessory / separate part category

protection accessories

Accessory / separate part designation

diode + green LED

[uc] control circuit voltage

6...24 V DC

[uc] control circuit voltage

6...24 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.000 cm

Package 1 width

7.000 cm

Package 1 length

2.200 cm

Package 1 weight

1.900 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.000 cm

Package 2 width

7.000 cm

Package 2 length

11.000 cm

Package 2 weight

20.000 g

Unit type of package 3

S02

Number of units in package 3

1500

Package 3 height

15.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

3.250 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0546877778

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0005160889

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0000532789

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0080010971

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0005680333

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.063826276

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
