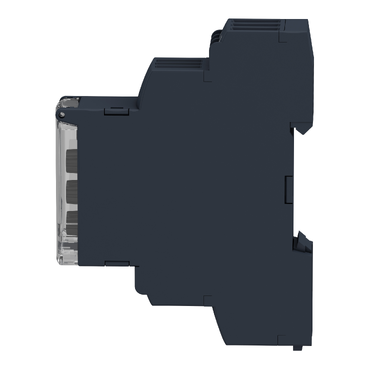

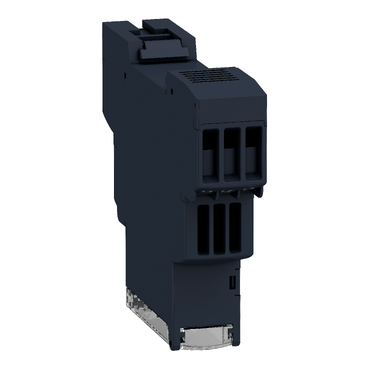

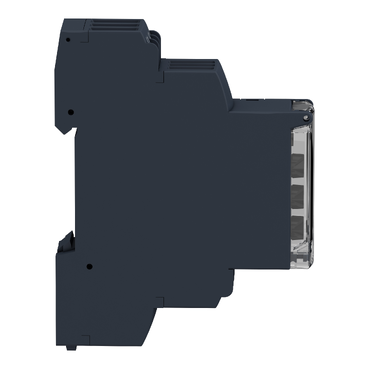

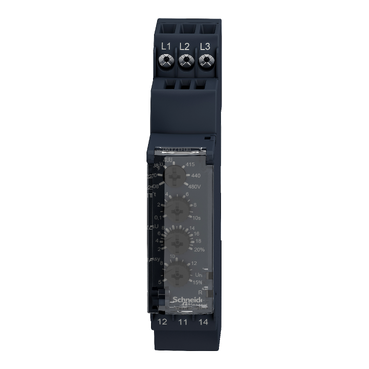

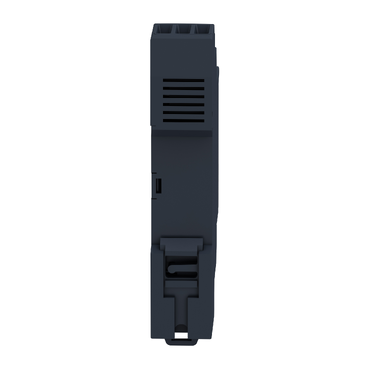

Harmony Control Relays Modular multifunction 3 phase supply Control Relay 5A, 1CO, 183…528V AC
Item Number: RM17TE00
Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Connections - terminals
[in] rated current
Insulation resistance
- > 500 MOhm at 500 V DC conforming to IEC 60255-5
- > 500 MOhm at 500 V DC conforming to IEC 60664-1
Connections - terminals
- screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
- screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
- screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
- screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Local signalling
- LED (green) for power ON
- LED (yellow) for relay ON
Mounting support
Electrical durability
Mechanical durability
Width
Net weight
Control type
Standards
Product certifications
- GOST
- C-Tick
- CSA
- UL
- GL
Marking
Ambient air temperature for storage
Ambient air temperature for operation
Relative humidity
Ip degree of protection
- IP20 (terminals) conforming to IEC 60529
- IP30 (casing) conforming to IEC 60529
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 1 bare product quantity
Relay type
Relay name
Relay monitored parameters
- undervoltage and overvoltage in window mode
- asymmetry
- phase sequence
- phase failure detection
Measurement range
Time delay type
Output contacts
Nominal output current
Contacts type and composition
[uc] control circuit voltage
Product specific application
[us] rated supply voltage
Supply voltage limits
Reset time
Maximum switching voltage
- 250 V AC
- 250 V DC
Switching capacity in va
Minimum switching current
Maximum switching current
- 5 A AC
- 5 A DC
Control circuit voltage limits
Power consumption in va
Control circuit frequency
Measurement voltage limits
Hysteresis
Run-up delay at power-up
Maximum measuring cycle
Threshold adjustment voltage
- 2...20 % of Un selected
- -2...-17 % in the range 220 V AC
- +2...+10 % in the range 480 V AC
- -2...-12 % in the range 208 V AC
Voltage range
Adjustment of asymmetry threshold
Repeat accuracy
- 0.5 % for input and measurement circuit
- 3 % for time delay
Measurement error
- < 0.05 %/°C with temperature variation
- < 1 % over the whole range with voltage variation
Phase failure sensitivity
Response time
[ui] rated insulation voltage
Supply frequency
Operating position
Tightening torque
Housing material
Operating rate
Utilisation category
- AC-12 conforming to IEC 60947-5-1
- AC-13 conforming to IEC 60947-5-1
- AC-14 conforming to IEC 60947-5-1
- AC-15 conforming to IEC 60947-5-1
- DC-12 conforming to IEC 60947-5-1
- DC-13 conforming to IEC 60947-5-1
Safety reliability data
- MTTFd = 502.2 years
- B10d = 470000
Functionality
Compatibility code
Electromagnetic compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4
- emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
- immunity for industrial environments conforming to IEC 61000-6-2
Directives
- 89/336/EEC - electromagnetic compatibility
- 73/23/EEC - low voltage directive
Vibration resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
- 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
Shock resistance
Pollution degree
Overvoltage category
Dielectric test voltage
- 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
- 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
Non-dissipating shock wave
- 4 kV conforming to IEC 60255-5
- 4 kV conforming to IEC 60664-1
- 4 kV conforming to IEC 61000-4-5
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Green premium status for reporting
Sustainable packaging
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Technical illustration
-
Application Notes
-
Declaration of Conformity
-
Certificates (MSDS)
-
eTechPub
DNV Certificate RM17 RM35
VERSION
1.0
DATE
28 Apr 2025
REVISION
1.0
CNCA-CCC RM10 RM17
VERSION
1.0
DATE
19 Sep 2024
REVISION
1.0
UL Listed RM17, RM22, RM35, RM8487
VERSION
1.0
DATE
13 Sep 2024
REVISION
1.0
CSA Certificate RM17, RM22, RM35, RM8487
VERSION
1.0
DATE
13 Sep 2024
REVISION
1.0
Frequently Asked Questions
What is the overvoltage percentage for the zelio phase measurement relays part numbers RM17TU00 and RM17TE00
Hide ShowIssue:
RM17TU00 and RM17TE00 Instruction sheet
Product Line:
Relays and Timers
Environment:
Zelio phase measurement relays
Resolution:
The overvoltage percentage is selectable from 2-20% of the supply voltage Un.
Refer to the attachment
What type of fuse does RM17TE00 accept?
Hide ShowIs the 100mA fast acting fuse the correct to be used with RM17TE00?
Product Line:
Relays and Timers
Environment:
Zelio Control
Cause:
Product Features
Resolution:
Correct fuse is a 1 A fast acting CC or gG fuse on the input. There was an error in the instructions.
