Clipsal Iconic Wiser Connected Smart Dimmer, Zigbee Default Mode ControlLink, 300W, 240V

Vivid White | Clipsal Iconic Wiser Connected Smart Dimmer, Zigbee Default Mode ControlLink, 300W, 240V

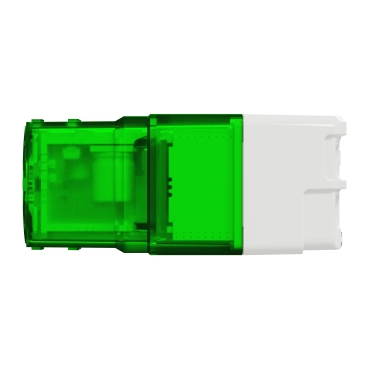

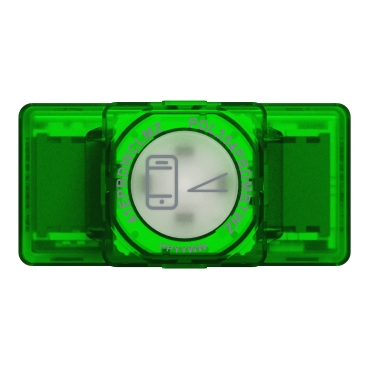

Clipsal Iconic Wiser Connected Smart Dimmer, Zigbee Default Mode ControlLink, 300W, 240V

Item Number: 41EPBDWCLMZ-VW

The Iconic Connected Smart Dimmer is suitable for hard-wired multiway dimming. It can be controlled through ControlLink, the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full home automation control and functions.

Datasheet

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth70 mm

Wiser Technical Catalogue

Download (PDF 7.4MB)

Specifications

Design

Product brand

Clipsal

Range

Iconic

Product or component type

connected dimmer

Device application

light control

Colour tint

vivid white (VW)

Sustainable offer status

Green Premium product

Physical

Range compatibility

  • Wiser hub
  • Clipsal Iconic cover plate
  • Pro Series cover plate

Device presentation

mechanism

Dimmer type

universal

Load type

  • dimmable LED: 0...150 W
  • compact fluorescent lamp: 0...300 W
  • incandescent lamp: 0...300 W at 240 V
  • halogen lamp: 0...300 W at 240 V
  • LV halogen lamps: 0...300 W (electronic transformer)

[Ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • overheating protection
  • short-circuit protection
  • overcurrent protection

Local signalling

LED

Control type

  • push-button
  • by mobile application
  • multi-way control via ControlLink

Wiring configuration

3-wire

Mounting support

grid

Device mounting

flush

Fixing mode

clip-in

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

70 mm

Depth

56 mm

Width

48 mm

Height

22 mm

IP degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP2001003EN

Circularity Profile

ENVEOLI2001003EN

Material

Material

plastic

Others

Number of ways

5 ways

Software name

Wiser by SE App

Maximum number of connected devices

  • 3 (dimmer)
  • 2 (ControlLink module)

Cable length

50 m for ControlLink module

Technology type

  • Zigbee default
  • bluetooth low energy

Memory description

  • backup memory - date and time for 6 h
  • backup memory - program for indefinite period

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

91.0 g

Package 1 Height

4.2 cm

Package 1 width

6.8 cm

Package 1 Length

9.0 cm

Unit Type of Package 2

PAL

Number of Units in Package 2

2304

Package 2 Weight

200.5 kg

Package 2 Height

95.0 cm

Package 2 width

114.0 cm

Package 2 Length

114.0 cm

Unit Type of Package 3

CAR

Number of Units in Package 3

48

Package 3 Weight

4.7 kg

Package 3 Height

22.7 cm

Package 3 width

26.4 cm

Package 3 Length

33.8 cm
Show all specifications

Frequently Asked Questions

hide show

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.


My Wiser switches are not responding to being pressed or control via Wiser by SE, what can I do to troubleshoot the issue?

Begin by taking note of the product/s that are not responding and are they doing anything else different from normal operation? For example, is the backlight flashing in a sequence, does the product respond to three presses and shows the pairing led colouring and what colours are seen. If what is suggested below does not resolve the switches not responding these details can assist the Tech Support team in diagnosing what is occurring.

Once this has been taken note of begin by power cycling your Wiser Hub. This can be done by removing the micro-USB where it connects to the Hub or by turning off the power outlet that supplies power to the Hub. Leave it off for 10 – 15 seconds and then reconnect the Wiser Hub and wait until it completes its reboot procedure at the end of which only 2 LED indicators should be visible on the Wiser Hub. With LEDs at top of Hub - if connected with Ethernet cable (Right and Left Led will turn ON). If connect via WiFi (Middle and Right Led will turn ON)

If this fails to resolve the issue the product failing to respond may need to be power cycled itself. If confidant and able, access the switchboard that has the RCBO’s or Circuit breakers that supply power to the products. Turn the applicable supply off for 10 – 15 seconds and then turn this supply back on.

Note: If uncertain contact your installing electrician for the Wiser system who may advise what is supplying power to the Wiser products. If fuses are installed in your switchboard it is recommended to have your electrician remove the fuse and then re-fit after 10 – 15 seconds. Fuses can be extremely dangerous if not correctly handled by a qualified electrician.

If the switches are still unresponsive contact Tech Support via phone – Australia: 13 73 28 (13 SEAU) New Zealand 0800 652 999, email - techsupport.pz@se.com or via online chat through a link on our support page https://www.clipsal.com/clipsal-support/contact-us or https://www.pdl.co.nz/support


I am getting a message in Wiser by SE ‘Network Unavailable. Please check your phones network settings’ what does this mean for my control of the products?

This message occurs when there is no mobile data connection or a WiFi connection to your device. When this occurs, you will still be able to connect to your Bluetooth switches/dimmers as these just require Bluetooth to be enabled on your device. It will prevent access/control of Zigbee devices and IP Cameras as this requires access to the cloud/internet. Via WiFi, without internet, you may still get control of the Zigbee switches/dimmers but not the IP Cameras.


Can I trigger a moment/scene from a Wiser wall switch?

Yes. When a number of Wiser switches/dimmers are paired with the Wiser Hub, this can be achieved with the use of an Automation and would consist of - Condition: Device status = On, Action = Enable or Disable Automation/Trigger Moment, Delay 1s, Run the device = Off.


Note: Only 1 moment can be used within an automation

How do I swap my Wiser connected switch and dimmer devices from BLE to Zigbee?

To swap from Bluetooth to Zigbee you will need to short press the mechanism 12 times - and allow time for the device to swap modes, this will take roughly 40 seconds. Initially when swapped to Zigbee mode the LED indicator on the mechanism will flash amber indicating it is in pairing mode. If not paired to after roughly 50 seconds this will become solid amber. This amber indicator will remain on until paired with a Hub, the mechanism will function as normal while this indicator is on.

NOTE: Before swapping from Bluetooth/BLE to Zigbee it is strongly recommended that a factory reset be performed on the mechanism before initiating the change.


What do the different colours of LED indication on my Wiser switches mean?

Common colour LED indications on the products -  41E10PBSWM, 41EPBDWCLM, 41E2PBSWM, 41E10PBSWMZ, 41EPBDWCLMZ, 41E2PBSWMZ:

Flashing Amber - Mechanism is in Zigbee and is currently in pairing mode, is not connected to a Hub
Flashing Green - Mechanism is in Zigbee and is in pairing mode, is already connected to a Hub
Solid Green - Mechanism is in Zigbee and is already connected to a Hub that is currently scanning for other mechanisms/devices
Flashing Red and Green - Mechanism is in BLE and is in pairing mode
Solid Amber - Mechanism is in Zigbee mode and not connected to a Hub
