Clipsal Pro Series

Sockets & Switches

Jump to... Watch video Pro Series builder Features
Pro Series range

Specifically designed for commercial buildings

See the range

Clipsal Pro Series is the range of sockets and switches designed specifically for commercial buildings such as retail, offices, schools and public spaces.Pro-Series-Pictograms.png

  • Permanent circuit identification with large integrated windows.
  • Secured skin which can only be removed with a tool.
  • Large terminals for easy termination.
  • Aesthetically appealing with fresh, clean lines and beveled edges to deflect impacts, and sockets rated at IK08 for impact resistance.
  • Available in white and black, the switches and sockets will blend into any commercial environment.



Explore the Pro Series range...

Explore Range

Build & customise Pro Series

Select product
Choose configuration
Create a Bill of Materials
Download or Share

It's that simple!

Build now

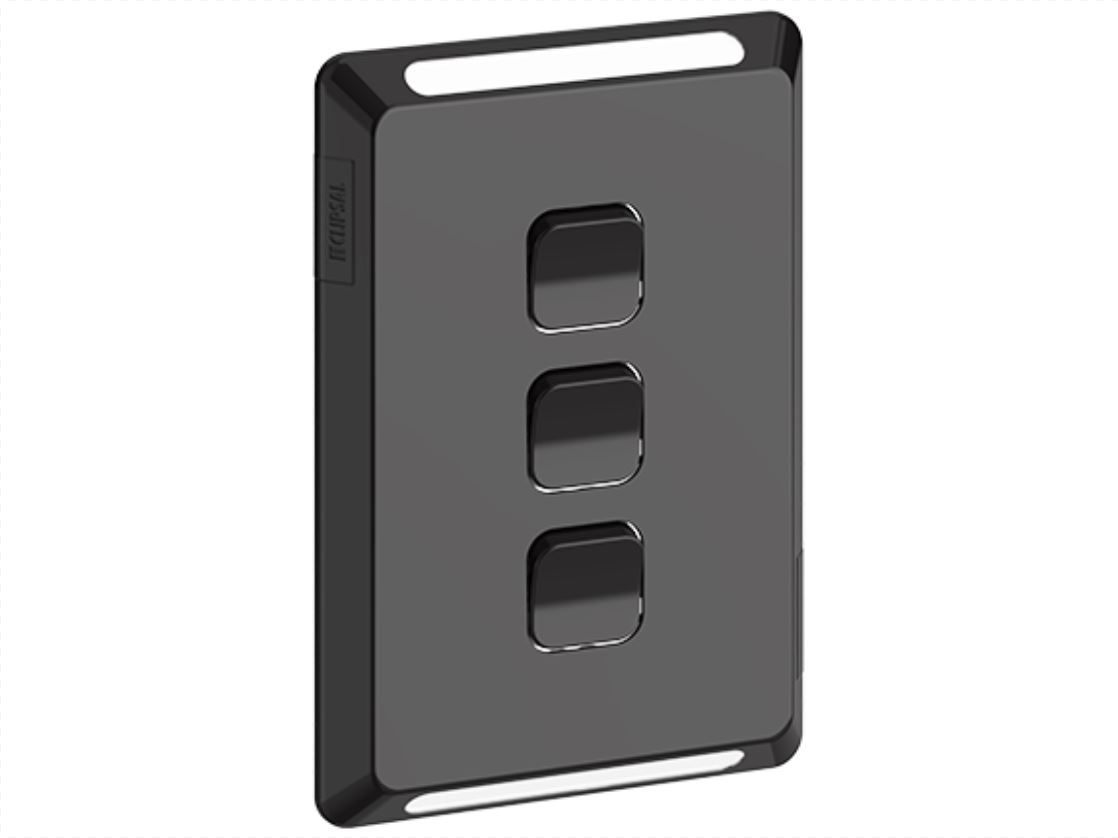

Pro Series Switch cover and mechs
Pro Series Black Skin
Pro Series White Skin
Pro Series Switch cover and mechs
Pro Series Black Skin
Pro Series White Skin

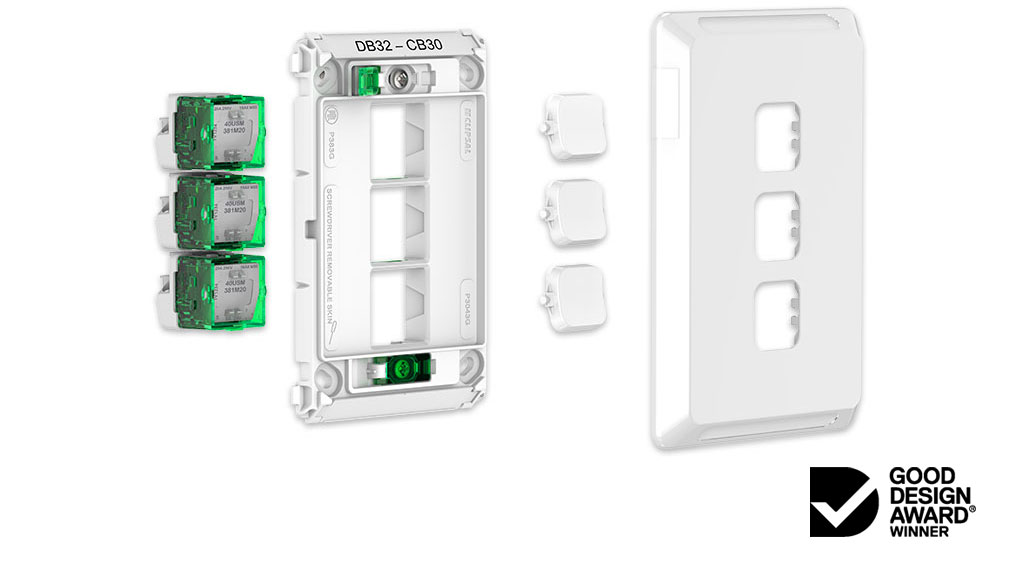

Flexible Switch Options

Pro Series Switches feature 40 series mechanisms and modules, from 16AX mechanisms as standard through to connected dimmers, switches and C-Bus mechanisms.

The switches also feature locking bars to reduce risk of module pushbacks.

The Pro Series range recently won a Good Design Award, bringing real innovation into the commercial wiring device market.

Range of Colours

Pro Series products come assembled in gloss white, and skins in gloss black and blank grids are available separately. Double GPO socket skins are also available in red, dark blue and green.

Clear and Protected Circuit ID

With Pro Series, circuit identification labels are protected behind a clear window. No longer can circuit identifiers be damaged, wiped off, or made unreadable. The labels adhere to panels designed into the grids, so even if skins are inadvertently swapped during maintenance, the labels will always display the correct circuit identification. There are two windows on opposite edges, so it can be visible in any situation.

White Clipsal Pro Series Dual Socket
Clipsal Pro Series USB Dual Socket
Clipsal Pro Series Black Dual Socket
White Clipsal Pro Series Dual Socket
Clipsal Pro Series USB Dual Socket
Clipsal Pro Series Black Dual Socket

Secure Skins

Pro Series comes with skins that clip on securely and cannot be removed by hand. Fixing them is easy and fast – you simply click them onto the grid. No screws are needed. Special notches on the skins allow quick and easy removal with a screwdriver.

USB Charging Options

Pro Series has USB charging options including double A type, as well as A+C to suit the newest smartphones. With the modular design, the charging options can be fitted into sockets with extra switch options, as well as switch plates.

Tough Sockets

Pro Series sockets are robust, rated at IK08 for impact resistance. This means they can cope with bumps from trolleys and other equipment, which can often result in cracked or broken skins.

Pro Series Advanced USB Charging Modules
Pro Series Data and AV Options
Pro Series Connected Devices for Smart Buildings
Pro Series Advanced USB Charging Modules
Pro Series Data and AV Options
Pro Series Connected Devices for Smart Buildings

Advanced USB Charging Modules

The twin USB A+A and A+C charger modules can be included into sockets with extra switch apertures or into switch plates. With advanced management functions, they optimally charge your USB powered device and feature in-built protection mechanisms.

Data and AV Options

Pro Series matches the extensive range of network connectors available from Clipsal. This range includes from Cat 5 to Cat 6A, as well as HDMI, AV connectors and RJ11 for any commercial application.

Connected Devices for Smart Buildings

Pro Series also features many smart devices. There are connected switches and dimmers with BLE connectivity, as well as C-Bus master and slave modules to interface to lighting and building management systems.

Find out more about Pro Series

Explore Range
