DALIcontrol Lighting Control System Dcdalcip 250 2 Power Supply to Pc Usb Programming Cable
Item Number: DCCABKIT6

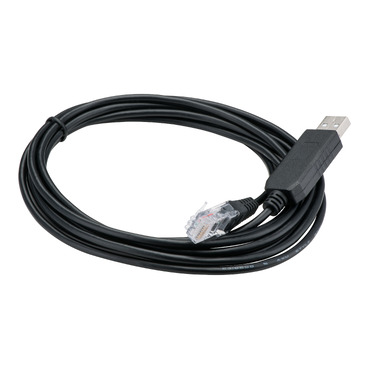

Program your DALI Control system with your computer using this Power Supply to PC USB programming cable.
Datasheet
Specifications
Design
| Range | Clipsal |
|---|---|
| Product brand | Clipsal |
Physical
| Reach free of svhc | Yes |
|---|---|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2403023_V1 |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Other technical guide
-
Specification Guide
-
Application Notes
-
Declaration of Conformity (Sustainability)
-
Software - Data Library
-
Software - Release

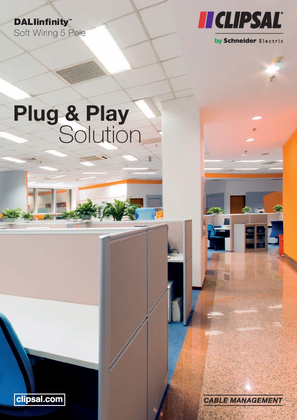

Plug & Play Solution - DALIinfinity Soft Wiring 5 Pole, 24678
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

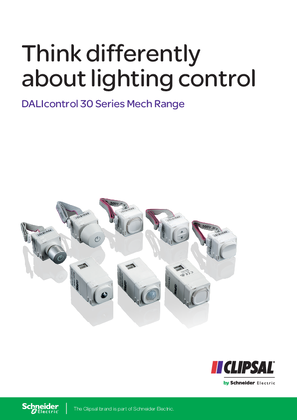

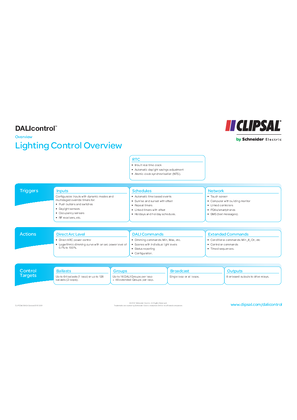

Think differently about lighting control. DALIcontrol 30 Series Mech Range, 151007
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DALIcontrol - Commercial Offices and Emergency and Exit Light Monitoring, 24576
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DCCABKIT6 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DCCABKIT6 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DCCABKIT6 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DCCABKIT6 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DCCABKIT6 REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DCCABKIT6 REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
DALI Buildings DALIBuildings-V2.2.1 with SQL Server and Release Notes
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
EmergencyMonitor V2.1
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
Energy Controller Payback Analysis software V1.0.0
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALISimpleWizard V1.3.0.82
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALISimpleWizard V1.0.0.71
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALISimpleWizard V1.1.0.77
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALISimpleWizard V1.2.0.78
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Control AutoCAD Templates V1.0.2
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALICommissioningWizard V2.3.0.33
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.1.4
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.1.2
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.1.3
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.1.0
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.1.1
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.6
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.7
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.8
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.9
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Control Visio Stencils V1.0.2
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.10
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.4
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALIBuildings V2.0.5
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings with SQL Server and Release Notes
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
C-Bus Visio Stencils V1.0.2
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
C-Bus AutoCAD Templates V1.0.2
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
BuildingMonitor V6.0.472
VERSION
1.0
DATE
21 Jul 2023
REVISION
1.0
DALI Buildings V2.2.3 Software Release notes
VERSION
2.0
DATE
09 Jun 2022
REVISION
2.0
Frequently Asked Questions
How to change a wrong USB Driver on DCCABKIT6
Hide ShowSuppose the following happens when connecting the DCCABKIT6 cable between Laptop and DALIcontrol Duo Mode 3 Power Supply (DCDALCIP250-2).
In Device Manager find something like
The cable has likely been used with some other product that has recognised the FDTI chip and installed this LibUSB driver which is not recognised by the Simple Wizard which sees a different device ID
BEFORE GOING FURTHER REALISE THAT ONCE COMPLETE THE OTHER DEVICE WILL NO LONGER FIND ITS REQUIRED DRIVER.
Right click on this entry in the Device Manager and select Properties from the menu
And proceed to the Driver tab
…and select <Update Driver>
… and Select <Browse my computer for Drivers>
Select <Let me pick from a list of available drivers on my computer>
With this next Dialog un-tick the Show compatible hardware
In this case you should see Manufacturer FTDI and Select from the Model USB Serial Port which should start the install finishing with…
From here you should now be able to connect.
It is important to note that when connecting to the DALIcontrol Duo Mode 3 Power Supply (DCDALCIP250-2) with the DCCABKIT6 programming cable and running DCBMWizard or SimpleWizard that the power supply be in mode 1. To achieve this on the DCDALCIP250-2 press and hold the <ON A> button and momentarily press the <TEST A> button. The Line A indicator will single pulse 5x to indicate the mode.
If there is a compatible driver installed you can try tick Show Compatible hardware, then try selecting one of the drivers below.
If there are no drivers to be found on the Computer in question it is then possible to download the software by going to the following on your web browser https://support.arduino.cc/hc/en-us/articles/4411305694610-Install-or-update-FTDI-drivers and follow the instructions laid out.
Also go to https://ftdichip.com/drivers/ and follow up with https://ftdichip.com/document/installation-guides/

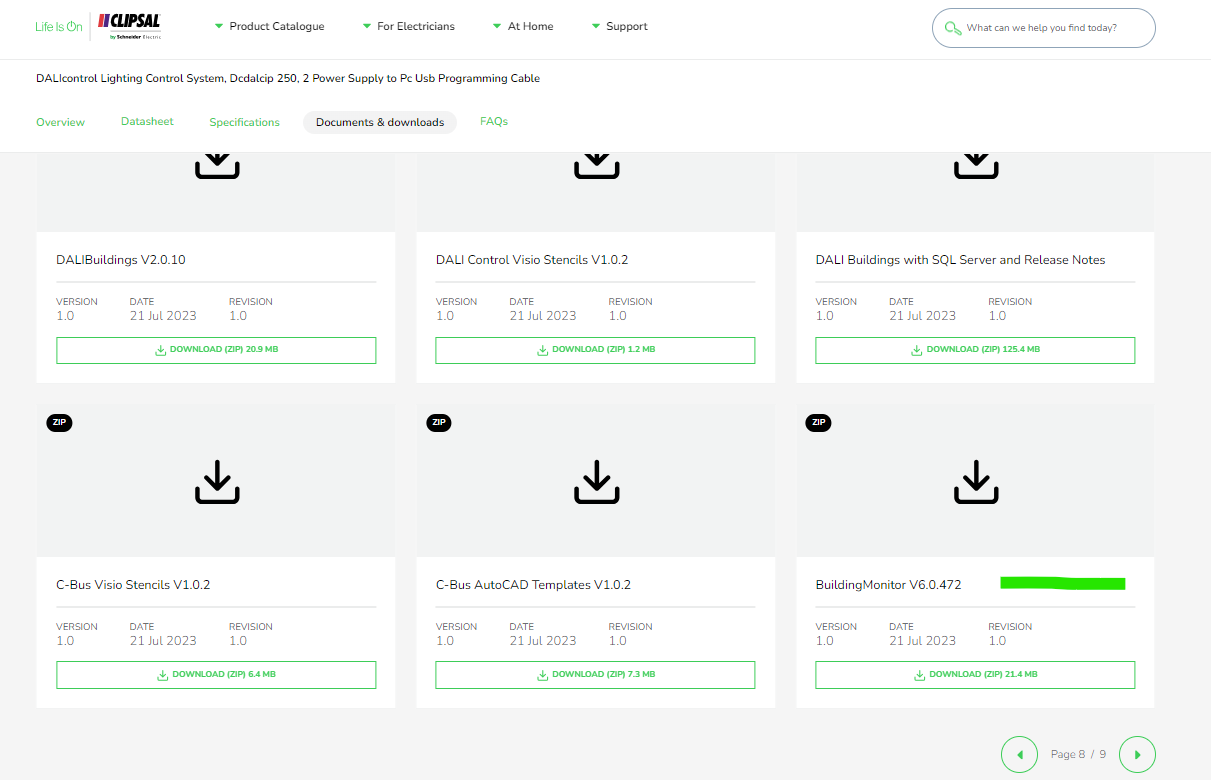

Where to download software for the dali building monitor software package?
Hide Showhttps://download.schneider-electric.com/files?p_Doc_Ref=BuildingMonitor-V6.0.472
Search for DCDALCIP250-2 or DCCABKIT6 in Google
Select document & download and tick software - Release
Click through the pages and look for Building Monitor V6.0.472
DCBMWizard, why can I only scan line A on each DALI power supply DCDALCIP250-2 using the DCCABKIT6 programming cable?
Hide ShowConfirmed that DCBMwizard can only connect to LineA
To connect to LineB
1) You can remove LineA and move LineB to LineA. Once commission is completed you can rewire it back.
2) or having a secondary DCCABKIT6 programming cable as line B is powered by line A
