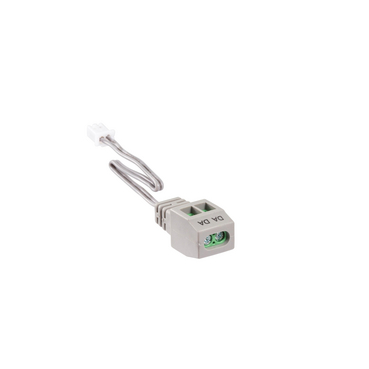

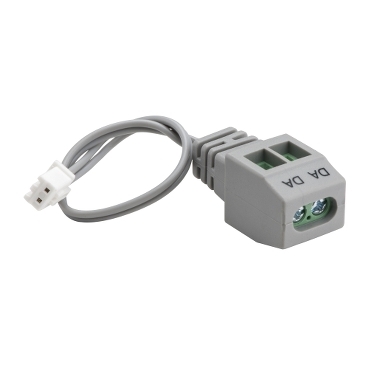

DALIcontrol Lighting Control System, 30 Mech Single Cable

Item Number: DCCABKIT4

DALIcontrol’s soft wiring five-pole system provides all power and DALIcontrol requirements in one convenient five-core cable. This single cable provides connected from the DALI Control 30 Mech to the DALI Control system.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product brand

Clipsal

Physical

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.0 cm

Package 1 width

3.5 cm

Package 1 length

9.0 cm

Package 1 weight

9.0 g

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0
Show all specifications
