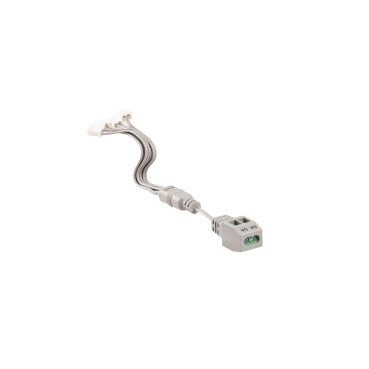

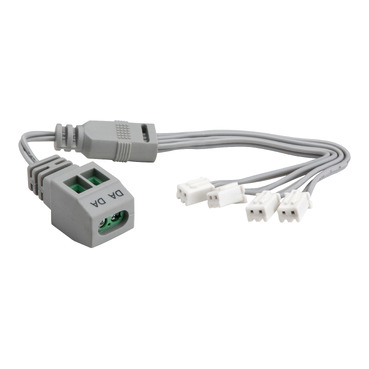

DALIcontrol Lighting Control System, 30 Mech Quad Cable

Item Number: DCCABKIT5

1 PCE 0

DALIcontrol’s soft wiring five-pole system provides all power and DALIcontrol requirements in one convenient five-core cable. This quad cable provides connected from the DALI Control 30 Mech to the DALI Control system.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554760236	-

Specifications

Design

Range	Clipsal
Product brand	Clipsal

Physical

Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2403023_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Weee exclusion rationale	Product/component not in scope – not electric/electronic device
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.5 cm
Package 1 width	4.0 cm
Package 1 length	6.0 cm
Package 1 weight	14.0 g
Total lifecycle carbon footprint	35 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.14281346153846153
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0026780384615384613
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0012644961538461536
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	35.089999999999996
Carbon footprint of the use phase [b2, b3, b4, b6]	35 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.031421923076923076
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	35.26817791923076
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
