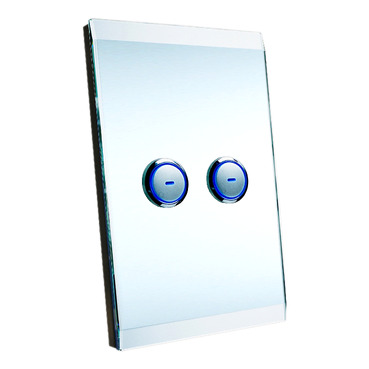

C-Bus Control and Management System Wall Plate Saturn, Key Input Unit, 2 Key, A Series

C-Bus Control and Management System Wall Plate Saturn, Key Input Unit, 2 Key, A Series | Pure White

Item Number: 5082NL-PW

Datasheet

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Depth icon

Depth28 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range

C-Bus

Product or component type

switch

Device application

control

Physical

Device presentation

basic element with full cover plate

Number of gangs

2 gangs

Control type

push-button

Provided equipment

  • fascia plate
  • body switch
  • push-button cap

[ue] rated operational voltage

15...36 V DC

[in] rated current

22 mA

Communication network type

C-Bus 50

Switch function

  • load switching
  • dimmer
  • time switch function
  • scene control
  • roller shutter
  • bell push switch
  • curtain

Local signalling

LED (blue/orange) for status

Connections - terminals

terminal block - 0.2-1.3 mm² (AWG 24...AWG 16)

Mounting support

wall box

Fixing center

84 mm

Width

75 mm

Height

116 mm

Depth

28 mm

Net weight

54 g

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 % non-condensing

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120702EN

Circularity profile

ENVEOLI1207002EN

Material

Material

plastic

Others

Commercial status history

  • SESA301466
  • Tue Jan 07 08:32:00 EST 2025
  • From Import Local
  • From 14 to 18

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Package 1 bare product quantity

1

Product name

C-Bus Saturn A Series

Input impedance

50 kOhm at 1-1 kHz

Isolation voltage

3.75 kV from C-Bus to mains

Time delay range

5 s

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.5 cm

Package 1 width

10.7 cm

Package 1 length

15.0 cm

Package 1 weight

249.0 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

17.5 cm

Package 2 width

28.0 cm

Package 2 length

35.0 cm

Package 2 weight

3.974 kg

Unit type of package 3

PAL

Number of units in package 3

280

Package 3 height

122.5 cm

Package 3 width

60.0 cm

Package 3 length

80.0 cm

Package 3 weight

121.272 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.544537396306336

Global warming ; total life cycle​

4 kg CO2 eq.

Minimum percentage of recycled plastic content

0
