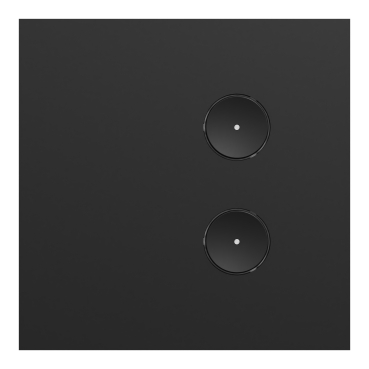

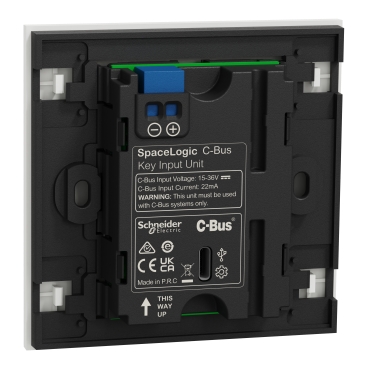

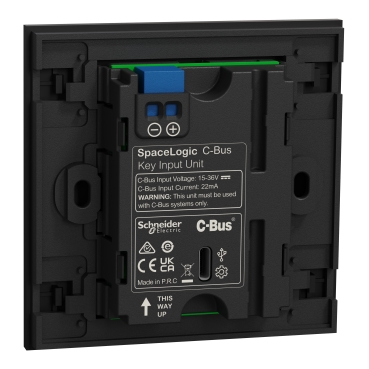

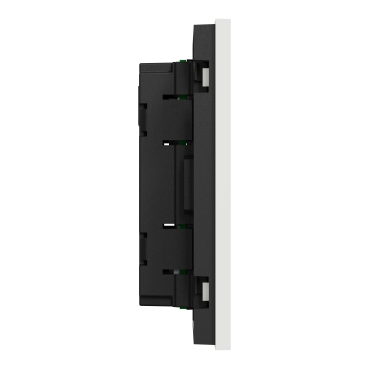

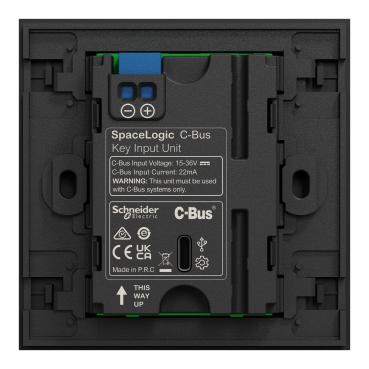

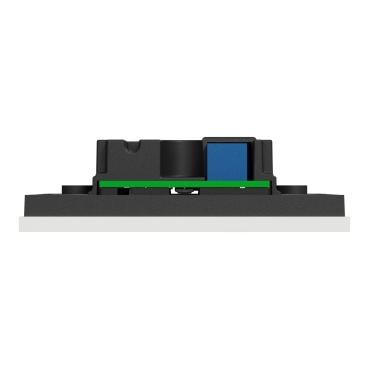

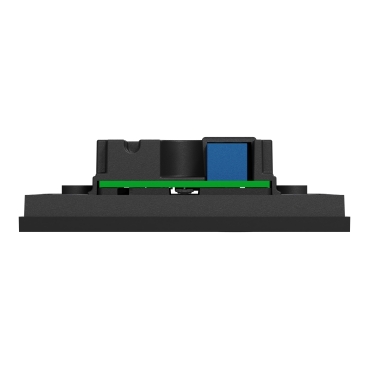

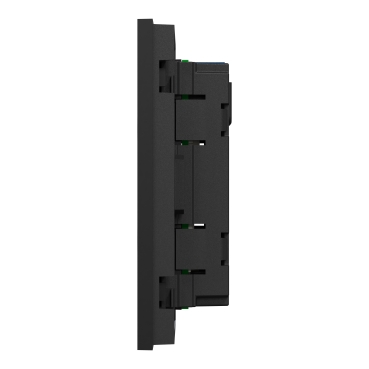

C-Bus SpaceLogic Wall Plate Saturn Zen, E-Series, Key Input unit, 2 keys

Home ProductsSmart Home SolutionsC-BusSpaceLogic Wall Plate

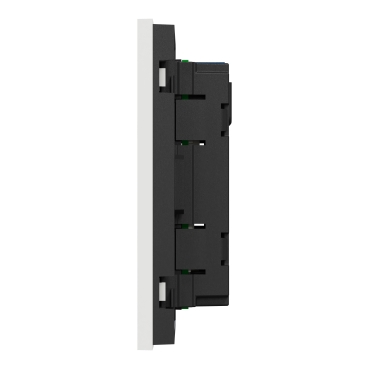

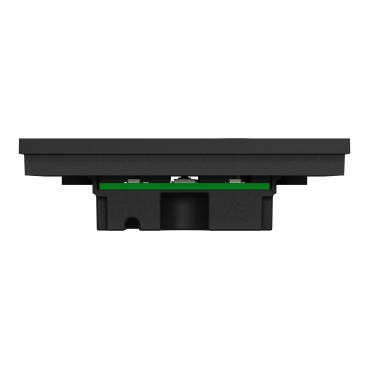

C-Bus SpaceLogic Wall Plate Saturn Zen, E-Series, Key Input unit, 2 keys | Zen Black

Item Number: ER5042ZB

Online Learning

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width87 mm

Height icon

Height87 mm

Depth icon

Depth25 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Schneider Electric

Range

SpaceLogic C-Bus

Product or component type

switch

Device application

control

Physical

Device presentation

complete product

Number of gangs

2 gangs

Control type

push-button

Provided equipment

  • fascia plate
  • body switch
  • push-button cap

[ue] rated operational voltage

15...36 V DC

[in] rated current

22 mA

Communication network type

C-Bus

Switch function

  • load switching
  • dimmer
  • time switch function
  • scene control
  • roller shutter
  • bell push switch
  • curtain
  • roller blind
  • toggle

Local signalling

LED (red, green and blue) for status

Connections - terminals

terminal block - 0.2-1.3 mm² (AWG 24...AWG 16)

Mounting support

wall-mount

Fixing center

60.3 mm

Width

87 mm

Height

87 mm

Depth

25 mm

Net weight

39 g

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 % non-condensing

Product certifications

  • RCM
  • CE
  • UKCA

Reach free of svhc

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2403010EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

plastic

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Product name

C-Bus Saturn Zen E Series

Input impedance

50 kOhm at 1-1 kHz

Isolation voltage

3.75 kV from C-Bus to mains

Main colour tint

zen white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12 cm

Package 1 width

75 cm

Package 1 length

16 cm

Package 1 weight

179 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

16 cm

Package 2 width

225 cm

Package 2 length

345 cm

Package 2 weight

2.15 kg

Total lifecycle carbon footprint

74 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

19.6549019607843

Carbon footprint of the manufacturing phase [a1 to a3]

20 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0234068823529411

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.180789999999999

Carbon footprint of the installation phase [a5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

53.731

Carbon footprint of the use phase [b2, b3, b4, b6]

54 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.223490274509803

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

73.813589117647

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

ENVEOLI2403010EN

Take-back

No

Warranty (in months)

18
