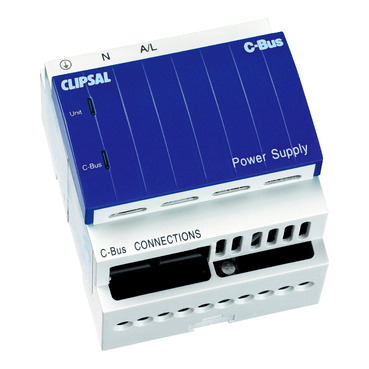

C-Bus Control and Management System, Power Supply, DIN Rail Mounted, 250V, 350mA

C-Bus Control and Management System, Power Supply, DIN Rail Mounted, 250V, 350mA

Item Number: 5500PS

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Product or component type

power supply

Device application

power supply

Sustainable offer status

Green Premium product

Physical

Output current

<= 350 mA

Local signalling

LED

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Others

Package 1 bare product quantity

1

Secondary voltage

32...39 V DC

[us] rated supply voltage

240 V AC 50 Hz

Supply circuit type

AC

Number of outputs

1

Number of modules

4

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.77 cm

Package 1 width

11.164 cm

Package 1 length

15.586 cm

Package 1 weight

290.0 g

Unit type of package 2

CAR

Number of units in package 2

8

Package 2 height

23.1 cm

Package 2 width

24.6 cm

Package 2 length

34.5 cm

Package 2 weight

2.941 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

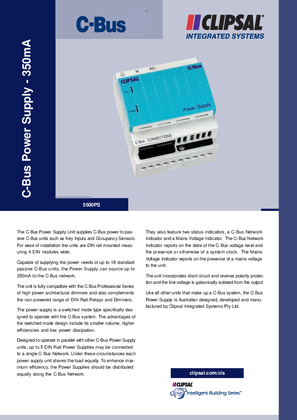

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Other technical guide

  • Environmental Disclosure

  • End of Life Manual

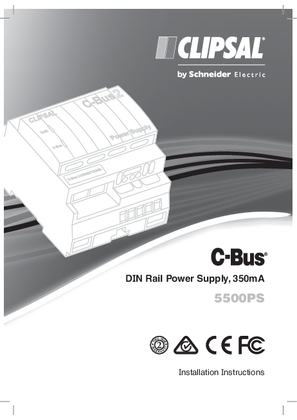

  • Installation Instruction

  • Operating Manuals

  • Specification Guide

  • Application Notes

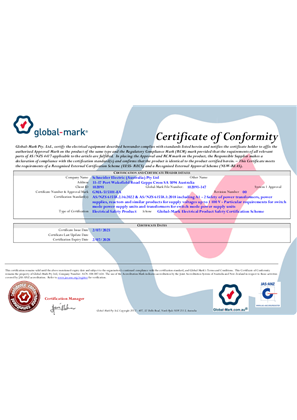

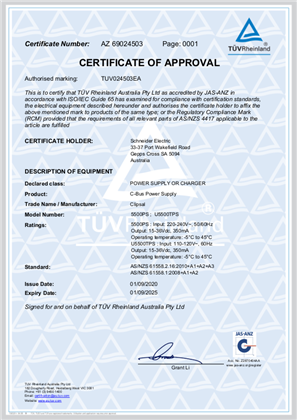

  • Declaration of Conformity

  • Certificates (MSDS)

  • Software - Release

Frequently Asked Questions

hide show

What happen when Exceeding C-Bus 2 Amp rating per network?

Potential issues caused by having >2A limit are:

Damage to the C-Bus cat-5 cable if a dead short were to occur
Impedance causing unstable communications
Potential stressing of power supply units

The C-Bus Cat-5 (cable) must not carry current in excess of 2 A (this is the Maximum C-Bus Current per Network).

Either reduce the number of C-Bus power supply or split the network by using a network bridge(5500NB) in this case.

C-Bus Hardware Installation.pdf

C-Bus™ Products Training Course Training Guide.pdf

4

5




What code is a power supply for a 5502DAL DALI gateway?

The part number for a power supply to power the DALI gateway is a 5500PS.
Some of the key features are:
  • 3,750 V RMS AC isolation mains/C-Bus
  • 3 Seconds Warm-up time
  • High efficiency switched mode power supply design
  • DIN Rail mounted
Please go to the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=5500PS&itemno=5500PS&backto=/search?q=5500PS&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=5500PS&itemno=5500PS&backto=%2Fsearch%3Fq%3D5500PS
