C-Bus Control and Management System, PC Interface, Housed in A 4M, Din Rail Enclosure, USB

C-Bus Control and Management System, PC Interface, Housed in A 4M, Din Rail Enclosure, USB

Item Number: 5500PCU

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Product or component type

interface module

Device application

connection

Physical

Communication port protocol

USB

Mounting support

DIN rail

Local signalling

LED

Ip degree of protection

IP20

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Number of modules

4

Communication port support

USB

Transmission rate

9600 bauds

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.2 cm

Package 1 width

12.7 cm

Package 1 length

16.5 cm

Package 1 weight

286.0 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

22.0 cm

Package 2 width

30.0 cm

Package 2 length

43.5 cm

Package 2 weight

3.285 kg

Unit type of package 3

P12

Number of units in package 3

240

Package 3 height

80.0 cm

Package 3 width

120.0 cm

Package 3 length

110.0 cm

Package 3 weight

87.84 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

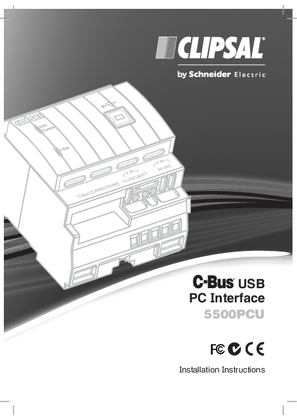

  • Installation Instruction

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Declaration of Conformity

  • Software - Release

  • Software - Data Library

Frequently Asked Questions

hide show

What is new of the C-Bus Toolkit 1.16.4?

What is new of the C-Bus Toolkit 1.16.4?

C-Bus Toolkit 1.16.4 was released on 08/09/2023

C-Gate 2.11.11
This release includes C-Gate 2.11.11. For further details, refer to the C-Gate release notes later in this document.

Other Fixes
  • • SDQI-120: Toolkit crashes when adding a new network.

C-Bus Toolkit 1.16.4 can be downloaded from this link
https://www.se.com/ww/en/product-range/2216-spacelogic-cbus-home-automation-system/?parent-subcategory-id=88010&filter=business-5-residential-and-small-business#software-and-firmware


Where to download the C-Bus Toolkit 1.16.3?

Where to download the C-Bus Toolkit 1.16.3?
Release Date: 29/06/2023
Version: V1.16.3
Reference: C-Bus_Toolkit_V1.16.3
C-Gate: 2.11.10
Operating Systems:  Windows 10, Windows 7, Windows 8, Windows Vista, Windows x86 / x64

It contains eDLT firmware version: V1.7.0

https://www.se.com/au/en/download/document/C-Bus_Toolkit_V1.16.3/


Where to download the latest C-Bus Commissioning Software from?

The latest C-Bus Commissioning Software including SpaceLogic C-Bus Toolkit, C-Bus PICED and SpaceLogic C-Bus Commissioning Software (used to commission the C-Bus DALI 2 Gateway) can be found in the Schneider EcoStruxure Exchange[1]

[1] - https://ecoxpert.se.com/en/spacelogic-c-bus/software-and-firmware/software#tab/documents

Which USB-RS232 adaptor do I need for C-Bus?

Issue:
User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device.  The user cannot establish a connection or open the network.

Product Line:
Clipsal C-bus 5500PC Serial Interface

Environment:
C-Bus Toolkit

Cause:
Most PC's today do not have built in RS-232 ports.  The PC must use a USB to RS-232 adaptor device or cable.    It has been our experience that some of these USB to RS232 adaptors work better than others.  The reasons for these differences is typically driver related.

Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI.   For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI.

Resolution:
It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus these will need to contain the FTDI Chip set.
Cheaper brands on the market do not use this chip and will not work correctly with the Serial Library used by C-Bus Software.

Google Search: USB-RS232 FTDI

This will show results from suppliers such as Element14, RS Components etc, we've had success with these adaptors in the past.


An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following:
USB PC Interface 5500PCU
Pascal Automation Controller 5500PACA
Ethernet Network Interface 5500CN2
Mark II Black and White Touch Screens

Clipsal Cbus RS232 PC Interface (PCI) will not connect to PC (USA model)

Issue:
User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device.  The user cannot establish a connection or open the network.

Product Line:
Clipsal C-bus (SLC series US model)

Environment:
C-Bus Toolkit

Cause:
Most PC's today do not have built in RS-232 ports.  The PC must use a USB to RS-232 adaptor device or cable.    It has been our experience that some of these USB to RS232 adaptors work better than others.  The reasons for these differences is typically driver related.

Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI.   For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI.

Resolution:
It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus.  Below is a list of adaptors that we had successful experiences with C-Bus RS-232 PCI device.

Date of Functional Verification:  16May2014
Manufacturer:  Gigaware
Product Name:  6ft USB-A to Serial Cable
Product Model Number:  2603487
Purchase Date:  15May2014 from RadioShack, $25
Computer used with:   HP Laptop running Windows 7 64-bit


An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following:
USB PC Interface SLC5500PCU
Pascal Automation Controller SLC5500PACA
Ethernet Network Interface SLC5500CN2
Mark II Black and White Touch Screens
